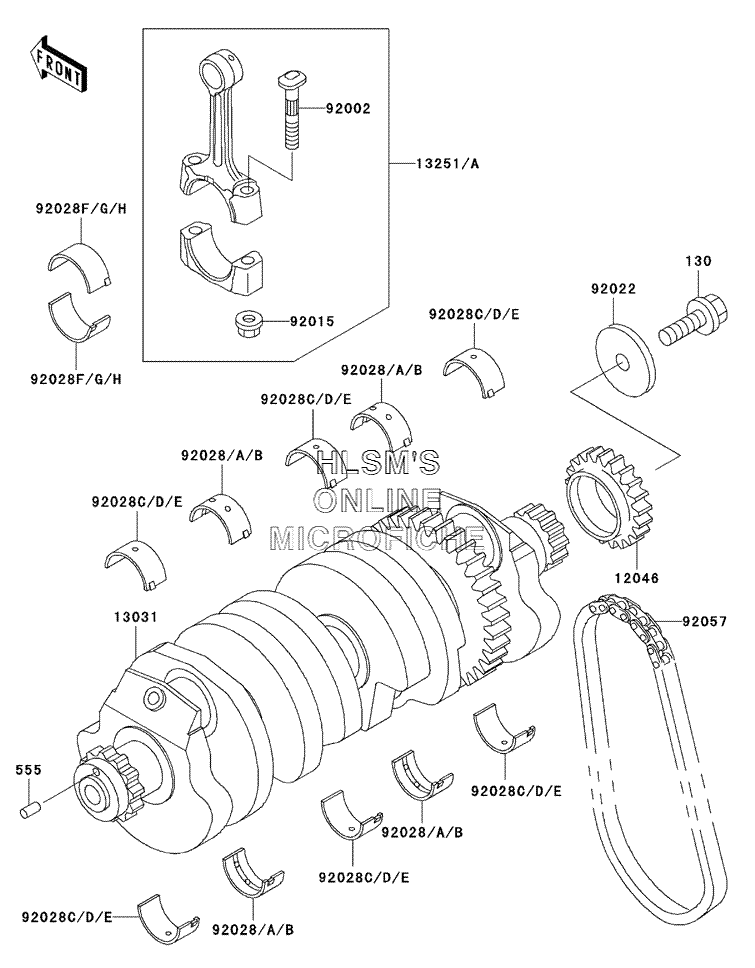

CRANKSHAFT для Kawasaki Concours - 2003 года выпуска

  • №
    Артикул
    Название
  • 130
    130G0825 BOLT, FLANGED, 8X25
    BOLT, FLANGED, 8X25
  • 555
    555A0412 PIN, SPRING
    PIN, SPRING
  • 12046
    12046-1084 SPROCKET, 21T
    SPROCKET, 21T
  • 13031
    13031-1334 CRANKSHAFT, COMP
    CRANKSHAFT, COMP
  • 13251
    13251-1075-KK ROD, ASSY, CONNECTING, K
    ROD, ASSY, CONNECTING, K
  • 13251A
    13251-1075-LL ROD, ASSY, CONNECTING, L
    ROD, ASSY, CONNECTING, L
  • 92002
    92002-1678 BOLT, CONNECTING ROD, 9MM
    BOLT, CONNECTING ROD, 9MM
  • 92015
    92015-1559 NUT, CONNECTING ROD
    NUT, CONNECTING ROD
  • 92022
    92022-1633 WASHER, 8.5X36X4
    WASHER, 8.5X36X4
  • 92028
    92028-1100 BUSHING, CRANKSHAFT (BLUE)
    BUSHING, CRANKSHAFT (BLUE)
  • 92028A
    92028-1101 BUSHING, CRANKSHAFT (BLACK)
    BUSHING, CRANKSHAFT (BLACK)
  • 92028B
    92028-1102 BUSHING, CRANKSHAFT (BROWN)
    BUSHING, CRANKSHAFT (BROWN)
  • 92028C
    92028-1272 BUSHING, CRANKSHAFT (BLUE)
    BUSHING, CRANKSHAFT (BLUE)
  • 92028D
    92028-1273 BUSHING, CRANKSHAFT (BLACK)
    BUSHING, CRANKSHAFT (BLACK)
  • 92028E
    92028-1274 BUSHING, CRANKSHAFT (BROWN)
    BUSHING, CRANKSHAFT (BROWN)
  • 92028F
    92028-1407 BUSHING, CONNECTING ROD (BLUE)
    BUSHING, CONNECTING ROD (BLUE)
  • 92028G
    92028-1408 BUSHING, CONNECTING ROD (BLACK)
    BUSHING, CONNECTING ROD (BLACK)
  • 92028H
    92028-1409 BUSHING, CONNECTING ROD (BROWN)
    BUSHING, CONNECTING ROD (BROWN)
  • 92057
    92057-1209 CHAIN, GENERATOR
    CHAIN, GENERATOR
