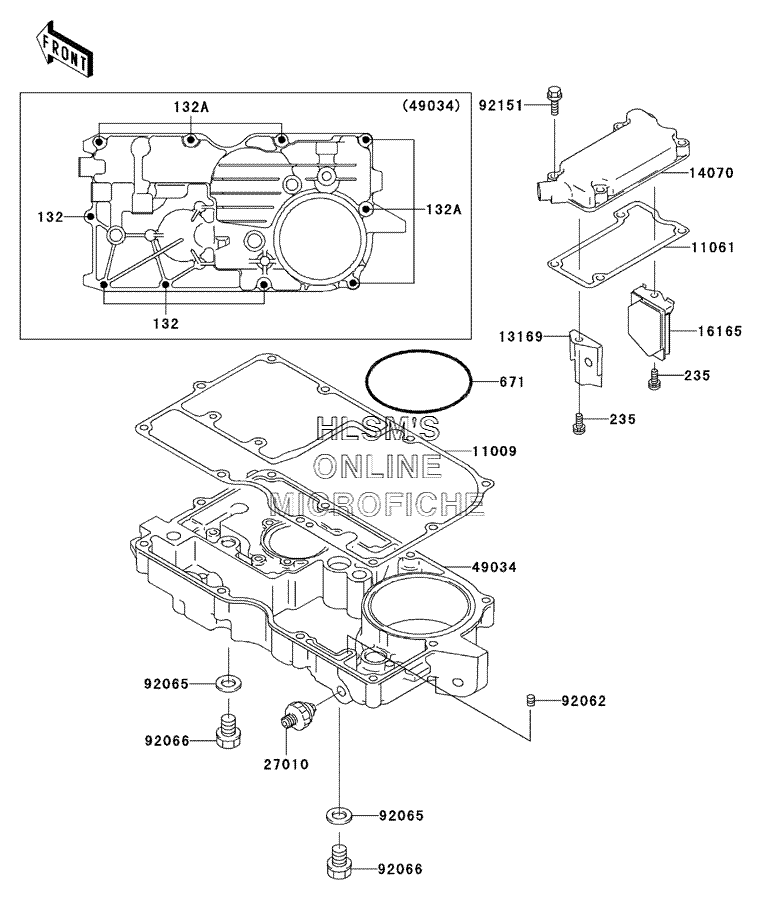

BREATHER COVER W/ OIL PAN для Kawasaki Concours - 2003 года выпуска

  • №
    Артикул
    Название
  • 132
    132J0625 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
  • 132A
    132J0640 BOLT, FLANGED, SMALL, 6X40
    BOLT, FLANGED, SMALL, 6X40
  • 235
    235B0610 SCREW, PAN, WP, CROS
    SCREW, PAN, WP, CROS
  • 671
    671B2590 O-RING, 90MM
    O-RING, 90MM
  • 11009
    11009-1981 GASKET, OIL PAN
    GASKET, OIL PAN
  • 11061
    11061-1102 GASKET, BREATHER BODY
    GASKET, BREATHER BODY
  • 13169
    13169-1967 PLATE, BREATHER
    PLATE, BREATHER
  • 14070
    14070-1086 BODY, BREATHER
    BODY, BREATHER
  • 16165
    16165-1053 SEPARATOR, OIL
    SEPARATOR, OIL
  • 27010
    27010-1313 SWITCH, OIL PRESSURE
    SWITCH, OIL PRESSURE
  • 49034
    49034-1065 PAN, OIL
    PAN, OIL
  • 92062
    92062-1080 NOZZLE, 6X8 (YELLOW)
    NOZZLE, 6X8 (YELLOW)
  • 92065
    92065-097 GASKET, 12X22X2, DRAIN PLUG
    GASKET, 12X22X2, DRAIN PLUG
  • 92066
    92066-1174 PLUG, OIL DRAIN, 12X15
    PLUG, OIL DRAIN, 12X15
  • 92151
    92151-1546 BOLT, 6X25
    BOLT, 6X25
