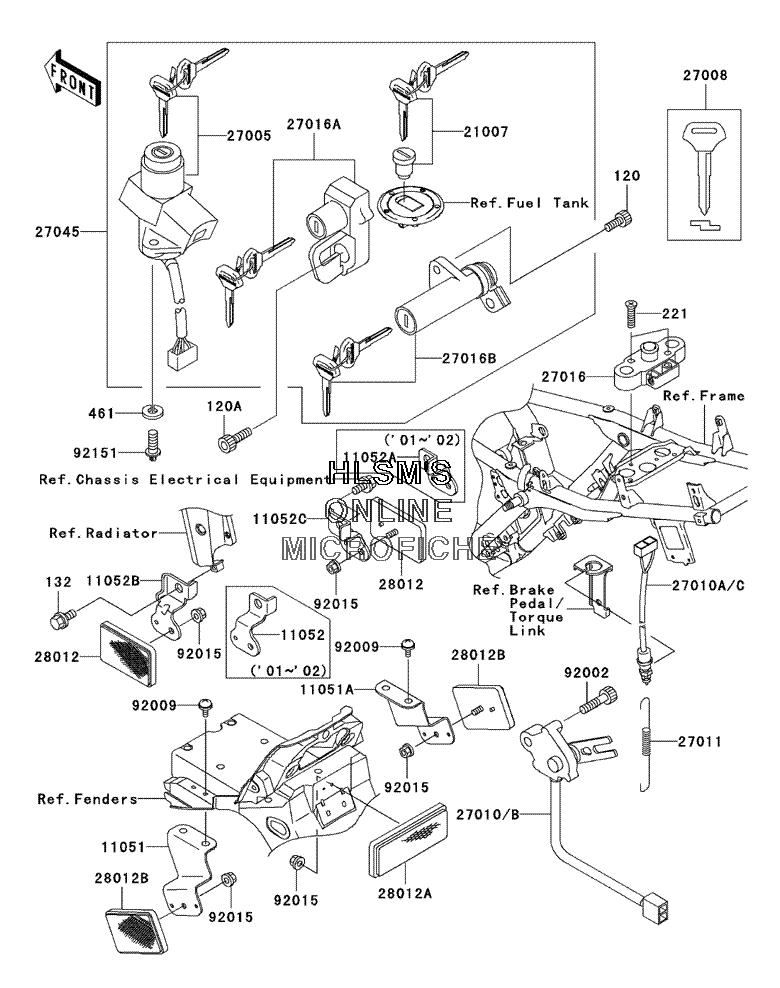

IGNITION SWITCH W/ LOCKS AND REFLECTORS для Kawasaki ZRX1200 - 2002 года выпуска`
-
№АртикулНазвание
-
120120S0512 BOLT, SOCKETBOLT, SOCKET
-
120A120S0620 BOLT, SOCKET, 6X20BOLT, SOCKET, 6X20
-
132132J0812 BOLT, FLANGED, SMALL, 8X12BOLT, FLANGED, SMALL, 8X12
-
221221C0630 SCREW, CSK, CROSSSCREW, CSK, CROSS
-
461461L0600 WASHER, SPRINGWASHER, SPRING
-
1105111051-1131 BRACKET, REFLECTOR, REAR, SIDE (LEFT)BRACKET, REFLECTOR, REAR, SIDE (LEFT)
-
11051A11051-1132 BRACKET, REFLECTOR, REAR, SIDE (RIGHT)BRACKET, REFLECTOR, REAR, SIDE (RIGHT)
-
1105211052-1255 BRACKET, REFLECTOR, FRONT, SIDE (LEFT)BRACKET, REFLECTOR, FRONT, SIDE (LEFT)
-
11052A11052-1256 BRACKET, REFLECTOR, FRONT, SIDE (RIGHT)BRACKET, REFLECTOR, FRONT, SIDE (RIGHT)
-
2100721007-5042 ROTOR, LOCK, TANK CAPROTOR, LOCK, TANK CAP
-
2700527005-5120 SWITCH, ASSY., IGNITIONSWITCH, ASSY., IGNITION
-
2700827008-1189 KEY, LOCK, BLANK (OPT)KEY, LOCK, BLANK (OPT)
-
2701027010-1371 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
27010A27010-1432 SWITCH, REAR BRAKESWITCH, REAR BRAKE
-
2701127011-017 SPRING, BRAKE LAMP SWITCHSPRING, BRAKE LAMP SWITCH
-
2701627016-1098 LOCK, ASSY., SEAT STRIKERLOCK, ASSY., SEAT STRIKER
-
27016A27016-5249 LOCK, ASSY., HELMETLOCK, ASSY., HELMET
-
27016B27016-5250 LOCK, ASSY., SEATLOCK, ASSY., SEAT
-
2704527045-5142 SWITCH, ASSY.SWITCH, ASSY.
-
2801228012-1003 REFLECTOR, REFLEXREFLECTOR, REFLEX
-
28012A28012-1077 REFLECTOR, REFLEXREFLECTOR, REFLEX
-
28012B28012-1088 REFLECTOR, REFLEXREFLECTOR, REFLEX
-
9200292002-1582 BOLT, 6X25BOLT, 6X25
-
9200992009-1288 SCREW, 6X14SCREW, 6X14
-
9201592015-1259 NUT, FLANGED, 5MMNUT, FLANGED, 5MM
-
9215192151-1911 BOLT, TORX, 6X16BOLT, TORX, 6X16
