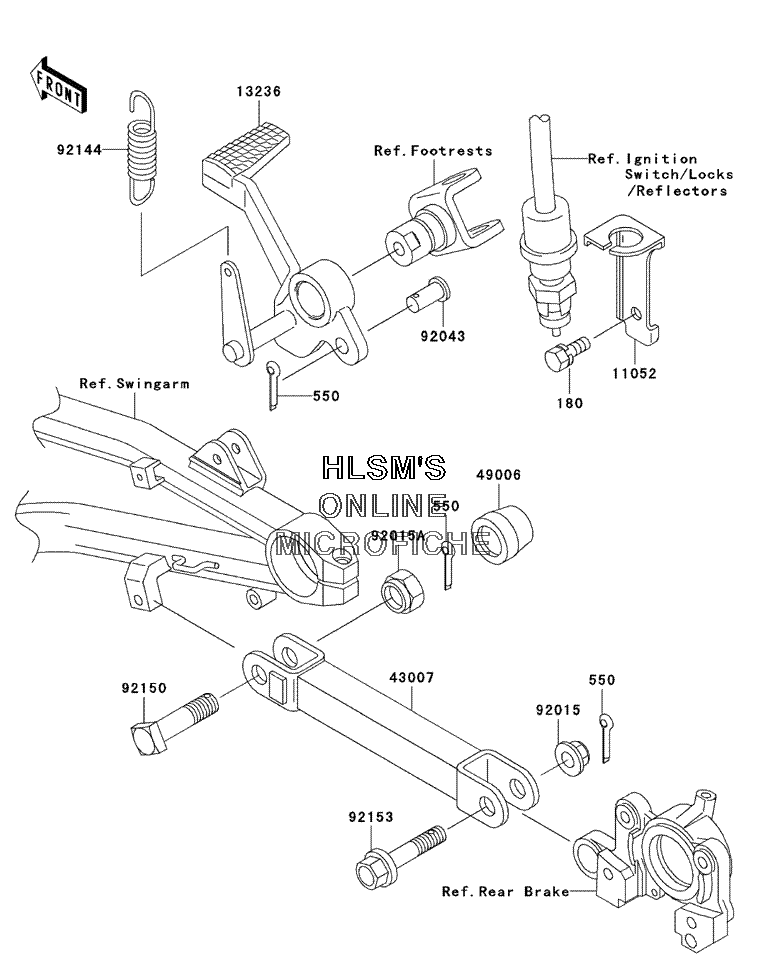

BRAKE PEDAL W/ TORQUE LINK для Kawasaki ZRX1200 - 2002 года выпуска
-
№АртикулНазвание
-
180180H0614 BOLT, UPSET, WSBOLT, UPSET, WS
-
550550D2015 PIN, COTTER, 2.0X15PIN, COTTER, 2.0X15
-
1105211052-1358 BRACKET, REAR BRAKE SWITCHBRACKET, REAR BRAKE SWITCH
-
1323613236-1293 LEVER, COMP, PEDALLEVER, COMP, PEDAL
-
4300743007-1194 ROD, TORQUEROD, TORQUE
-
4900649006-1275 BOOTBOOT
-
9201592015-1432 NUT, 8MMNUT, 8MM
-
92015A92015-1883 NUT, 10MMNUT, 10MM
-
9204392043-1303 PIN, 8MMPIN, 8MM
-
9214492144-1470 SPRING, PADSPRING, PAD
-
9215092150-1598 BOLT, 10X39.5BOLT, 10X39.5
-
9215392153-1053 BOLT, FLANGED, 8X38BOLT, FLANGED, 8X38
