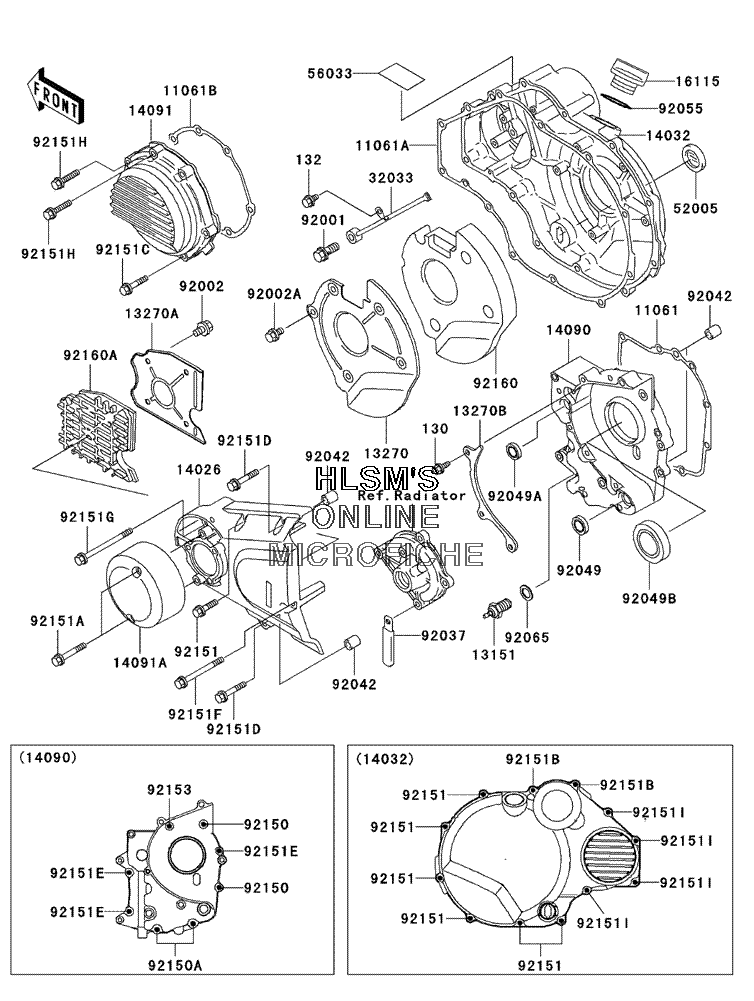

ENGINE COVER для Kawasaki ZRX1200 - 2002 года выпуска`
-
№АртикулНазвание
-
1106111061-1093 GASKET, TRANSMISSION COVERGASKET, TRANSMISSION COVER
-
11061A11061-1154 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
11061B11061-1155 GASKET, PULSING COVERGASKET, PULSING COVER
-
1315113151-1080 SWITCH, COMP, NEUTRALSWITCH, COMP, NEUTRAL
-
1327013270-1765 PLATEPLATE
-
13270A13270-1771 PLATEPLATE
-
13270B13270-1911 PLATE, TRANSMISSIONPLATE, TRANSMISSION
-
1402614026-1280 COVER, CHAINCOVER, CHAIN
-
1403214032-1519 COVER, CLUTCHCOVER, CLUTCH
-
1409014090-1877 COVER, TRANSMISSIONCOVER, TRANSMISSION
-
1409114091-1331 COVER, PULSINGCOVER, PULSING
-
14091A14091-1332 COVER, RELEASECOVER, RELEASE
-
1611516115-1009 CAP, OIL FILLERCAP, OIL FILLER
-
3203332033-1204 PIPE, CLUTCH COVERPIPE, CLUTCH COVER
-
5200552005-1009 GAUGE, OIL LEVELGAUGE, OIL LEVEL
-
5603356033-1073 LABEL, MANUAL, OIL CAPACITYLABEL, MANUAL, OIL CAPACITY
-
9200192001-1855 BOLT, BANJO, 8X20BOLT, BANJO, 8X20
-
9200292002-1449 BOLT, 6X10BOLT, 6X10
-
92002A92002-1541 BOLT, 6X10BOLT, 6X10
-
9203792037-1069 CLAMP, WIRING HARNESS, L=60CLAMP, WIRING HARNESS, L=60
-
9204292042-007 PIN, DOWEL, 6.3X8X14PIN, DOWEL, 6.3X8X14
-
9204992049-1564 SEAL, OILSEAL, OIL
-
92049A92049-1566 SEAL, OILSEAL, OIL
-
92049B92049-1567 SEAL, OILSEAL, OIL
-
9205592055-049 O-RING, 31.7X2.4O-RING, 31.7X2.4
-
9206592065-058 GASKET, 10.5X16X1GASKET, 10.5X16X1
-
9215092150-1010 BOLT, 6X20BOLT, 6X20
-
92150A92150-1968 BOLT, 6X50BOLT, 6X50
-
9215192151-1130 BOLT, 6X25BOLT, 6X25
-
92151A92151-1131 BOLT, 6X40BOLT, 6X40
-
92151B92151-1132 BOLT, 6X55BOLT, 6X55
-
92151C92151-1134 BOLT, 6X30BOLT, 6X30
-
92151D92151-1135 BOLT, 6X35BOLT, 6X35
-
92151E92151-1190 BOLT, 6X25BOLT, 6X25
-
92151F92151-1199 BOLT, 6X65BOLT, 6X65
-
92151G92151-1200 BOLT, 6X80BOLT, 6X80
-
92151H92151-1201 BOLT, 6X30BOLT, 6X30
-
92151I92151-1202 BOLT, 6X40BOLT, 6X40
-
9215392153-1114 BOLT, M6X20BOLT, M6X20
-
9216092160-1812 DAMPERDAMPER
-
130130S0614 BOLT, FLANGEDBOLT, FLANGED
-
132132H0510 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
92160A92160-1819 DAMPERDAMPER
