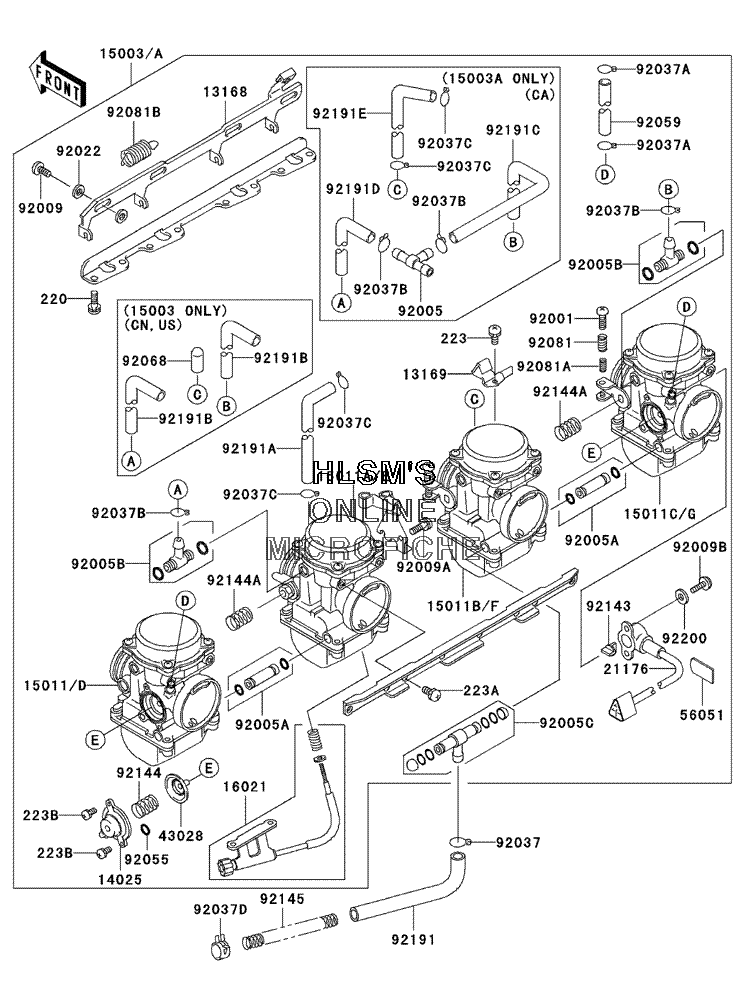

CARBURETOR для Kawasaki ZRX1200 - 2002 года выпуска

  • №
    Артикул
    Название
  • 13168
    13168-1245 LEVER, STARTER
    LEVER, STARTER
  • 13169
    13169-1871 PLATE, STARTER CABLE
    PLATE, STARTER CABLE
  • 14025
    14025-1903 COVER, AIR CUT VALVE
    COVER, AIR CUT VALVE
  • 15003
    15003-1636 CARBURETOR, ASSY. (EXCEPT CALIF.)
    CARBURETOR, ASSY. (EXCEPT CALIF.)
  • 15003A
    15003-1638 CARBURETOR, ASSY. (CALIF. ONLY)
    CARBURETOR, ASSY. (CALIF. ONLY)
  • 15011
    15011-1879 CARBURETOR (LEFT/OUTSIDE) (EXCEPT CALIF.)
    CARBURETOR (LEFT/OUTSIDE) (EXCEPT CALIF.)
  • 15011A
    15011-1880 CARBURETOR (LEFT/INSIDE) (EXCEPT CALIF.)
    CARBURETOR (LEFT/INSIDE) (EXCEPT CALIF.)
  • 15011B
    15011-1881 CARBURETOR (RIGHT/INSIDE) (EXCEPT CALIF.)
    CARBURETOR (RIGHT/INSIDE) (EXCEPT CALIF.)
  • 15011C
    15011-1882 CARBURETOR (RIGHT/OUTSIDE) (EXCEPT CALIF.)
    CARBURETOR (RIGHT/OUTSIDE) (EXCEPT CALIF.)
  • 15011D
    15011-1883 CARBURETOR (LEFT/OUTSIDE) (CALIF. ONLY)
    CARBURETOR (LEFT/OUTSIDE) (CALIF. ONLY)
  • 15011E
    15011-1884 CARBURETOR (LEFT/INSIDE) (CALIF. ONLY)
    CARBURETOR (LEFT/INSIDE) (CALIF. ONLY)
  • 15011F
    15011-1885 CARBURETOR (RIGHT/INSIDE) (CALIF. ONLY)
    CARBURETOR (RIGHT/INSIDE) (CALIF. ONLY)
  • 15011G
    15011-1886 CARBURETOR (RIGHT/OUTSIDE) (CALIF. ONLY)
    CARBURETOR (RIGHT/OUTSIDE) (CALIF. ONLY)
  • 16021
    16021-1204 SCREW, THROTTLE STOP
    SCREW, THROTTLE STOP
  • 21176
    21176-1073 SENSOR, THROTTLE
    SENSOR, THROTTLE
  • 43028
    43028-1084 DIAPHRAGM, 4.9MM, AIR CUT VALVE
    DIAPHRAGM, 4.9MM, AIR CUT VALVE
  • 56051
    56051-1480 MARK, K, TRIC
    MARK, K, TRIC
  • 92001
    92001-1998 BOLT, THROTTLE ADJUST
    BOLT, THROTTLE ADJUST
  • 92005
    92005-1119 FITTING, T, TYPE (CALIF. ONLY)
    FITTING, T, TYPE (CALIF. ONLY)
  • 92005A
    92005-1310 FITTING
    FITTING
  • 92005B
    92005-1314 FITTING
    FITTING
  • 92005C
    92005-1392 FITTING, FUEL
    FITTING, FUEL
  • 92009
    92009-1262 SCREW
    SCREW
  • 92009A
    92009-1365 SCREW, 5X10
    SCREW, 5X10
  • 92009B
    92009-1781 SCREW
    SCREW
  • 92022
    92022-1199 WASHER, 6.1X11X0.8, POLYACETAL
    WASHER, 6.1X11X0.8, POLYACETAL
  • 92037
    92037-1104 CLAMP, HOSE
    CLAMP, HOSE
  • 92037A
    92037-1142 CLAMP, TUBE
    CLAMP, TUBE
  • 92037B
    92037-1185 CLAMP, FUEL TAP HOSE (EXCEPT CALIF.)
    CLAMP, FUEL TAP HOSE (EXCEPT CALIF.)
  • 92037B
    92037-1185 CLAMP, FUEL TAP HOSE (CALIF. ONLY)
    CLAMP, FUEL TAP HOSE (CALIF. ONLY)
  • 220
    220B0616 SCREW, PAN, CROS, 6X16
    SCREW, PAN, CROS, 6X16
  • 223
    223C0420 SCREW, PAN, WS, CROS
    SCREW, PAN, WS, CROS
  • 223A
    223C0510 SCREW, PAN, WS, CROS
    SCREW, PAN, WS, CROS
  • 223B
    223D0408 SCREW, PAN, WS, CROS
    SCREW, PAN, WS, CROS
  • 92037C
    92037-1201 CLAMP, TUBE (EXCEPT CALIF.)
    CLAMP, TUBE (EXCEPT CALIF.)
  • 92037C
    92037-1201 CLAMP, TUBE (CALIF. ONLY)
    CLAMP, TUBE (CALIF. ONLY)
  • 92037D
    92037-2082 CLAMP
    CLAMP
  • 92055
    92055-1245 O-RING
    O-RING
  • 92059
    92059-1140 TUBE, 3.5X6.5X180
    TUBE, 3.5X6.5X180
  • 92068
    92068-006 PLUG, 12X25 (EXCEPT CALIF.)
    PLUG, 12X25 (EXCEPT CALIF.)
  • 92081
    92081-1620 SPRING, THROTTLE ADJUST UPPER
    SPRING, THROTTLE ADJUST UPPER
  • 92081A
    92081-1621 SPRING, THROTTLE ADJUST LOWER
    SPRING, THROTTLE ADJUST LOWER
  • 92081B
    92081-1762 SPRING, STARTER LEVER
    SPRING, STARTER LEVER
  • 92143
    92143-1907 COLLAR
    COLLAR
  • 92144
    92144-1885 SPRING
    SPRING
  • 92144A
    92144-1986 SPRING, THROTTLE ADJUST CENTER
    SPRING, THROTTLE ADJUST CENTER
  • 92145
    92145-1420 SPRING, FUEL TUBE
    SPRING, FUEL TUBE
  • 92191
    92191-1007 TUBE, FUEL
    TUBE, FUEL
  • 92191A
    92191-1017 TUBE
    TUBE
  • 92191B
    92191-1118 TUBE, AIR VENT (EXCEPT CALIF.)
    TUBE, AIR VENT (EXCEPT CALIF.)
  • 92191C
    92191-1680 TUBE, 7X11X187 (CALIF. ONLY)
    TUBE, 7X11X187 (CALIF. ONLY)
  • 92191D
    92191-1681 TUBE, 7X11X54 (CALIF. ONLY)
    TUBE, 7X11X54 (CALIF. ONLY)
  • 92191E
    92191-1682 TUBE, 4.5X8X110 (CALIF. ONLY)
    TUBE, 4.5X8X110 (CALIF. ONLY)
  • 92200
    92200-1369 WASHER
    WASHER
