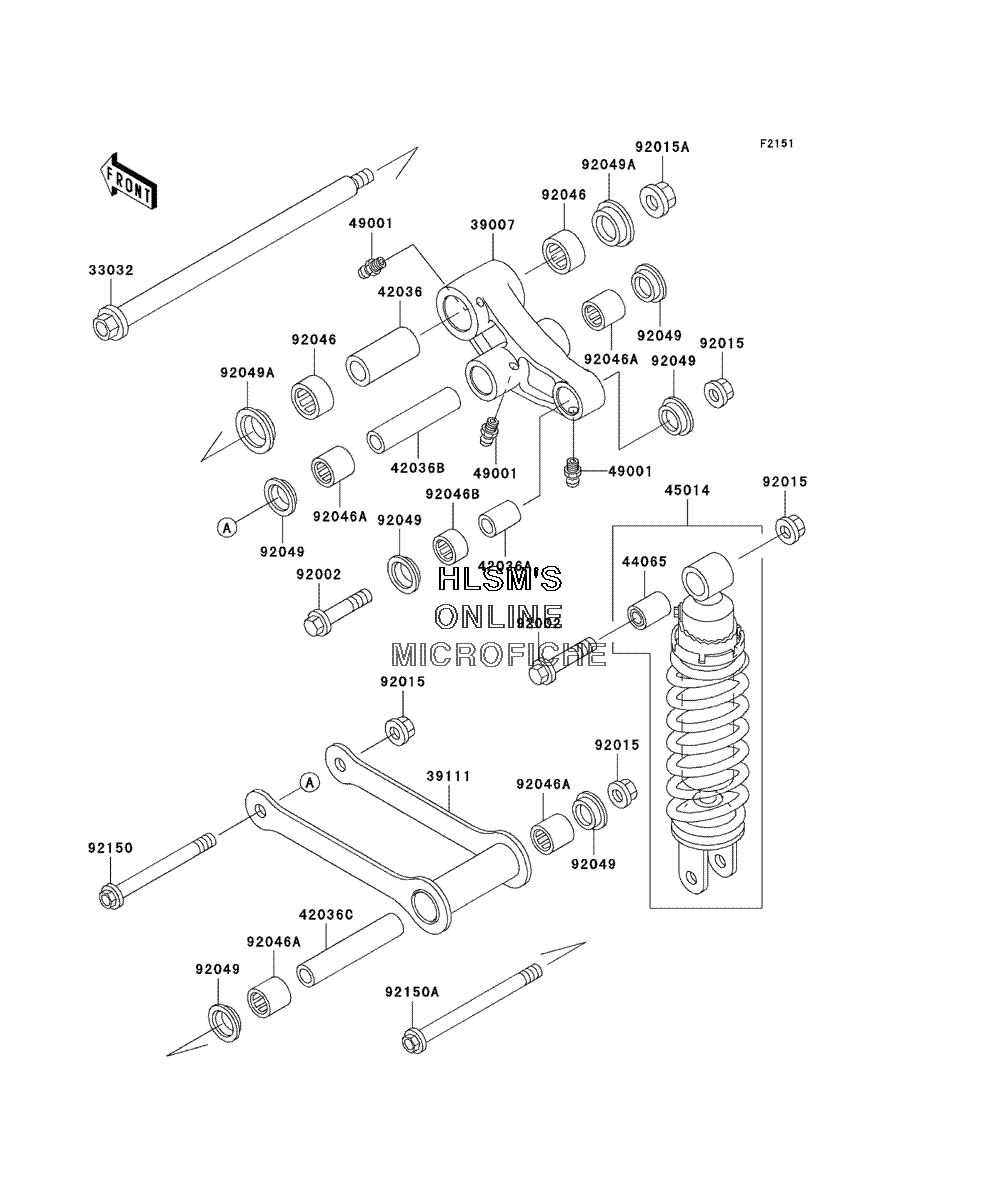

SUSPENSION - REAR W/ SHOCK ABSORBER для Kawasaki Vulcan 800 Drifter - 2002 года выпуска`
-
№АртикулНазвание
-
3303233032-1176 SHAFT, SWING ARMSHAFT, SWING ARM
-
3900739007-1280 ARM, SUSP, UNI TRAKARM, SUSP, UNI TRAK
-
3911139111-1141 ROD, TIE, SUSPENSIONROD, TIE, SUSPENSION
-
4203642036-1207 SLEEVE, 20X28X60SLEEVE, 20X28X60
-
42036A42036-1234 SLEEVE, 12.1X20X30SLEEVE, 12.1X20X30
-
42036B42036-1322 SLEEVE, 12.1X20X92SLEEVE, 12.1X20X92
-
42036C42036-1323 SLEEVE, 12.1X20X108SLEEVE, 12.1X20X108
-
4406544065-1017 BUSHING, SHOCKABSORBERBUSHING, SHOCKABSORBER
-
4501445014-1708 SHOCKABSORBERSHOCKABSORBER
-
4900149001-0001 NIPPLE, GREASENIPPLE, GREASE
-
9200292002-1130 BOLT, 12X55BOLT, 12X55
-
9201592015-1433 NUT, FLANGED, 12MMNUT, FLANGED, 12MM
-
92015A92015-1946 NUT, FLANGED, 16MMNUT, FLANGED, 16MM
-
9204692046-0008 BEARING, NEEDLE, 7E, HVS 28X34X17BEARING, NEEDLE, 7E, HVS 28X34X17
-
92046A92046-1110 BEARING, NEEDLE, BM202726BEARING, NEEDLE, BM202726
-
92046B92046-1112 BEARING, NEEDLE, BM202715BEARING, NEEDLE, BM202715
-
9204992049-1109 SEAL, OIL, ARMSEAL, OIL, ARM
-
92049A92049-1181 SEAL, OILSEAL, OIL
-
9215092150-1895 BOLT, FLANGED, 12X117BOLT, FLANGED, 12X117
-
92150A92150-1896 BOLT, FLANGED, 12X145BOLT, FLANGED, 12X145
