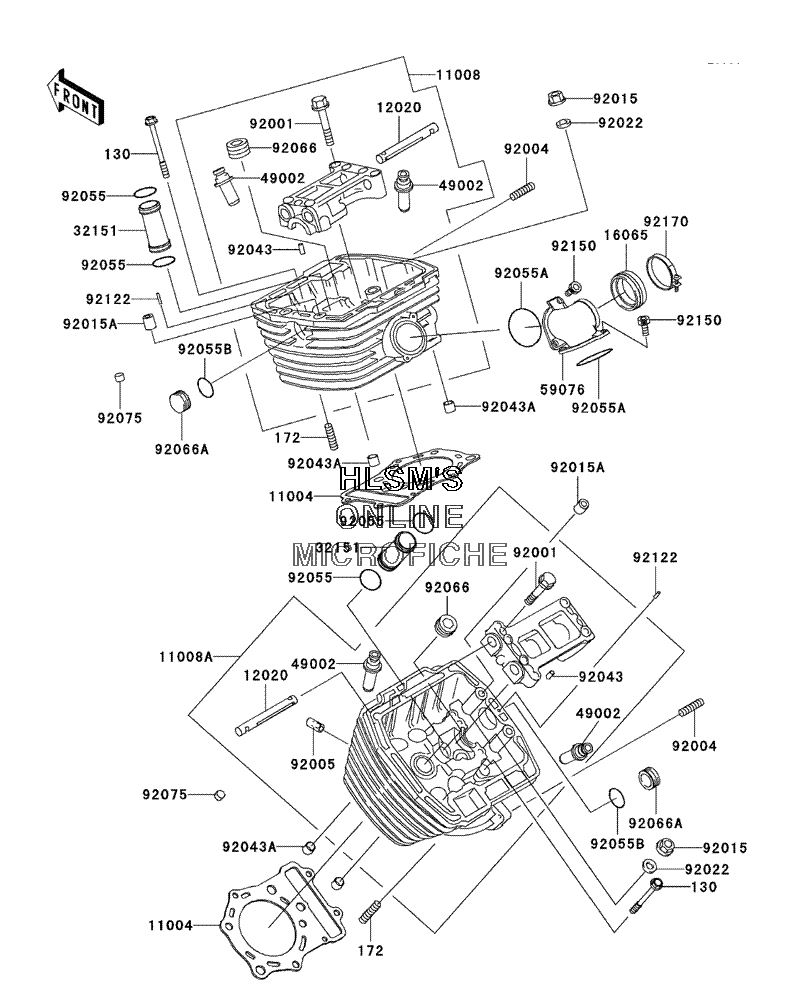

CYLINDER HEAD для Kawasaki Vulcan 800 Drifter - 2002 года выпуска`
-
№АртикулНазвание
-
130130S0665 BOLT, FLANGEDBOLT, FLANGED
-
172172G0825 BOLT, STUD, 8X25BOLT, STUD, 8X25
-
1100411004-1310 GASKET, HEADGASKET, HEAD
-
1100811008-1301 HEAD, COMP, CYLINDER, FRONTHEAD, COMP, CYLINDER, FRONT
-
11008A11008-1302 HEAD, COMP, CYLINDER, REARHEAD, COMP, CYLINDER, REAR
-
1202012020-1070 SHAFT, ROCKERSHAFT, ROCKER
-
1606516065-1308 HOLDER, CARBURETORHOLDER, CARBURETOR
-
3215132151-1893 PIPE, PLUGPIPE, PLUG
-
4900249002-1097 GUIDE, VALVEGUIDE, VALVE
-
5907659076-1107 MANIFOLD, INTAKEMANIFOLD, INTAKE
-
9200192001-1005 BOLT, FLANGED, 8X58BOLT, FLANGED, 8X58
-
9200492004-1217 STUD, 8X22STUD, 8X22
-
9200592005-1061 FITTING, BREATHER PIPEFITTING, BREATHER PIPE
-
9201592015-077 NUT, FLANGED, 10MMNUT, FLANGED, 10MM
-
92015A92015-1923 NUTNUT
-
9202292022-1591 WASHER, 10.5X20X1.6WASHER, 10.5X20X1.6
-
9204392043-1263 PIN, 6.2X8X14PIN, 6.2X8X14
-
92043A92043-1266 PIN, 11X14X12.3PIN, 11X14X12.3
-
9205592055-1272 O-RING, 27.7X1.9O-RING, 27.7X1.9
-
92055A92055-1279 O-RING, 44.7X2.4O-RING, 44.7X2.4
-
92055B92055-1459 O-RING, ID=24.5O-RING, ID=24.5
-
9206692066-0002 PLUG, PT1/2X12.5PLUG, PT1/2X12.5
-
92066A92066-1462 PLUG, CAM HOLEPLUG, CAM HOLE
-
9207592075-182 DAMPERDAMPER
-
9212292122-1126 ROLLER, 3X15.8ROLLER, 3X15.8
-
9215092150-1880 BOLT, SOCKET, 6X20BOLT, SOCKET, 6X20
-
9217092170-1632 CLAMPCLAMP
