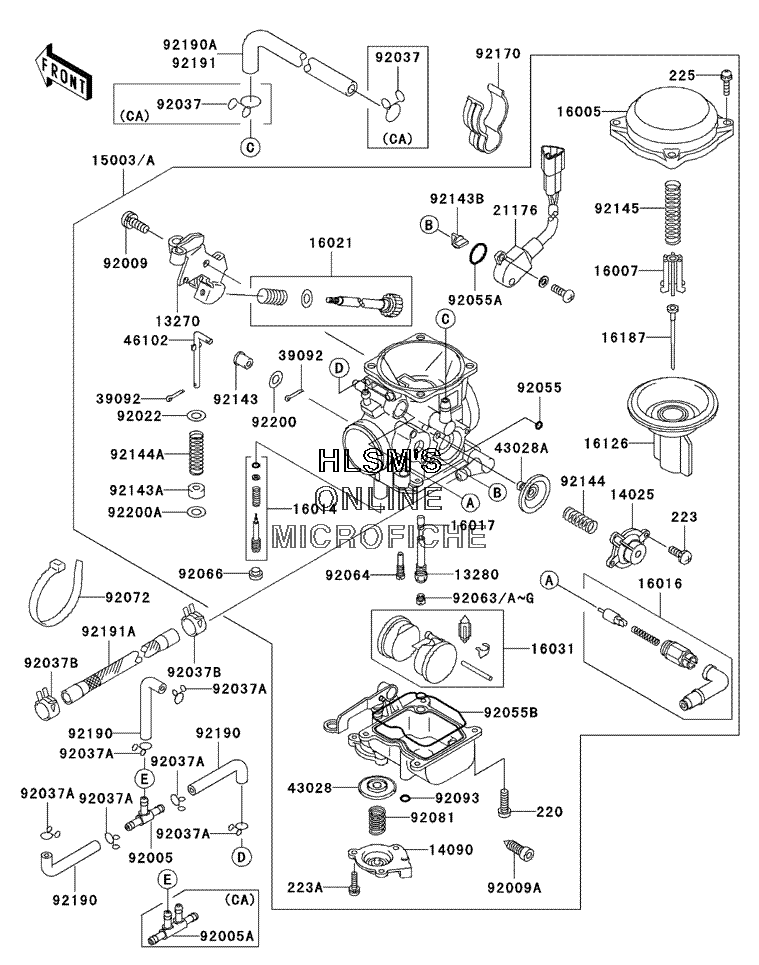

CARBURETOR для Kawasaki Vulcan 800 Drifter - 2002 года выпуска

  • №
    Артикул
    Название
  • 13270
    13270-1513 PLATE
    PLATE
  • 13280
    13280-1140 HOLDER, NEEDLE JET
    HOLDER, NEEDLE JET
  • 14025
    14025-1903 COVER, AIR CUT VALVE
    COVER, AIR CUT VALVE
  • 14090
    14090-1635 COVER, ACCELERATOR
    COVER, ACCELERATOR
  • 15003
    15003-1452 CARBURETOR, ASSY. (EXCEPT CALIF.)
    CARBURETOR, ASSY. (EXCEPT CALIF.)
  • 15003A
    15003-1559 CARBURETOR, ASSY. (CALIF. ONLY)
    CARBURETOR, ASSY. (CALIF. ONLY)
  • 16005
    16005-1057 TOP, CHAMBER, MIXING, 27/60
    TOP, CHAMBER, MIXING, 27/60
  • 16007
    16007-1117 SEAT, SPRING, VALVE
    SEAT, SPRING, VALVE
  • 16014
    16014-1081 SCREW, PILOT AIR
    SCREW, PILOT AIR
  • 16016
    16016-1100 PLUNGER, STARTER
    PLUNGER, STARTER
  • 16017
    16017-1405 JET, NEEDLE, #6
    JET, NEEDLE, #6
  • 16021
    16021-1207 SCREW, THROTTLE STOP
    SCREW, THROTTLE STOP
  • 16031
    16031-1102 FLOAT
    FLOAT
  • 16126
    16126-1170 VALVE, VACUUM
    VALVE, VACUUM
  • 16187
    16187-1114 NEEDLE, JET, N8GT
    NEEDLE, JET, N8GT
  • 21176
    21176-1096 SENSOR
    SENSOR
  • 39092
    39092-1058 PIN, HAIR
    PIN, HAIR
  • 43028
    43028-0002 DIAPHRAGM
    DIAPHRAGM
  • 43028A
    43028-1053 DIAPHRAGM, 5.9MM, AIR CUT VALVE
    DIAPHRAGM, 5.9MM, AIR CUT VALVE
  • 46102
    46102-1385 ROD
    ROD
  • 92005
    92005-1017 FITTING, TUBE, T, TYPE (EXCEPT CALIF.)
    FITTING, TUBE, T, TYPE (EXCEPT CALIF.)
  • 92005A
    92005-1307 FITTING (CALIF. ONLY)
    FITTING (CALIF. ONLY)
  • 92009
    92009-1365 SCREW, 5X10
    SCREW, 5X10
  • 92009A
    92009-1551 SCREW, DRAIN, M6X0.75
    SCREW, DRAIN, M6X0.75
  • 92022
    92022-1480 WASHER, PLAIN, STOP SPRING
    WASHER, PLAIN, STOP SPRING
  • 92037
    92037-1104 CLAMP, HOSE (CALIF. ONLY)
    CLAMP, HOSE (CALIF. ONLY)
  • 92037A
    92037-1610 CLAMP
    CLAMP
  • 92037B
    92037-2082 CLAMP
    CLAMP
  • 92055
    92055-1245 O-RING
    O-RING
  • 92055A
    92055-1574 O-RING, SENSOR
    O-RING, SENSOR
  • 92055B
    92055-1615 O-RING, FLOAT CHAMBER
    O-RING, FLOAT CHAMBER
  • 92063
    92063-1013 JET, MAIN, #140 (OPT)
    JET, MAIN, #140 (OPT)
  • 92063A
    92063-1014 JET, MAIN, #135 (EXCEPT CALIF.)
    JET, MAIN, #135 (EXCEPT CALIF.)
  • 220
    220D0414 SCREW, PAN, CROS
    SCREW, PAN, CROS
  • 223
    223C0408 SCREW, PAN, WS, CROS
    SCREW, PAN, WS, CROS
  • 223A
    223D0410 SCREW, PAN, WS, CROS
    SCREW, PAN, WS, CROS
  • 92063B
    92063-1014 JET, MAIN, #135 (CALIF. ONLY) (OPT)
    JET, MAIN, #135 (CALIF. ONLY) (OPT)
  • 92063C
    92063-1015 JET, MAIN, #138 (CALIF. ONLY)
    JET, MAIN, #138 (CALIF. ONLY)
  • 92063D
    92063-1015 JET, MAIN, #138 (EXCEPT CALIF.)
    JET, MAIN, #138 (EXCEPT CALIF.)
  • 92063E
    92063-1016 JET, MAIN, #142 (CALIF. ONLY) (OPT)
    JET, MAIN, #142 (CALIF. ONLY) (OPT)
  • 92063F
    92063-1075 JET, MAIN, #130 (EXCEPT CALIF.)
    JET, MAIN, #130 (EXCEPT CALIF.)
  • 92063G
    92063-1076 JET, MAIN, #132 (OPT)
    JET, MAIN, #132 (OPT)
  • 92064
    92064-1174 JET, PILOT
    JET, PILOT
  • 92066
    92066-1051 PLUG, PILOT AIR SCREW, 6.9X2
    PLUG, PILOT AIR SCREW, 6.9X2
  • 92072
    92072-1197 BAND, L=365
    BAND, L=365
  • 92081
    92081-1092 SPRING, DIAPHRAGM
    SPRING, DIAPHRAGM
  • 92093
    92093-1046 SEAL, "U"RING
    SEAL, "U"RING
  • 92143
    92143-1790 COLLAR
    COLLAR
  • 92143A
    92143-1791 COLLAR
    COLLAR
  • 92143B
    92143-1907 COLLAR
    COLLAR
  • 92144
    92144-1885 SPRING
    SPRING
  • 92144A
    92144-1886 SPRING
    SPRING
  • 92145
    92145-1064 SPRING, VACUUM VALVE
    SPRING, VACUUM VALVE
  • 92170
    92170-1703 CLAMP, HOSE
    CLAMP, HOSE
  • 92190
    92190-1610 TUBE, 4X9X80
    TUBE, 4X9X80
  • 92190A
    92190-1619 TUBE, 7X12X540 (GREEN) (EXCEPT CALIF.)
    TUBE, 7X12X540 (GREEN) (EXCEPT CALIF.)
  • 92191
    92191-1008 TUBE, 7X12X480 (YELLOW) (CALIF. ONLY)
    TUBE, 7X12X480 (YELLOW) (CALIF. ONLY)
  • 92191A
    92191-1351 TUBE, FUEL
    TUBE, FUEL
  • 92200
    92200-1274 WASHER
    WASHER
  • 92200A
    92200-1275 WASHER
    WASHER
  • 225
    225C0418 SCREW, PAN, WSP, CROS
    SCREW, PAN, WSP, CROS
