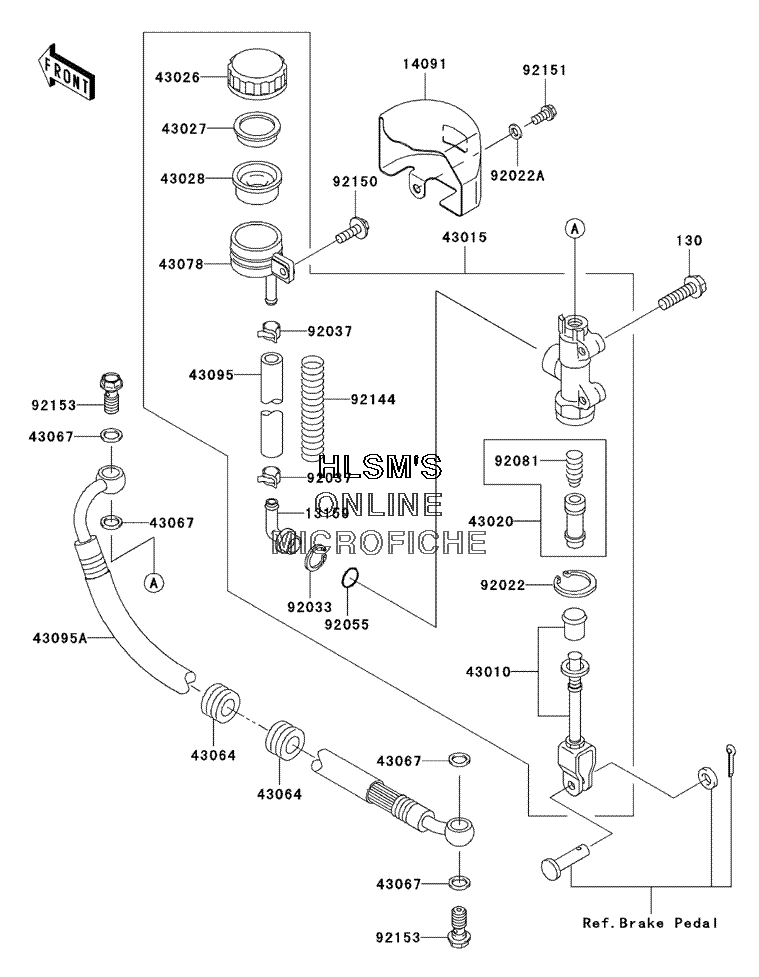

BRAKE - MASTER CYLINDER - REAR для Kawasaki Vulcan 800 Drifter - 2002 года выпуска

  • №
    Артикул
    Название
  • 130
    130J0830 BOLT, FLANGED, 8X30
    BOLT, FLANGED, 8X30
  • 13159
    13159-1052 CONNECTOR, REAR MASTER CYLINDER
    CONNECTOR, REAR MASTER CYLINDER
  • 14091
    14091-1300 COVER, RESERVOIR TANK
    COVER, RESERVOIR TANK
  • 43010
    43010-1055 ROD, ASSY., BRAKE
    ROD, ASSY., BRAKE
  • 43015
    43015-1647 CYLINDER, ASSY., MASTER, REAR
    CYLINDER, ASSY., MASTER, REAR
  • 43020
    43020-1057 PISTON, COMP, BRAKE
    PISTON, COMP, BRAKE
  • 43026
    43026-1051 CAP, BRAKE
    CAP, BRAKE
  • 43027
    43027-1051 PLATE, DIAPHRAGM
    PLATE, DIAPHRAGM
  • 43028
    43028-1057 DIAPHRAGM, MASTER CYLINDER
    DIAPHRAGM, MASTER CYLINDER
  • 43064
    43064-006 GROMMET, HOSE CLAMP
    GROMMET, HOSE CLAMP
  • 43067
    43067-001 WASHER, 10.5X15X1.5
    WASHER, 10.5X15X1.5
  • 43078
    43078-1165 RESERVOIR, REAR MASTER CYLINDER
    RESERVOIR, REAR MASTER CYLINDER
  • 43095
    43095-1148 HOSE, BRAKE, REAR MASTER CYLINDER
    HOSE, BRAKE, REAR MASTER CYLINDER
  • 43095A
    43095-1168 HOSE, BRAKE, REAR
    HOSE, BRAKE, REAR
  • 92022
    92022-1601 WASHER, CIRCRIP
    WASHER, CIRCRIP
  • 92022A
    92022-183 WASHER, 6.2X11X1.5
    WASHER, 6.2X11X1.5
  • 92033
    92033-1186 RING, SNAP, 20.5MM
    RING, SNAP, 20.5MM
  • 92037
    92037-1547 CLAMP, BRAKE HOSE
    CLAMP, BRAKE HOSE
  • 92055
    92055-1251 O-RING, MASTER CYLINDER
    O-RING, MASTER CYLINDER
  • 92081
    92081-1737 SPRING, MASTER CYLINDER
    SPRING, MASTER CYLINDER
  • 92144
    92144-1513 SPRING, PROTECTOR
    SPRING, PROTECTOR
  • 92150
    92150-1633 BOLT, FLANGED, 6X20
    BOLT, FLANGED, 6X20
  • 92151
    92151-1401 BOLT, FLANGED, 6X12
    BOLT, FLANGED, 6X12
  • 92153
    92153-0627 BOLT, OIL, L=23
    BOLT, OIL, L=23
