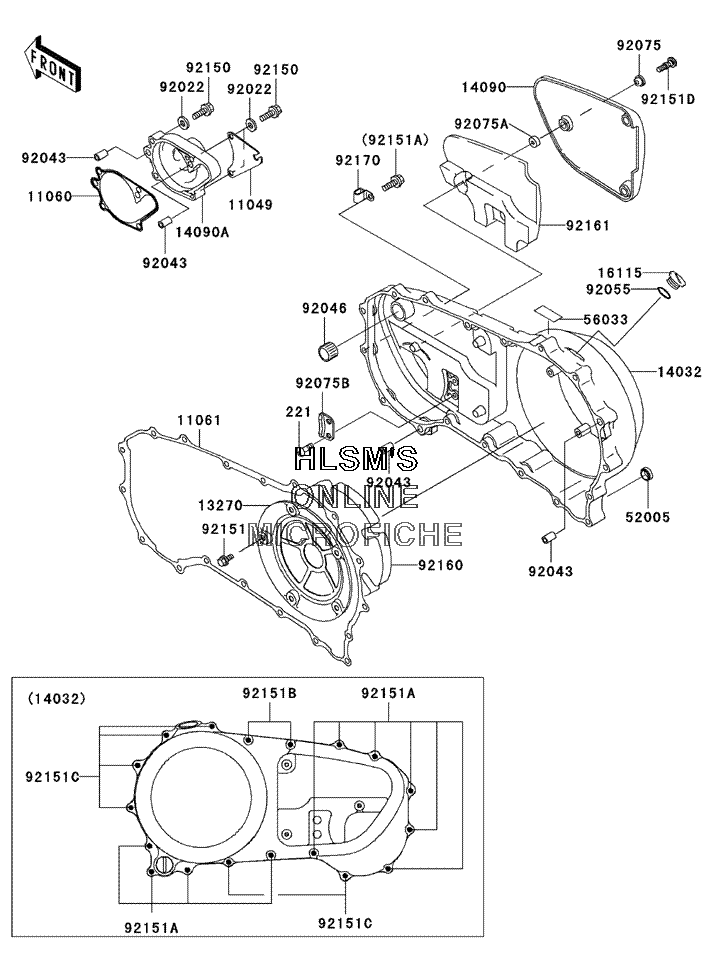

ENGINE COVER(S) - RIGHT для Kawasaki Vulcan 1500 Nomad Fi - 2002 года выпуска`
-
№АртикулНазвание
-
221221B0612 SCREW, CSK, CROS, 6X12SCREW, CSK, CROS, 6X12
-
1104911049-1789 BRACKETBRACKET
-
1106011060-1124 GASKET, WATER PUMP COVERGASKET, WATER PUMP COVER
-
1106111061-1081 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
1327013270-1592 PLATEPLATE
-
1403214032-1493 COVER, CLUTCHCOVER, CLUTCH
-
1409014090-1678 COVER, CLUTCH OUTERCOVER, CLUTCH OUTER
-
14090A14090-1932 COVER, WATER PUMPCOVER, WATER PUMP
-
1611516115-1063 CAP, OIL FILLERCAP, OIL FILLER
-
5200552005-1009 GAUGE, OIL LEVELGAUGE, OIL LEVEL
-
5603356033-1156 LABEL, MANUAL, OIL CAPACITYLABEL, MANUAL, OIL CAPACITY
-
9202292022-077 WASHER, 6.1X12X1WASHER, 6.1X12X1
-
9204392043-1263 PIN, 6.2X8X14PIN, 6.2X8X14
-
9204692046-1163 BEARING, NEEDLE, HK1212BEARING, NEEDLE, HK1212
-
9205592055-049 O-RING, 31.7X2.4O-RING, 31.7X2.4
-
9207592075-1855 DAMPERDAMPER
-
92075A92075-1856 DAMPERDAMPER
-
92075B92075-1905 DAMPERDAMPER
-
9215092150-1021 BOLT, 6X30BOLT, 6X30
-
9215192151-1064 BOLT, 6X10BOLT, 6X10
-
92151A92151-1130 BOLT, 6X25BOLT, 6X25
-
92151B92151-1134 BOLT, 6X30BOLT, 6X30
-
92151C92151-1135 BOLT, 6X35BOLT, 6X35
-
92151D92151-1273 BOLT, L=22.5BOLT, L=22.5
-
9216092160-1716 DAMPERDAMPER
-
9216192161-1139 DAMPERDAMPER
-
9217092170-1804 CLAMP, METER HARNESSCLAMP, METER HARNESS
