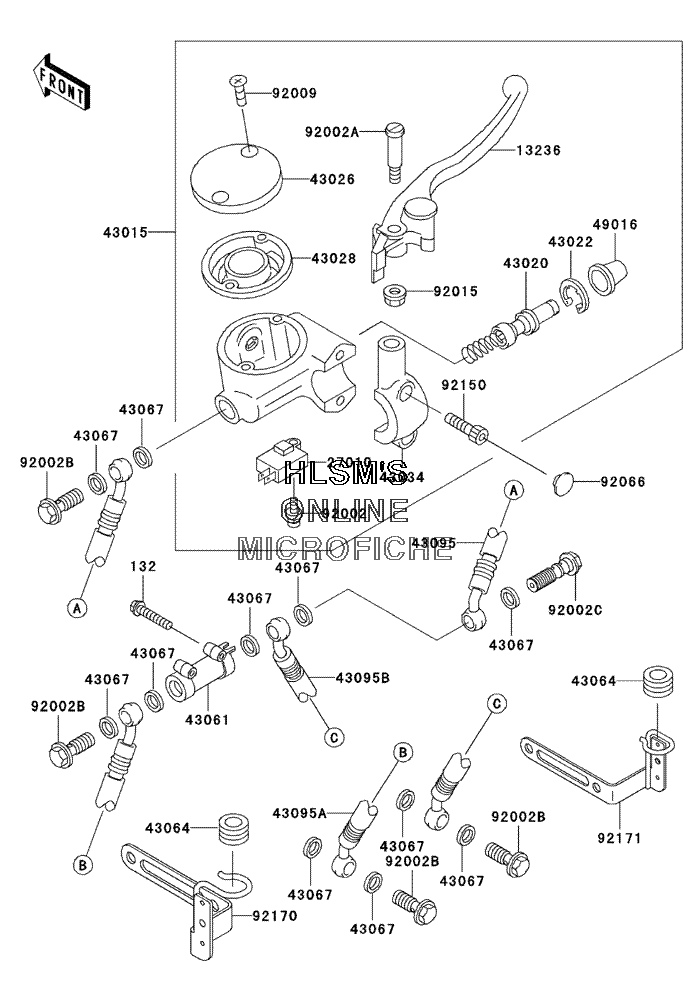

BRAKE - MASTER CYLINDER - FRONT для Kawasaki Vulcan 1500 Nomad Fi - 2002 года выпуска

  • №
    Артикул
    Название
  • 132
    132E0630 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
  • 13236
    13236-1315 LEVER, COMP, FRONT BRAKE
    LEVER, COMP, FRONT BRAKE
  • 27010
    27010-1170 SWITCH, BRAKE
    SWITCH, BRAKE
  • 43015
    43015-1619 CYLINDER, ASSY., MASTER, FRONT
    CYLINDER, ASSY., MASTER, FRONT
  • 43020
    43020-1054 PISTON, COMP, BRAKE, FRONT
    PISTON, COMP, BRAKE, FRONT
  • 43022
    43022-1010 STOPPER, BRAKE, PISTON
    STOPPER, BRAKE, PISTON
  • 43026
    43026-1083 CAP, BRAKE
    CAP, BRAKE
  • 43028
    43028-1071 DIAPHRAGM, MASTER CYLINDER
    DIAPHRAGM, MASTER CYLINDER
  • 43034
    43034-1147 HOLDER, BRAKE
    HOLDER, BRAKE
  • 43061
    43061-1002 JOINT, BRAKE
    JOINT, BRAKE
  • 43064
    43064-006 GROMMET, HOSE CLAMP
    GROMMET, HOSE CLAMP
  • 43067
    43067-001 WASHER, 10.5X15X1.5
    WASHER, 10.5X15X1.5
  • 43095
    43095-1099 HOSE, BRAKE, FRONT, UPPER
    HOSE, BRAKE, FRONT, UPPER
  • 43095A
    43095-1100 HOSE, BRAKE, FRONT, LOWER (LEFT)
    HOSE, BRAKE, FRONT, LOWER (LEFT)
  • 43095B
    43095-1101 HOSE, BRAKE, FRONT, LOWER (RIGHT)
    HOSE, BRAKE, FRONT, LOWER (RIGHT)
  • 49016
    49016-1044 COVER, SEAL, MASTER CYLINDER
    COVER, SEAL, MASTER CYLINDER
  • 92002
    92002-1323 BOLT, SCREW, 4X12
    BOLT, SCREW, 4X12
  • 92002A
    92002-1561 BOLT, LEVER SET
    BOLT, LEVER SET
  • 92002B
    92002-1888 BOLT, OIL, L=23
    BOLT, OIL, L=23
  • 92002C
    92002-1909 BOLT, OIL, L=37
    BOLT, OIL, L=37
  • 92009
    92009-1440 SCREW, 5MM
    SCREW, 5MM
  • 92015
    92015-1528 NUT, FLANGED, 6MM
    NUT, FLANGED, 6MM
  • 92066
    92066-1301 PLUG
    PLUG
  • 92150
    92150-1025 BOLT, SOCKET, 6MM
    BOLT, SOCKET, 6MM
  • 92170
    92170-1858 CLAMP, BRAKE HOSE (LEFT)
    CLAMP, BRAKE HOSE (LEFT)
  • 92171
    92171-1288 CLAMP, BRAKE HOSE (RIGHT)
    CLAMP, BRAKE HOSE (RIGHT)
