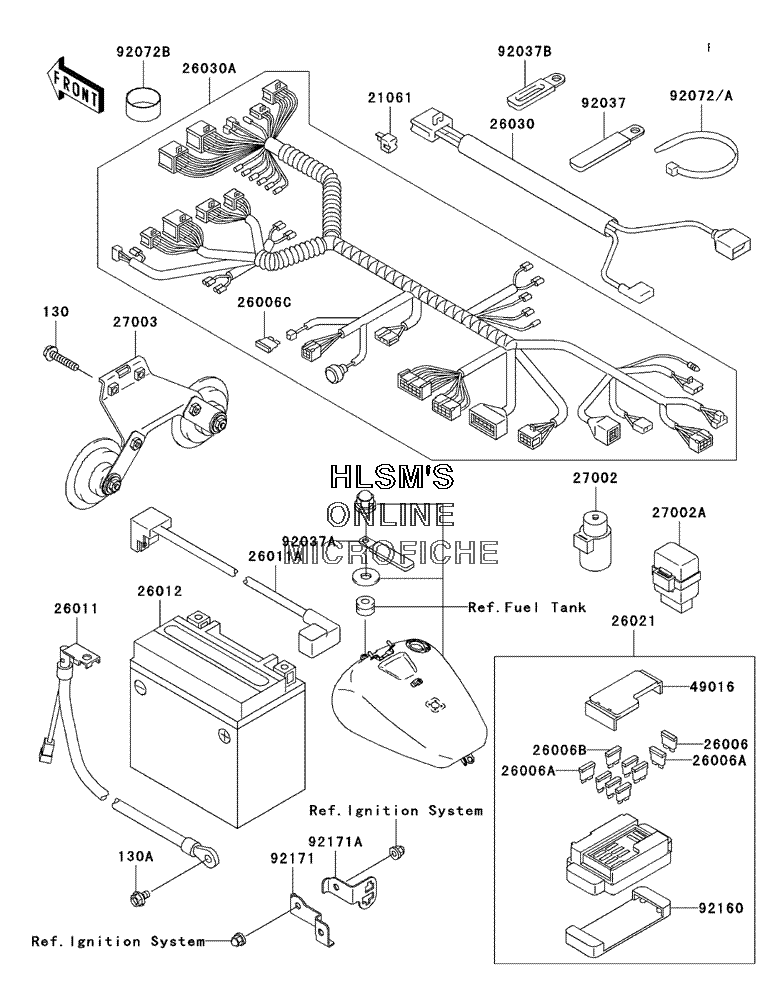

CHASSIS ELECTRICAL EQUIPMENT для Kawasaki Vulcan 1500 Nomad Fi - 2002 года выпуска`
-
№АртикулНазвание
-
130130J0630 BOLT, FLANGED, 6X30 (BLACK)BOLT, FLANGED, 6X30 (BLACK)
-
130A130V0610 BOLT, FLANGED, 6X10BOLT, FLANGED, 6X10
-
2106121061-1003 RECTIFIERRECTIFIER
-
2600626006-1006 FUSE, 30A, GFUSE, 30A, G
-
26006A26006-1007 FUSE, 10A, RFUSE, 10A, R
-
26006B26006-1061 FUSE, 15A, BFUSE, 15A, B
-
26006C26006-1069 FUSE, 15A, BFUSE, 15A, B
-
2601126011-1750 WIRE, LEAD, BATTERY (-)WIRE, LEAD, BATTERY (-)
-
26011A26011-1764 WIRE, LEAD, BATTERY (+)WIRE, LEAD, BATTERY (+)
-
2601226012-1371 BATTERY, MF, FTZ16, BS, 12V 18AHBATTERY, MF, FTZ16, BS, 12V 18AH
-
2602126021-0002 JUNCTION BOXJUNCTION BOX
-
2603026030-1450 HARNESS, SUBHARNESS, SUB
-
26030A26030-1852 HARNESS, MAINHARNESS, MAIN
-
2700227002-1051 RELAY, ASSY.RELAY, ASSY.
-
27002A27002-1113 RELAY, ASSY., SIGNAL LAMPRELAY, ASSY., SIGNAL LAMP
-
2700327003-1406 HORNHORN
-
4901649016-0005 COVER, SEAL, FUSECOVER, SEAL, FUSE
-
9203792037-1069 CLAMP, L=60CLAMP, L=60
-
92037A92037-113 CLAMPCLAMP
-
92037B92037-1780 CLAMPCLAMP
-
9207292072-1195 BAND, L=202BAND, L=202
-
92072A92072-1197 BAND, L=365BAND, L=365
-
92072B92072-1393 BANDBAND
-
9216092160-1650 DAMPER, JUNCTION BOXDAMPER, JUNCTION BOX
-
9217192171-1262 CLAMPCLAMP
-
92171A92171-1263 CLAMP, HARNESSCLAMP, HARNESS
