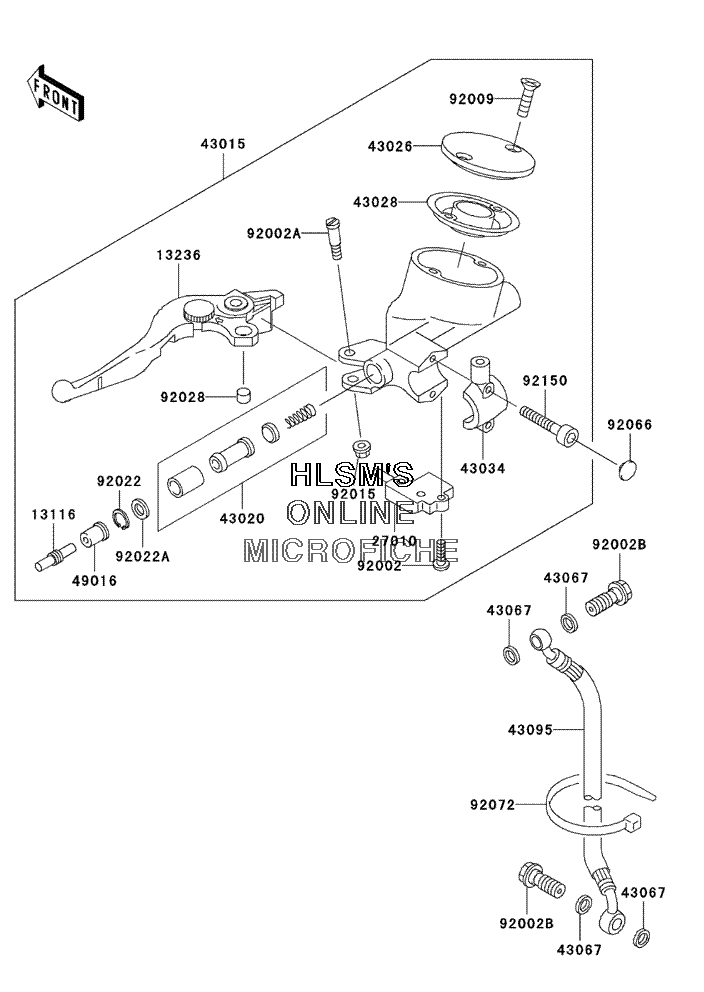

CLUTCH MASTER CYLINDER для Kawasaki Vulcan 1500 Nomad Fi - 2002 года выпуска`
-
№АртикулНазвание
-
1311613116-1110 ROD, PUSH, MASTER CYLINDERROD, PUSH, MASTER CYLINDER
-
1323613236-1316 LEVER, COMP, CLUTCHLEVER, COMP, CLUTCH
-
2701027010-1406 SWITCH, CLUTCHSWITCH, CLUTCH
-
4301543015-1621 CYLINDER, ASSY., MASTER, CLUTCHCYLINDER, ASSY., MASTER, CLUTCH
-
4302043020-1055 PISTON, COMP, BRAKE, CLUTCHPISTON, COMP, BRAKE, CLUTCH
-
4302643026-1083 CAP, BRAKECAP, BRAKE
-
4302843028-1071 DIAPHRAGM, MASTER CYLINDERDIAPHRAGM, MASTER CYLINDER
-
4303443034-1147 HOLDER, BRAKEHOLDER, BRAKE
-
4306743067-001 WASHER, 10.5X15X1.5WASHER, 10.5X15X1.5
-
4309543095-1203 HOSE, BRAKE, CLUTCHHOSE, BRAKE, CLUTCH
-
4901649016-1044 COVER, SEAL, MASTER CYLINDERCOVER, SEAL, MASTER CYLINDER
-
9200292002-1325 SCREW, 4X16SCREW, 4X16
-
92002A92002-1561 BOLT, LEVER SETBOLT, LEVER SET
-
92002B92002-1888 BOLT, OIL, L=23BOLT, OIL, L=23
-
9200992009-1440 SCREW, 5MMSCREW, 5MM
-
9201592015-1528 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
9202292022-1605 CIRCLIPCIRCLIP
-
92022A92022-1606 WASHER, PISTONWASHER, PISTON
-
9202892028-1310 BUSHING, MASTER CYLINDERBUSHING, MASTER CYLINDER
-
9206692066-1301 PLUGPLUG
-
9207292072-1197 BAND, L=365BAND, L=365
-
9215092150-1025 BOLT, SOCKET, 6MMBOLT, SOCKET, 6MM
