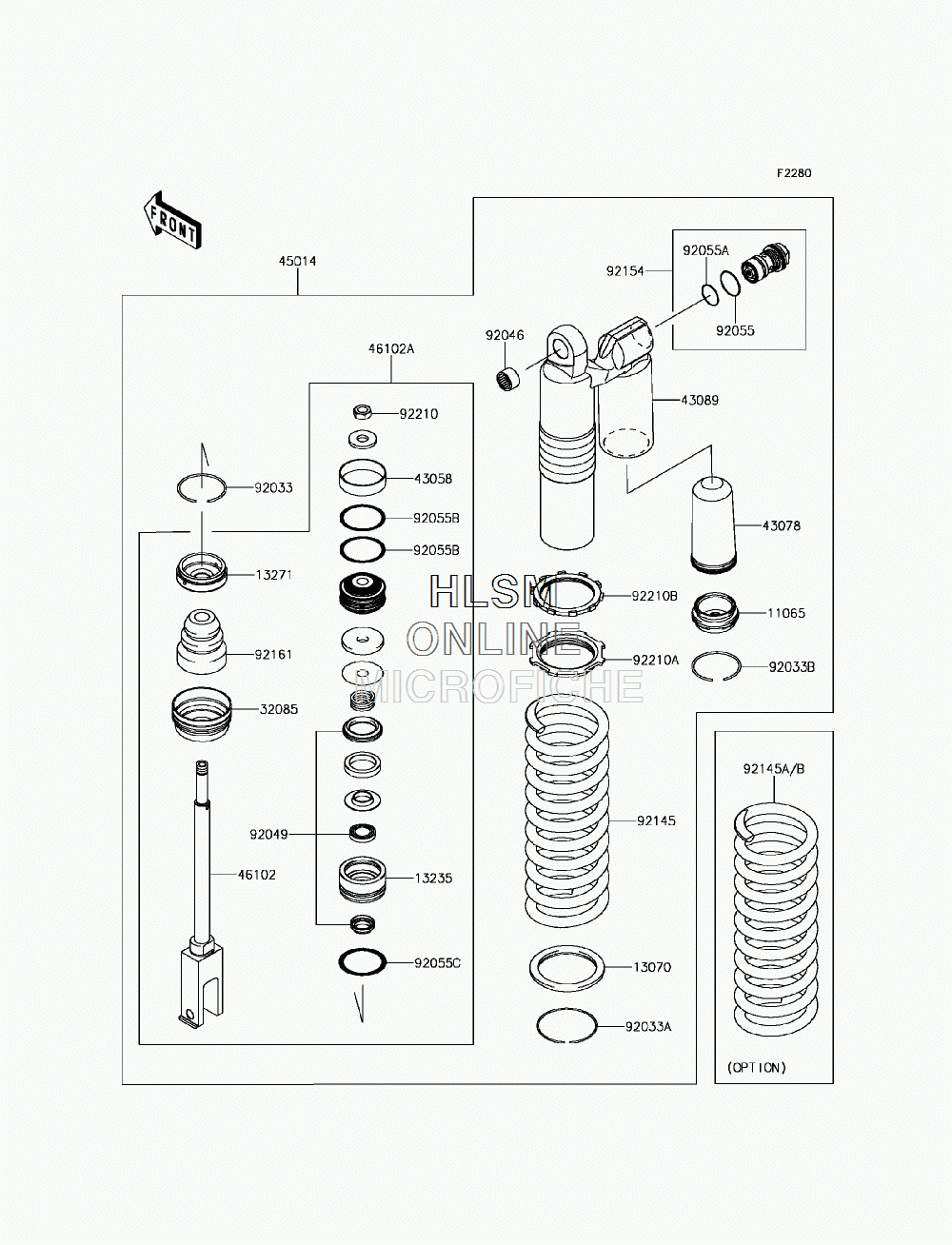

SUSPENSION - SHOCK ABSORBER для Kawasaki KX250F (KX252AHF) - 2017 года выпуска
-
№АртикулНазвание
-
1106511065-0340 CAP, CHAMBERCAP, CHAMBER
-
1307013070-0057 GUIDE, SPRING SEATGUIDE, SPRING SEAT
-
1323513235-0003 GUIDE-COMP, RODGUIDE-COMP, ROD
-
1327113271-0858 PLATE, ENDPLATE, END
-
3208532085-0077 STOPPER, SPRING SEATSTOPPER, SPRING SEAT
-
4305843058-0012 RING, PISTONRING, PISTON
-
4307843078-0030 RESERVOIRRESERVOIR
-
4308943089-0032 CYLINDER-SHOCKABSORBERCYLINDER-SHOCKABSORBER
-
4501445014-0555-52L SHOCKABSORBER, (BLACK/GREEN) (FOR 777)SHOCKABSORBER, (BLACK/GREEN) (FOR 777)
-
4610246102-0574 ROD, PISTONROD, PISTON
-
46102A46102-0620 ROD, PISTON COMPROD, PISTON COMP
-
9203392033-0040 RING-SNAPRING-SNAP
-
92033A92033-0042 RING-SNAPRING-SNAP
-
92033B92033-0076 RING-SNAPRING-SNAP
-
9204692046-1301 BEARING-NEEDLE, 7E-HVS16X22X12BEARING-NEEDLE, 7E-HVS16X22X12
-
9204992049-0151 SEAL-OILSEAL-OIL
-
9205592055-0098 RING-O, PLUG BOLTRING-O, PLUG BOLT
-
92055A92055-0099 RING-O, PLUG BOLTRING-O, PLUG BOLT
-
92055B92055-0100 RING-ORING-O
-
92055C92055-0101 RING-ORING-O
-
9214592145-1746-10 SPRING, REAR SHOCK, K=52N/MM, (BLACK) (FOR 777)SPRING, REAR SHOCK, K=52N/MM, (BLACK) (FOR 777)
-
92145A92145-1759-10 SPRING, REAR SHOCK, K=54N/MM, (BLACK) (OPTION) (FOR 777)SPRING, REAR SHOCK, K=54N/MM, (BLACK) (OPTION) (FOR 777)
-
92145B92145-1760-10 SPRING, REAR SHOCK, K=50N/MM, (BLACK) (OPTION) (FOR 777)SPRING, REAR SHOCK, K=50N/MM, (BLACK) (OPTION) (FOR 777)
-
9215492154-2174-50Y BOLT, ADJ., (G.B.GREEN) (FOR 777)BOLT, ADJ., (G.B.GREEN) (FOR 777)
-
9216192161-0329 DAMPER, STOPPERDAMPER, STOPPER
-
9221092210-0270 NUT, PISTONNUT, PISTON
-
92210A92210-0814 NUT, SPRING ADJUSTERNUT, SPRING ADJUSTER
-
92210B92210-0815 NUT, SPRING ADJUST NUTNUT, SPRING ADJUST NUT
