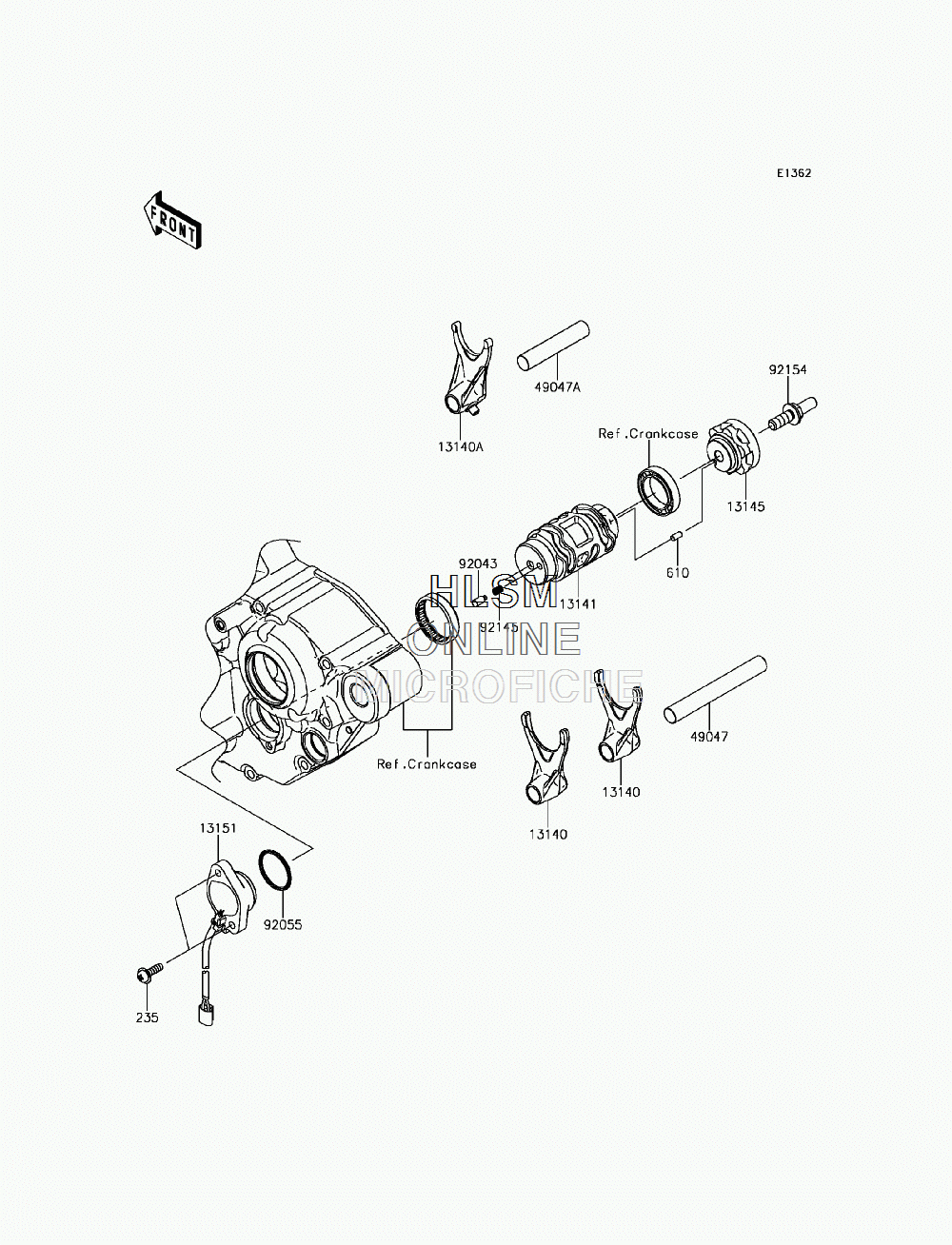

GEAR CHANGE DRUM W/ SHIFT FORK(S) для Kawasaki KX250F (KX252AHF) - 2017 года выпуска`
-
№АртикулНазвание
-
235235AB0516 SCREW-PAN-WP-CROS, 5X16SCREW-PAN-WP-CROS, 5X16
-
610610A0408 ROLLER, 4X8ROLLER, 4X8
-
1314013140-0655 FORK-SHIFT, OUTPUTFORK-SHIFT, OUTPUT
-
13140A13140-0656 FORK-SHIFT, INPUTFORK-SHIFT, INPUT
-
1314113141-0591 DRUM-CHANGEDRUM-CHANGE
-
1314513145-0565 CAM-CHANGE DRUMCAM-CHANGE DRUM
-
1315113151-0560 SWITCH-COMP, NEUTRALSWITCH-COMP, NEUTRAL
-
4904749047-0620 ROD-SHIFT, OUTPUT, L=94.5ROD-SHIFT, OUTPUT, L=94.5
-
49047A49047-0621 ROD-SHIFT, INPUT, L=63ROD-SHIFT, INPUT, L=63
-
9204392043-1654 PINPIN
-
9205592055-091 RING-O, 27.7X2.4RING-O, 27.7X2.4
-
9214592145-1414 SPRINGSPRING
-
9215492154-1883 BOLTBOLT
