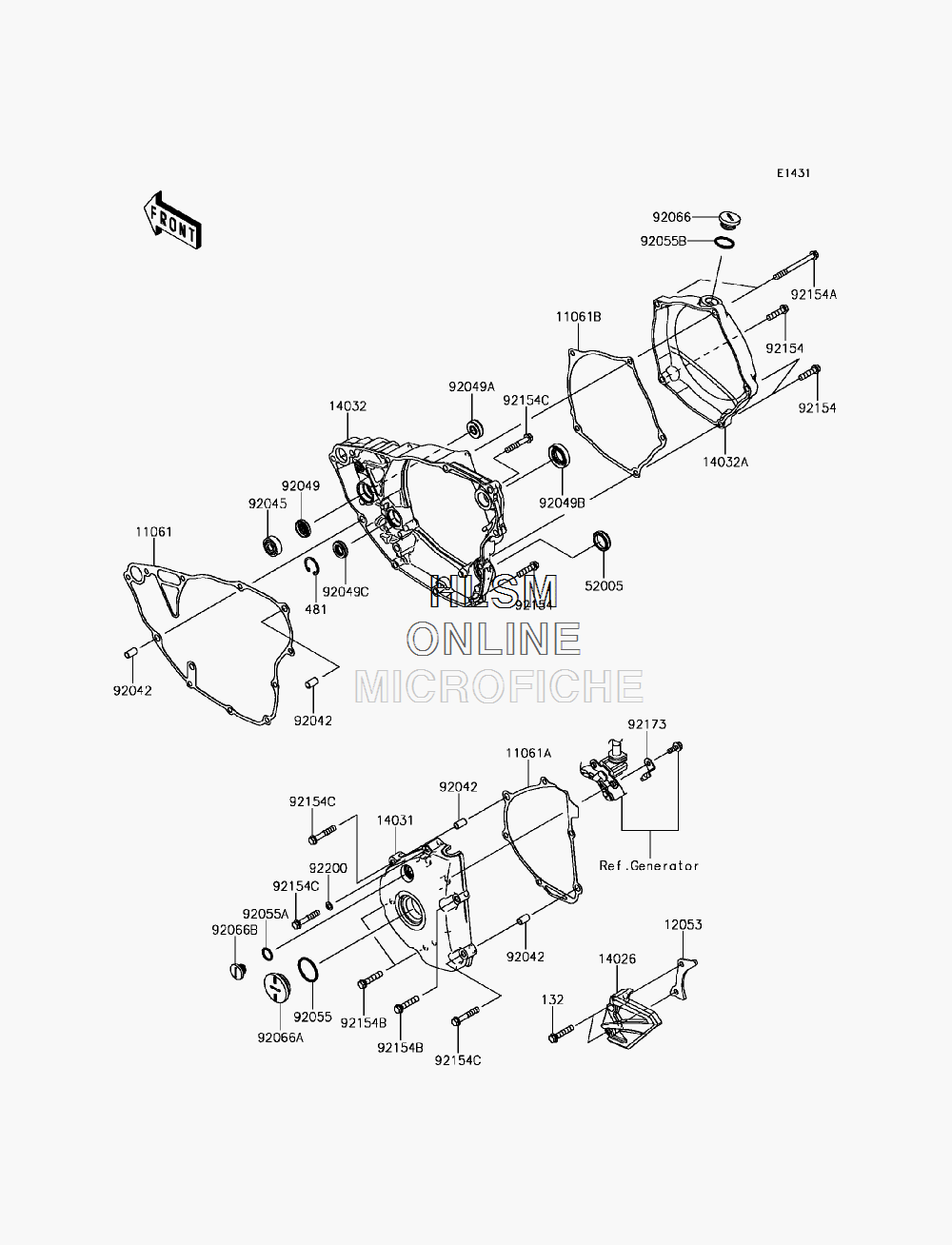

ENGINE COVER для Kawasaki KX250F (KX252AHF) - 2017 года выпуска`
-
№АртикулНазвание
-
132132BA0630 BOLT-FLANGED-SMALL, 6X30BOLT-FLANGED-SMALL, 6X30
-
481481J2200 CIRCLIP-TYPE-C, 22MMCIRCLIP-TYPE-C, 22MM
-
1106111061-1199 GASKET, INNERGASKET, INNER
-
11061A11061-1200 GASKET, GENERATORGASKET, GENERATOR
-
11061B11061-1201 GASKET, OUTERGASKET, OUTER
-
1205312053-0227 GUIDE-CHAINGUIDE-CHAIN
-
1402614026-0120 COVER-CHAINCOVER-CHAIN
-
1403114031-0605 COVER-GENERATORCOVER-GENERATOR
-
1403214032-0624 COVER-CLUTCH, INNERCOVER-CLUTCH, INNER
-
14032A14032-0626 COVER-CLUTCH, OUTERCOVER-CLUTCH, OUTER
-
5200552005-1009 GAUGE, OIL LEVELGAUGE, OIL LEVEL
-
9204292042-007 PIN, DOWEL, 6.3X8X14PIN, DOWEL, 6.3X8X14
-
9204592045-1123 BEARING-BALL, #628BEARING-BALL, #628
-
9204992049-0060 SEAL-OIL, SD 8 22 5 ZSSEAL-OIL, SD 8 22 5 ZS
-
92049A92049-0061 SEAL-OILSEAL-OIL
-
92049B92049-013 SEAL-OIL, SB18307SEAL-OIL, SB18307
-
92049C92049-0762 SEAL-OIL, TVCX13X22X5.5SEAL-OIL, TVCX13X22X5.5
-
9205592055-091 RING-O, 27.7X2.4RING-O, 27.7X2.4
-
92055A92055-1011 RING-O, 13.0X1.9RING-O, 13.0X1.9
-
92055B92055-1146 RING-O, 20X2RING-O, 20X2
-
9206692066-0833 PLUG, 18X9PLUG, 18X9
-
92066A92066-0834 PLUG, 30X8PLUG, 30X8
-
92066B92066-0835 PLUG, 12X9.1PLUG, 12X9.1
-
9215492154-0520 BOLT, FLANGED, 6X25BOLT, FLANGED, 6X25
-
92154A92154-1929 BOLT, FLANGED, 6X65BOLT, FLANGED, 6X65
-
92154B92154-1942 BOLT, FLANGED, 6X30BOLT, FLANGED, 6X30
-
92154C92154-2100 BOLT, FLANGED, 6X35BOLT, FLANGED, 6X35
-
9217392173-0058 CLAMP, HARNESSCLAMP, HARNESS
-
9220092200-0190 WASHER, 6.1X10.0X1.0WASHER, 6.1X10.0X1.0
