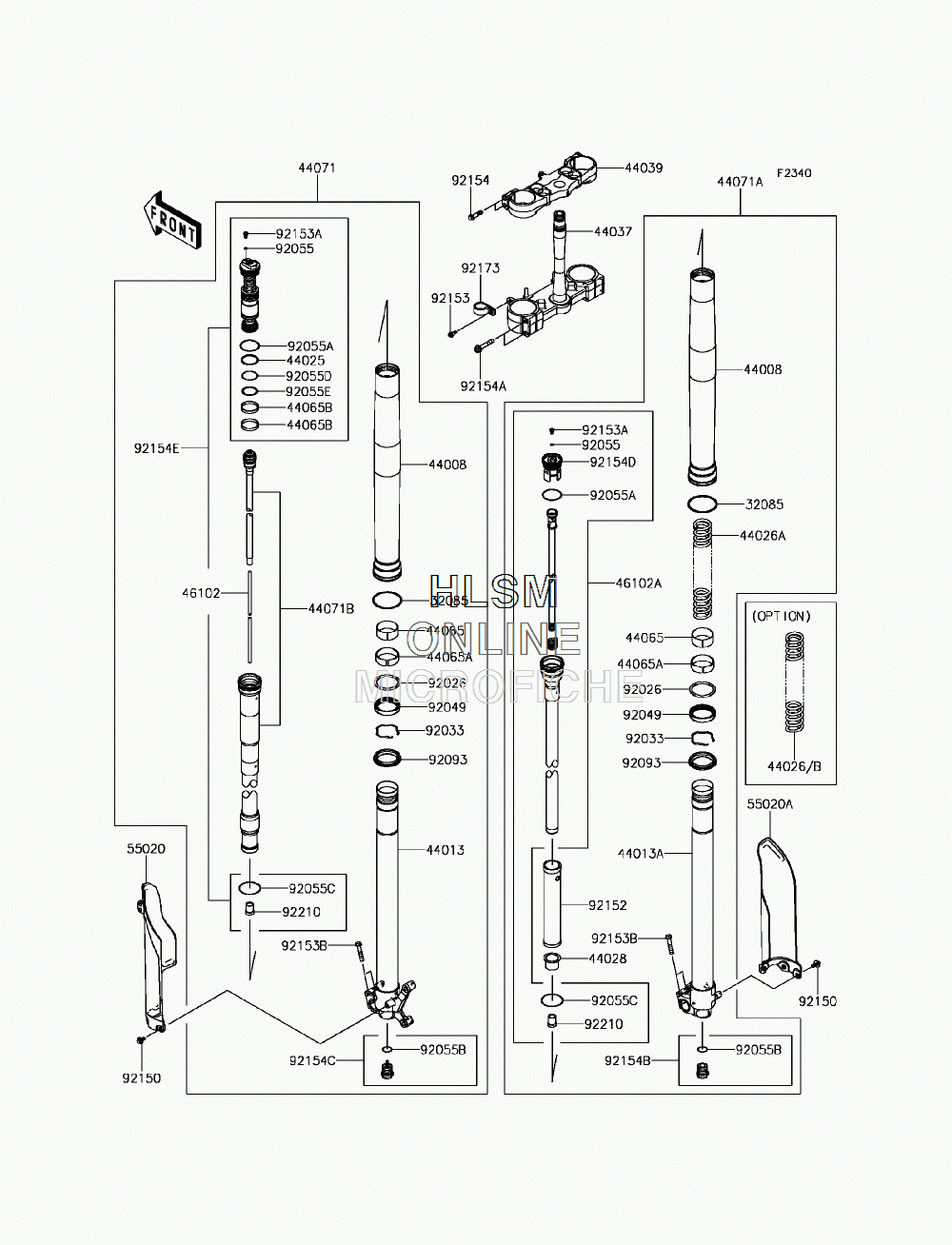

FRONT FORK для Kawasaki KX250F (KX252AHF) - 2017 года выпуска

  • №
    Артикул
    Название
  • 32085
    32085-0711 STOPPER
    STOPPER
  • 44008
    44008-0076 PIPE-FORK OUTER
    PIPE-FORK OUTER
  • 44013
    44013-0288 PIPE-FORK INNER, LEFT HAND
    PIPE-FORK INNER, LEFT HAND
  • 44013A
    44013-0289 PIPE-FORK INNER, RIGHT HAND
    PIPE-FORK INNER, RIGHT HAND
  • 44025
    44025-0052 RING-FORK PISTON
    RING-FORK PISTON
  • 44026
    44026-0168 SPRING-FRONT FORK (OPTION)
    SPRING-FRONT FORK (OPTION)
  • 44026A
    44026-0176 SPRING-FRONT FORK, K=9.8N/MM
    SPRING-FRONT FORK, K=9.8N/MM
  • 44026B
    44026-0213 SPRING-FRONT FORK, K=10.2N/MM (OPTION)
    SPRING-FRONT FORK, K=10.2N/MM (OPTION)
  • 44028
    44028-0055 GUIDE-FORK SPRING
    GUIDE-FORK SPRING
  • 44037
    44037-0170-21 HOLDER-FORK UNDER, (F.BLACK) (FOR 777)
    HOLDER-FORK UNDER, (F.BLACK) (FOR 777)
  • 44039
    44039-0143-21 HOLDER-FORK UPPER, (F.BLACK) (FOR 777)
    HOLDER-FORK UPPER, (F.BLACK) (FOR 777)
  • 44065
    44065-0059 BUSHING-FRONT FORK, SLIDE
    BUSHING-FRONT FORK, SLIDE
  • 44065A
    44065-0060 BUSHING-FRONT FORK, GUIDE
    BUSHING-FRONT FORK, GUIDE
  • 44065B
    44065-0061 BUSHING-FRONT FORK
    BUSHING-FRONT FORK
  • 44071
    44071-1189 DAMPER-ASSY, FORK, LEFT HAND
    DAMPER-ASSY, FORK, LEFT HAND
  • 44071A
    44071-1190 DAMPER-ASSY, FORK, RIGHT HAND
    DAMPER-ASSY, FORK, RIGHT HAND
  • 44071B
    44071-1217 DAMPER-ASSY, COMP
    DAMPER-ASSY, COMP
  • 46102
    46102-0579 ROD, PUSH
    ROD, PUSH
  • 46102A
    46102-0603-50Y ROD, JOINT, (G.B.GREEN) (FOR 777)
    ROD, JOINT, (G.B.GREEN) (FOR 777)
  • 55020
    55020-1938-6C GUARD, FORK, LEFT HAND, (EBONY) (FOR 777)
    GUARD, FORK, LEFT HAND, (EBONY) (FOR 777)
  • 55020A
    55020-1939-6C GUARD, FORK, RIGHT HAND, (EBONY) (FOR 777)
    GUARD, FORK, RIGHT HAND, (EBONY) (FOR 777)
  • 92026
    92026-0737 SPACER, SEAL
    SPACER, SEAL
  • 92033
    92033-0720 RING-SNAP
    RING-SNAP
  • 92049
    92049-0735 SEAL-OIL
    SEAL-OIL
  • 92055
    92055-0094 RING-O
    RING-O
  • 92055A
    92055-0131 RING-O
    RING-O
  • 92055B
    92055-0743 RING-O
    RING-O
  • 92055C
    92055-0744 RING-O
    RING-O
  • 92055D
    92055-0745 RING-O
    RING-O
  • 92055E
    92055-0746 RING-O
    RING-O
  • 92093
    92093-0584 SEAL, DUST
    SEAL, DUST
  • 92150
    92150-1340 BOLT, 6X14
    BOLT, 6X14
  • 92152
    92152-1652 COLLAR
    COLLAR
  • 92153
    92153-1397 BOLT, FLANGED
    BOLT, FLANGED
  • 92153A
    92153-1398 BOLT, PLUG
    BOLT, PLUG
  • 92153B
    92153-1399 BOLT, FLANGED, 8X40
    BOLT, FLANGED, 8X40
  • 92154
    92154-0463 BOLT
    BOLT
  • 92154A
    92154-0464 BOLT
    BOLT
  • 92154B
    92154-1057 BOLT, CENTER, RIGHT HAND
    BOLT, CENTER, RIGHT HAND
  • 92154C
    92154-1059 BOLT, CENTER, LEFT HAND
    BOLT, CENTER, LEFT HAND
  • 92154D
    92154-1569-50Y BOLT, ADJ., (G.B.GREEN) (FOR 777)
    BOLT, ADJ., (G.B.GREEN) (FOR 777)
  • 92154E
    92154-2175-50Y BOLT, FORK, (G.B.GREEN) (FOR 777)
    BOLT, FORK, (G.B.GREEN) (FOR 777)
  • 92173
    92173-1579 CLAMP
    CLAMP
  • 92210
    92210-0430 NUT, LOCK
    NUT, LOCK
