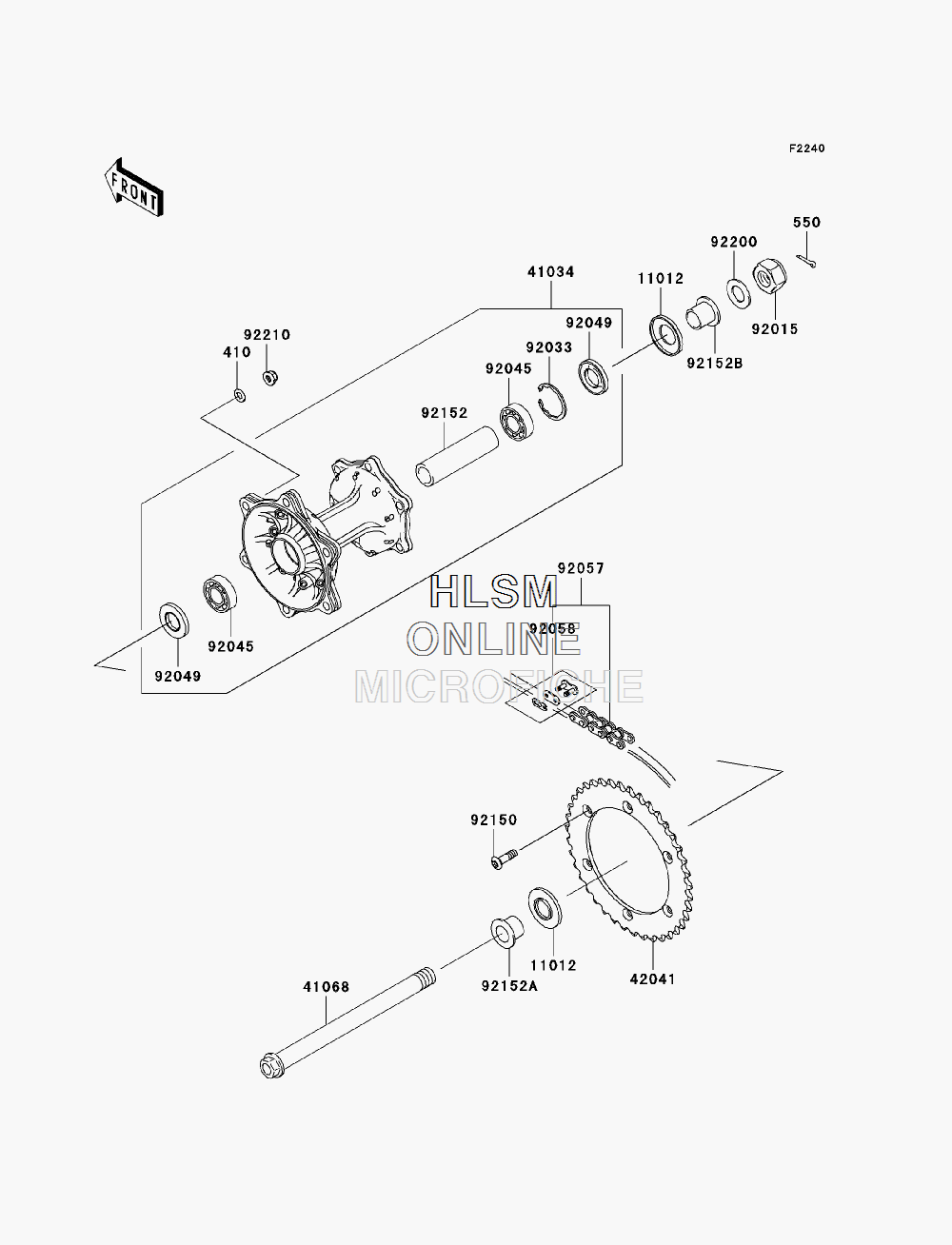

REAR HUB для Kawasaki KLX250SF (KLX250WAF) - 2009 года выпуска

  • №
    Артикул
    Название
  • 410
    410AA0800 WASHER-PLAIN-SMALL,8MM
    WASHER-PLAIN-SMALL,8MM
  • 550
    550AA3025 PIN-COTTER,3.0X25
    PIN-COTTER,3.0X25
  • 11012
    11012-1581 CAP,AXLE
    CAP,AXLE
  • 41034
    41034-0053-18R DRUM-ASSY, REAR BRAKE,BLACK
    DRUM-ASSY, REAR BRAKE,BLACK
  • 41068
    41068-0066 AXLE, REAR
    AXLE, REAR
  • 42041
    42041-1507 SPROCKET-HUB,39T
    SPROCKET-HUB,39T
  • 92015
    92015-1770 NUT,LOCK,20MM
    NUT,LOCK,20MM
  • 92033
    92033-1041 RING-SNAP,42MM
    RING-SNAP,42MM
  • 92045
    92045-1239 BEARING-BALL,6004X8JRLLX2/3A
    BEARING-BALL,6004X8JRLLX2/3A
  • 92049
    92049-1203 SEAL-OIL,BJNC2 25425
    SEAL-OIL,BJNC2 25425
  • 92057
    92057-1472 CHAIN,DRIVE,EK520LV-OX104L
    CHAIN,DRIVE,EK520LV-OX104L
  • 92058
    92058-1070 JOINT-CHAIN,DRIVE,EK
    JOINT-CHAIN,DRIVE,EK
  • 92150
    92150-1978 BOLT,SOCKET,8X28
    BOLT,SOCKET,8X28
  • 92152
    92152-0529 COLLAR, REAR BRAKE DRUM,L=105
    COLLAR, REAR BRAKE DRUM,L=105
  • 92152A
    92152-0734 COLLAR, REAR AXLE,L=22
    COLLAR, REAR AXLE,L=22
  • 92152B
    92152-0735 COLLAR, REAR AXLE, RIGHT HAND,L=20
    COLLAR, REAR AXLE, RIGHT HAND,L=20
  • 92200
    92200-1146 WASHER,20.2X36X2
    WASHER,20.2X36X2
  • 92210
    92210-0493 NUT,FLANGED,LOCK,8MM
    NUT,FLANGED,LOCK,8MM
