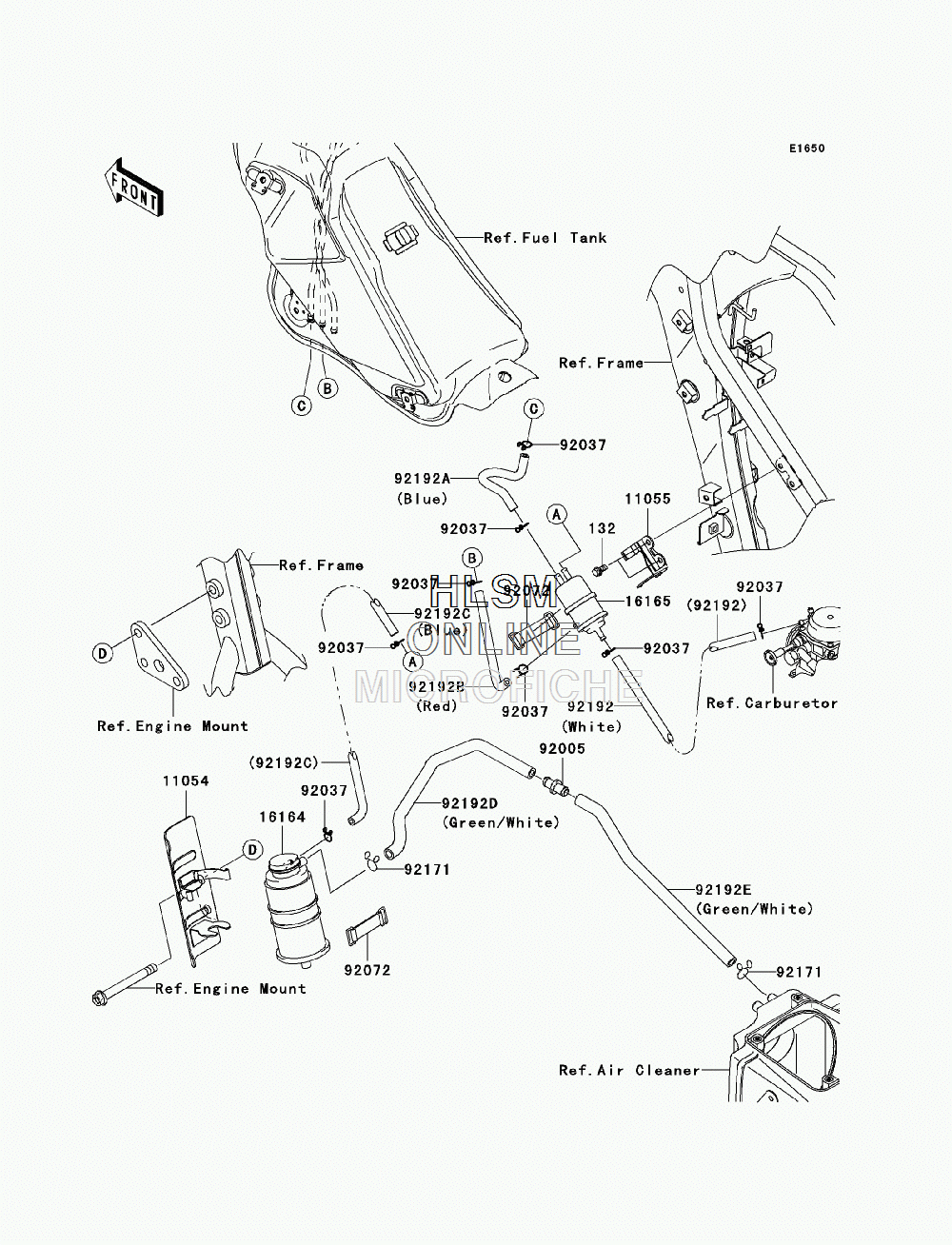

FUEL EVAPORATIVE SYSTEM (CALIF. ONLY) для Kawasaki KLX250SF (KLX250WAF) - 2009 года выпуска

  • №
    Артикул
    Название
  • 132
    132BB0612 BOLT-FLANGED-SMALL,6X12 (CALIF. ONLY)
    BOLT-FLANGED-SMALL,6X12 (CALIF. ONLY)
  • 11054
    11054-1638 BRACKET,CANISTER (CALIF. ONLY)
    BRACKET,CANISTER (CALIF. ONLY)
  • 11055
    11055-1149 BRACKET,SEPARATOR (CALIF. ONLY)
    BRACKET,SEPARATOR (CALIF. ONLY)
  • 16164
    16164-0006 CANISTER (CALIF. ONLY)
    CANISTER (CALIF. ONLY)
  • 16165
    16165-1001 SEPARATOR (CALIF. ONLY)
    SEPARATOR (CALIF. ONLY)
  • 92005
    92005-1379 FITTING (CALIF. ONLY)
    FITTING (CALIF. ONLY)
  • 92037
    92037-147 CLAMP,TUBE (CALIF. ONLY)
    CLAMP,TUBE (CALIF. ONLY)
  • 92072
    92072-1419 BAND,L=50 (CALIF. ONLY)
    BAND,L=50 (CALIF. ONLY)
  • 92171
    92171-1889 CLAMP (CALIF. ONLY)
    CLAMP (CALIF. ONLY)
  • 92192
    92192-0486 TUBE,CARB.-SEPARATOR,WHITE (CALIF. ONLY)
    TUBE,CARB.-SEPARATOR,WHITE (CALIF. ONLY)
  • 92192A
    92192-0722 TUBE,TANK-SEPARATOR,BLUE (CALIF. ONLY)
    TUBE,TANK-SEPARATOR,BLUE (CALIF. ONLY)
  • 92192B
    92192-0723 TUBE,SEPARATOR-TANK, RED (CALIF. ONLY)
    TUBE,SEPARATOR-TANK, RED (CALIF. ONLY)
  • 92192C
    92192-0724 TUBE,SEPARATOR-CANISTER,BLUE (CALIF. ONLY)
    TUBE,SEPARATOR-CANISTER,BLUE (CALIF. ONLY)
  • 92192D
    92192-0725 TUBE,CANISTER-FITTING,GRN/WHT (CALIF. ONLY)
    TUBE,CANISTER-FITTING,GRN/WHT (CALIF. ONLY)
  • 92192E
    92192-0726 TUBE,FITTING-A/C,GRN/WHT (CALIF. ONLY)
    TUBE,FITTING-A/C,GRN/WHT (CALIF. ONLY)
