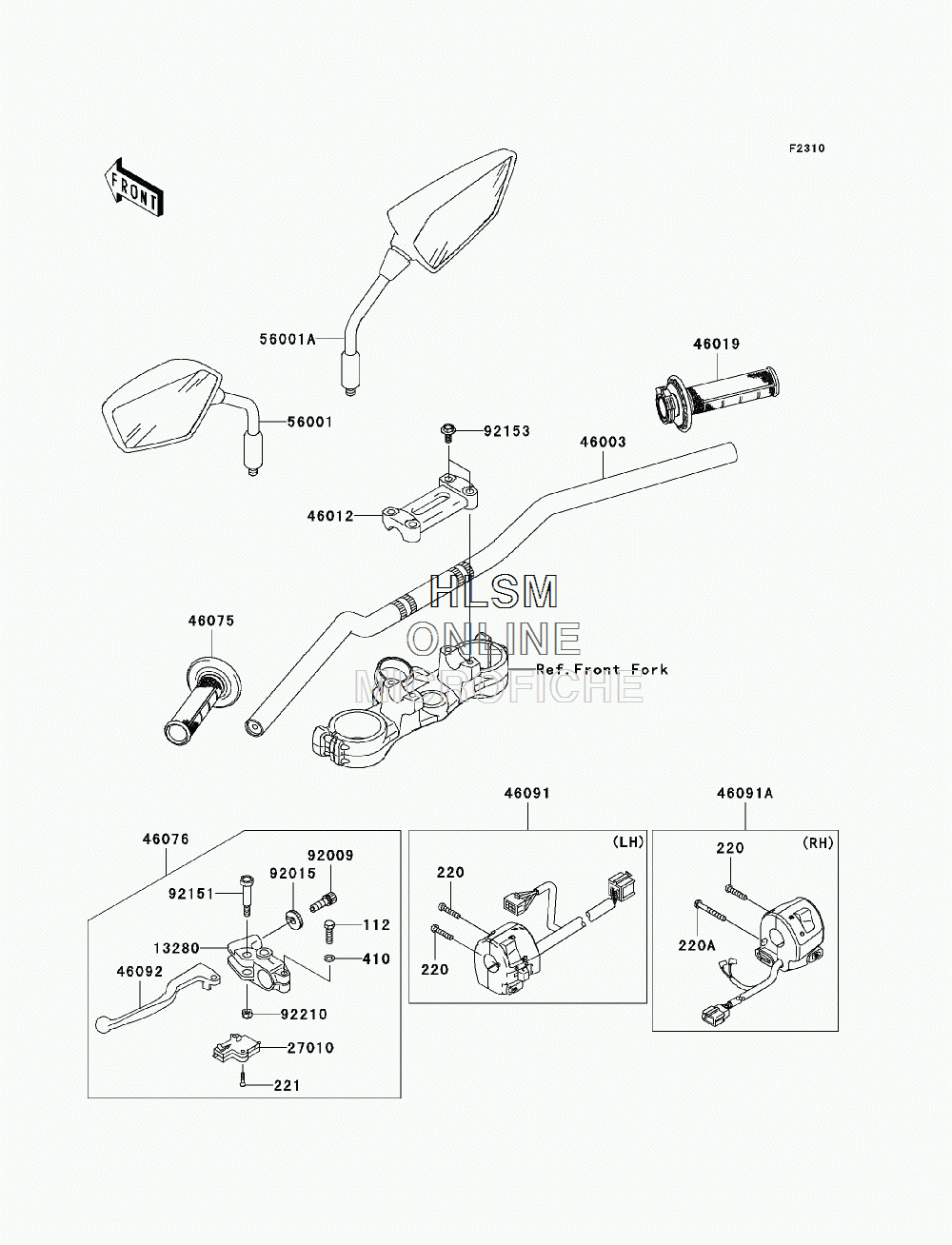

HANDLEBAR для Kawasaki KLX250SF (KLX250WAF) - 2009 года выпуска

  • №
    Артикул
    Название
  • 112
    112BB0622 BOLT-UPSET,6X22
    BOLT-UPSET,6X22
  • 220
    220AB0525 SCREW-PAN-CROS,5X25
    SCREW-PAN-CROS,5X25
  • 220A
    220AB0540 SCREW-PAN-CROSS,5X40
    SCREW-PAN-CROSS,5X40
  • 221
    221AB0316 SCREW-CSK-CROS,3X16
    SCREW-CSK-CROS,3X16
  • 410
    410AB0600 WASHER-PLAIN-SMALL,6MM
    WASHER-PLAIN-SMALL,6MM
  • 13280
    13280-0105 HOLDER,CLUTCH LEVER
    HOLDER,CLUTCH LEVER
  • 27010
    27010-1094 SWITCH,CLUTCH,BLACK
    SWITCH,CLUTCH,BLACK
  • 46003
    46003-0147-458 HANDLE,P.SILVER
    HANDLE,P.SILVER
  • 46012
    46012-0010-18R HOLDER-HANDLE,UPP,F.S.BLACK
    HOLDER-HANDLE,UPP,F.S.BLACK
  • 46019
    46019-0026 GRIP-ASSY,THROTTLE
    GRIP-ASSY,THROTTLE
  • 46075
    46075-0082 GRIP, LEFT HAND
    GRIP, LEFT HAND
  • 46076
    46076-1244 LEVER-ASSY-GRIP,CLUTCH
    LEVER-ASSY-GRIP,CLUTCH
  • 46091
    46091-0163 HOUSING-ASSY-CONTROL, LEFT HAND
    HOUSING-ASSY-CONTROL, LEFT HAND
  • 46091A
    46091-0180 HOUSING-ASSY-CONTROL, RIGHT HAND
    HOUSING-ASSY-CONTROL, RIGHT HAND
  • 46092
    46092-1206 LEVER-GRIP,CLUTCH
    LEVER-GRIP,CLUTCH
  • 56001
    56001-0092 MIREAROR-ASSY, LEFT HAND
    MIREAROR-ASSY, LEFT HAND
  • 56001A
    56001-0093 MIREAROR-ASSY, RIGHT HAND
    MIREAROR-ASSY, RIGHT HAND
  • 92009
    92009-1134 SCREW,CABLE ADJUST,8MM,BLACK
    SCREW,CABLE ADJUST,8MM,BLACK
  • 92015
    92015-1197 NUT,CABLE ADJUST LOCK,8MM,BLK
    NUT,CABLE ADJUST LOCK,8MM,BLK
  • 92151
    92151-1986 BOLT, LEVER SET
    BOLT, LEVER SET
  • 92153
    92153-1519 BOLT,FLANGED,8X30
    BOLT,FLANGED,8X30
  • 92210
    92210-0006 NUT,LOCK,6MM
    NUT,LOCK,6MM
