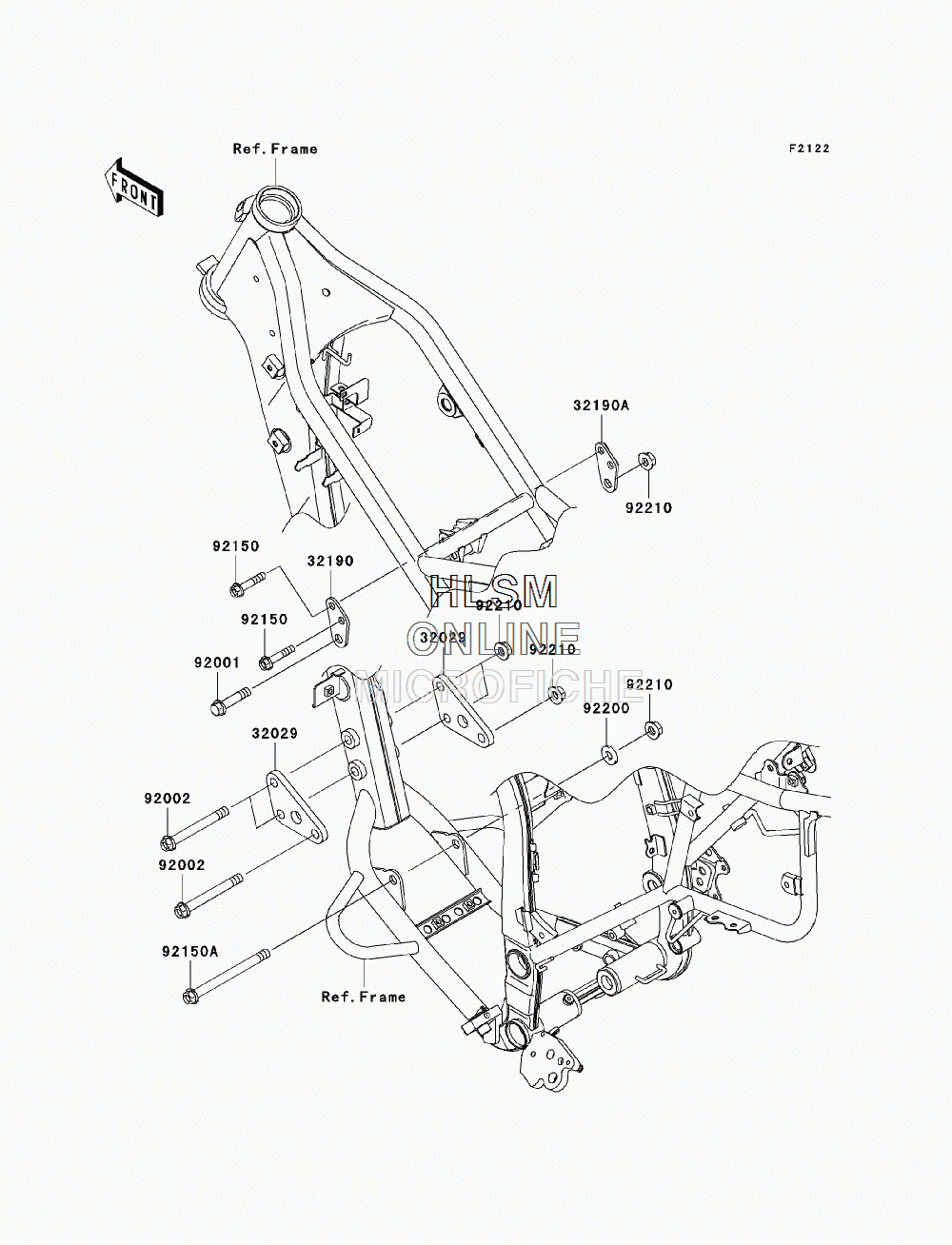

ENGINE MOUNT для Kawasaki KLX250SF (KLX250WAF) - 2009 года выпуска
-
№АртикулНазвание
-
3202932029-1855 BRACKET-ENGINE, FRONTBRACKET-ENGINE, FRONT
-
3219032190-0416 BRACKET-ENGINE,HEAD, LEFT HANDBRACKET-ENGINE,HEAD, LEFT HAND
-
32190A32190-0417 BRACKET-ENGINE,HEAD, RIGHT HANDBRACKET-ENGINE,HEAD, RIGHT HAND
-
9200192001-1499 BOLT,FLANGED,10X44BOLT,FLANGED,10X44
-
9200292002-1674 BOLT,10X90BOLT,10X90
-
9215092150-1168 BOLT,FLANGED,8X40BOLT,FLANGED,8X40
-
92150A92150-1642 BOLT,FLANGED,10X120BOLT,FLANGED,10X120
-
9220092200-0211 WASHER,10.2X23.0X2.5WASHER,10.2X23.0X2.5
-
9221092210-1080 NUT,LOCK,FLANGED,10MMNUT,LOCK,FLANGED,10MM
