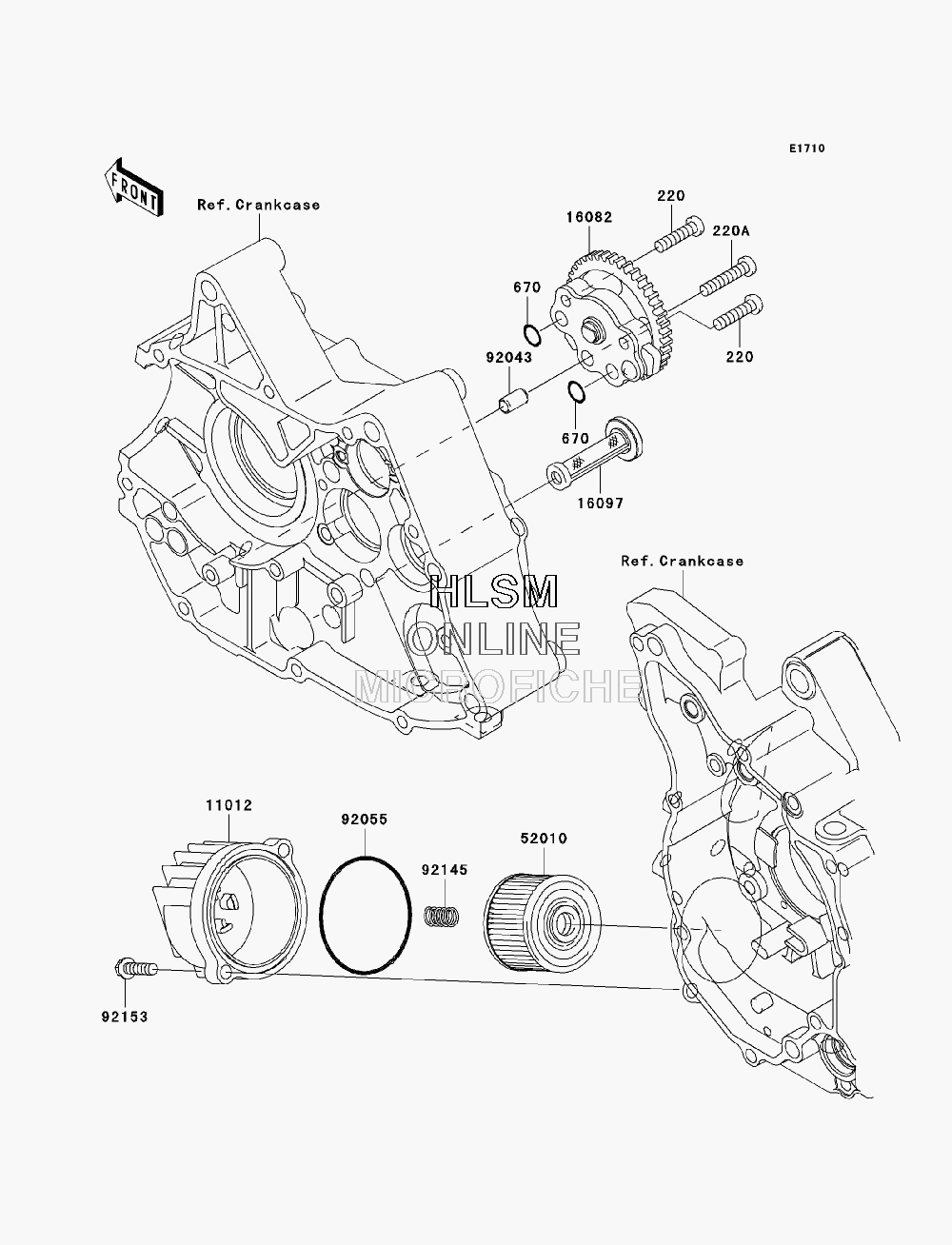

OIL PUMP для Kawasaki KL110 (KLX110A6F) - 2006 года выпуска`
-
№АртикулНазвание
-
220220AA0625 SCREW-PAN-CROSS, 6X25SCREW-PAN-CROSS, 6X25
-
220A220AA0630 SCREW-PAN-CROSS, 6X30SCREW-PAN-CROSS, 6X30
-
670670B1510 O RING, 10MMO RING, 10MM
-
1101211012-1980 CAPCAP
-
1608216082-1052 PUMP-ASSY-OILPUMP-ASSY-OIL
-
1609716097-1071 FILTER-ASSY-OILFILTER-ASSY-OIL
-
5201052010-1053 ELEMENT-OIL FILTERELEMENT-OIL FILTER
-
9204392043-1263 PIN, 6.2X8X14PIN, 6.2X8X14
-
9205592055-3018 RING-O, 59.6X2.4RING-O, 59.6X2.4
-
9214592145-1091 SPRINGSPRING
-
9215392153-1184 BOLT, 6X20BOLT, 6X20
