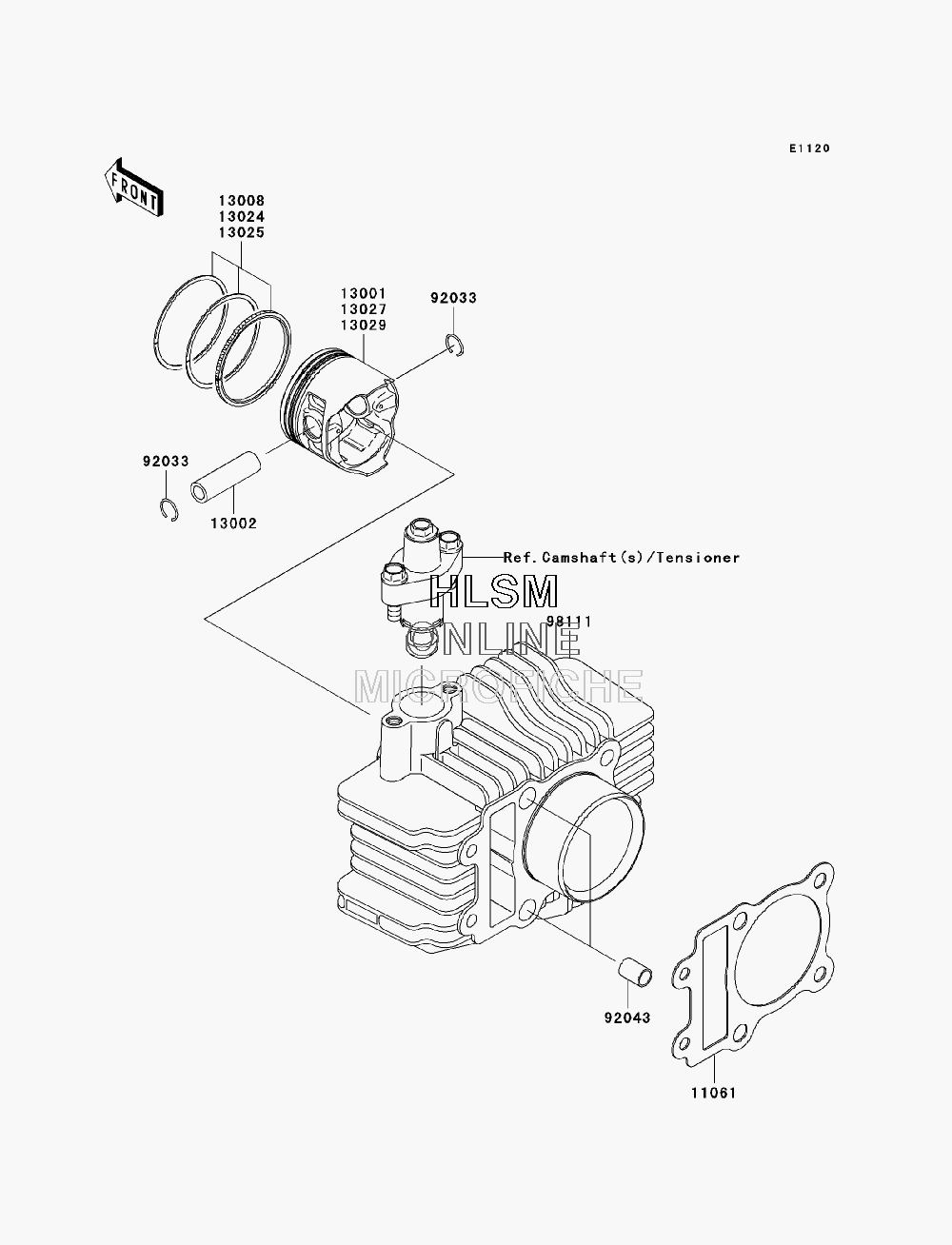

CYLINDER - PISTON(S) для Kawasaki KL110 (KLX110A6F) - 2006 года выпуска`
-
№АртикулНазвание
-
1106111061-0124 GASKET, CYLINDER BASEGASKET, CYLINDER BASE
-
1300113001-1512 PISTON-ENGINE, STDPISTON-ENGINE, STD
-
1300213002-1123 PIN-PISTONPIN-PISTON
-
1300813008-1189 RING-SET-PISTON, STDRING-SET-PISTON, STD
-
1302413024-1119 RING-SET-PISTON LL, O/S 1.00RING-SET-PISTON LL, O/S 1.00
-
1302513025-1148 RING-SET-PISTON L, O/S 0.50RING-SET-PISTON L, O/S 0.50
-
1302713027-1198 PISTON-ENGINE LL, O/S 1.00PISTON-ENGINE LL, O/S 1.00
-
1302913029-1255 PISTON-ENGINE L, O/S 0.50PISTON-ENGINE L, O/S 0.50
-
9203392033-1072 RING-SNAPRING-SNAP
-
9204392043-1264 PIN, 8.2X10X14PIN, 8.2X10X14
-
9811198111-1083 CYLINDER-COMP-ENGINECYLINDER-COMP-ENGINE
