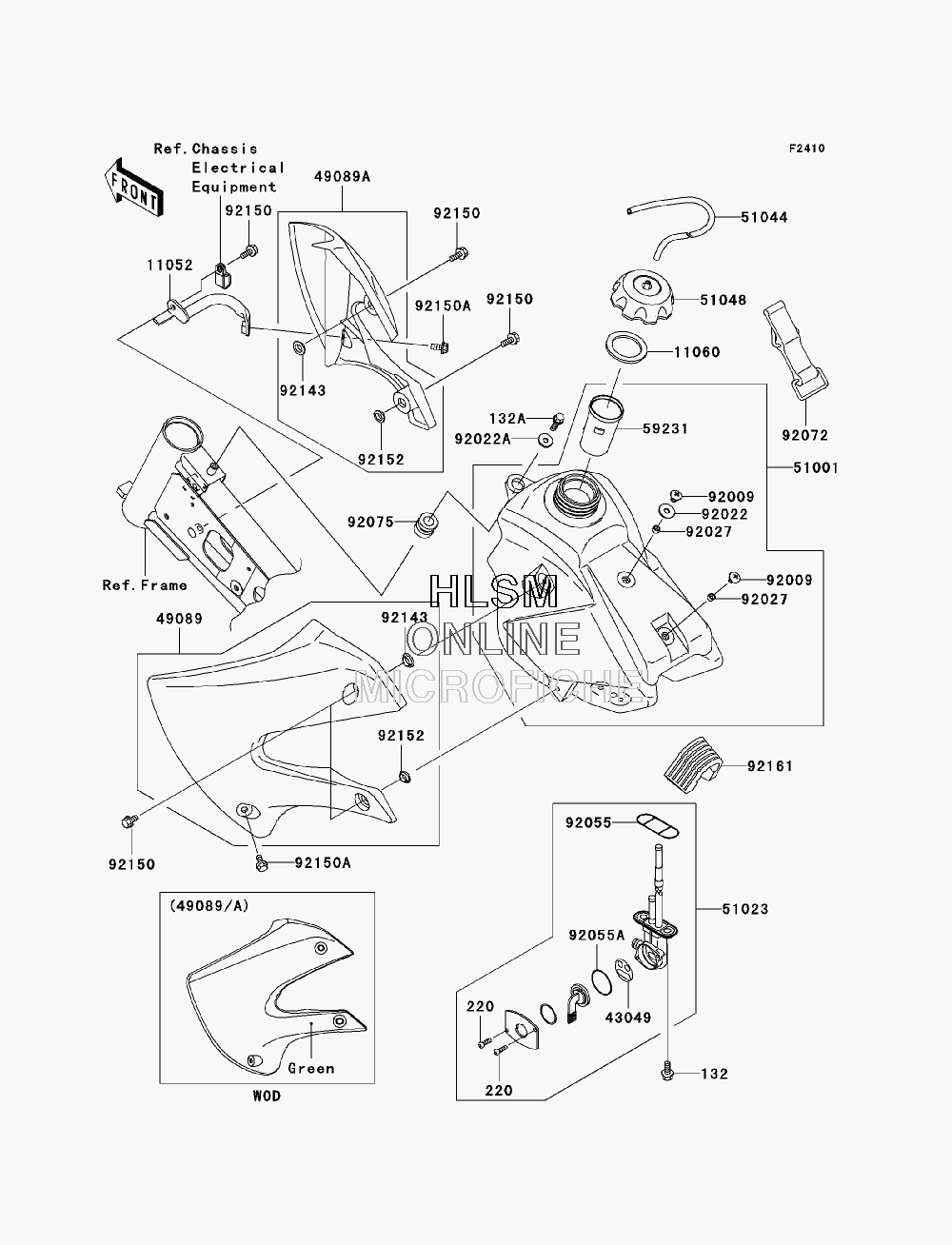

FUEL TANK для Kawasaki KL110 (KLX110A6F) - 2006 года выпуска

  • №
    Артикул
    Название
  • 132
    132BA0612 BOLT-FLANGED-SMALL, 6X12
    BOLT-FLANGED-SMALL, 6X12
  • 132A
    132BA0614 BOLT-FLANGED-SMALL, 6X14
    BOLT-FLANGED-SMALL, 6X14
  • 220
    220AA0308 SCREW-PAN-CROS, 3X8
    SCREW-PAN-CROS, 3X8
  • 11052
    11052-1639 BRACKET, SHROUD, RIGHT HAND
    BRACKET, SHROUD, RIGHT HAND
  • 11060
    11060-1340 GASKET, FUEL TANK CAP
    GASKET, FUEL TANK CAP
  • 43049
    43049-1091 PACKING, TAP VALVE
    PACKING, TAP VALVE
  • 49089
    49089-1144-290 SHROUD-ENGINE, LEFT HAND, L.GREEN (FOR 777)
    SHROUD-ENGINE, LEFT HAND, L.GREEN (FOR 777)
  • 49089A
    49089-1145-290 SHROUD-ENGINE, RIGHT HAND, L.GREEN (FOR 777)
    SHROUD-ENGINE, RIGHT HAND, L.GREEN (FOR 777)
  • 51001
    51001-1676-6Z TANK-COMP-FUEL, F.BLACK
    TANK-COMP-FUEL, F.BLACK
  • 51023
    51023-1342 TAP-ASSY, FUEL
    TAP-ASSY, FUEL
  • 51044
    51044-1185 TUBE-ASSY
    TUBE-ASSY
  • 51048
    51048-0014 CAP-ASSY-TANK, FUEL
    CAP-ASSY-TANK, FUEL
  • 59231
    59231-1096 FILLER
    FILLER
  • 92009
    92009-1530 SCREW, 6X10
    SCREW, 6X10
  • 92022
    92022-165 WASHER, PLAIN, 6MM
    WASHER, PLAIN, 6MM
  • 92022A
    92022-1690 WASHER, 6.5X24X2
    WASHER, 6.5X24X2
  • 92027
    92027-2096 COLLAR, 6.2X7.8X5
    COLLAR, 6.2X7.8X5
  • 92055
    92055-1348 RING-O, FUEL TAP PACKING
    RING-O, FUEL TAP PACKING
  • 92055A
    92055-1419 RING-O, TAP LEVER
    RING-O, TAP LEVER
  • 92072
    92072-1229 BAND, FUEL TANK
    BAND, FUEL TANK
  • 92075
    92075-1787 DAMPER
    DAMPER
  • 92143
    92143-1196 COLLAR
    COLLAR
  • 92150
    92150-1435 BOLT, 6X12
    BOLT, 6X12
  • 92150A
    92150-1506 BOLT, FLANGED, 6X16
    BOLT, FLANGED, 6X16
  • 92152
    92152-1235 COLLAR
    COLLAR
  • 92161
    92161-1077 DAMPER, FUEL TANK, REAR
    DAMPER, FUEL TANK, REAR
