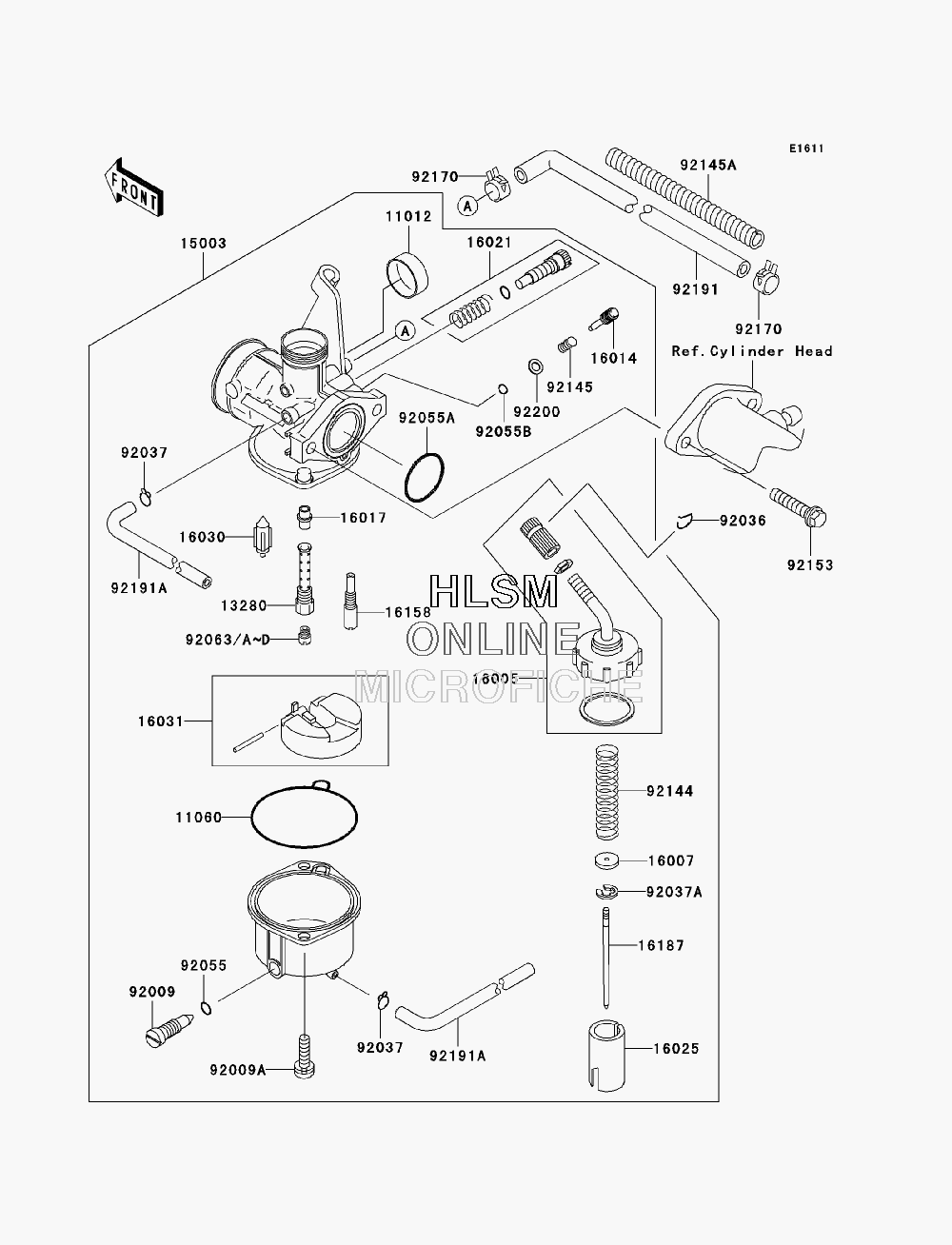

CARBURETOR (US ONLY) для Kawasaki KL110 (KLX110A6F) - 2006 года выпуска

  • №
    Артикул
    Название
  • 11012
    11012-1940 CAP, CHOKE (USA ONLY)
    CAP, CHOKE (USA ONLY)
  • 11060
    11060-1700 GASKET, FLOAT CHAMBER (USA ONLY)
    GASKET, FLOAT CHAMBER (USA ONLY)
  • 13280
    13280-1092 HOLDER, NEEDLE JET (USA ONLY)
    HOLDER, NEEDLE JET (USA ONLY)
  • 15003
    15003-0097 CARBURETOR-ASSY (USA ONLY)
    CARBURETOR-ASSY (USA ONLY)
  • 16005
    16005-1091 TOP-CHAMBER (USA ONLY)
    TOP-CHAMBER (USA ONLY)
  • 16007
    16007-1103 SEAT-SPRING (USA ONLY)
    SEAT-SPRING (USA ONLY)
  • 16014
    16014-0011 SCREW-PILOT AIR (USA ONLY)
    SCREW-PILOT AIR (USA ONLY)
  • 16017
    16017-1434 JET-NEEDLE (USA ONLY)
    JET-NEEDLE (USA ONLY)
  • 16021
    16021-1241 SCREW-THROTTLE STOP (USA ONLY)
    SCREW-THROTTLE STOP (USA ONLY)
  • 16025
    16025-1209 VALVE-THROTTLE, CA3.0 (USA ONLY)
    VALVE-THROTTLE, CA3.0 (USA ONLY)
  • 16030
    16030-0002 VALVE-FLOAT, FLOAT (USA ONLY)
    VALVE-FLOAT, FLOAT (USA ONLY)
  • 16031
    16031-1088 FLOAT (USA ONLY)
    FLOAT (USA ONLY)
  • 16158
    16158-1063 JET-SLOW (USA ONLY)
    JET-SLOW (USA ONLY)
  • 16187
    16187-1228 NEEDLE-JET, NCFA (USA ONLY)
    NEEDLE-JET, NCFA (USA ONLY)
  • 92009
    92009-1057 SCREW, DRAIN (USA ONLY)
    SCREW, DRAIN (USA ONLY)
  • 92009A
    92009-1750 SCREW (USA ONLY)
    SCREW (USA ONLY)
  • 92036
    92036-018 RING-SNAP (USA ONLY)
    RING-SNAP (USA ONLY)
  • 92037
    92037-1142 CLAMP, TUBE (USA ONLY)
    CLAMP, TUBE (USA ONLY)
  • 92037A
    92037-1401 CLAMP, JET NEEDLE (USA ONLY)
    CLAMP, JET NEEDLE (USA ONLY)
  • 92055
    92055-1053 RING-O (USA ONLY)
    RING-O (USA ONLY)
  • 92055A
    92055-1541 RING-O (USA ONLY)
    RING-O (USA ONLY)
  • 92055B
    92055-1542 RING-O (USA ONLY)
    RING-O (USA ONLY)
  • 92063
    92063-1326 JET-MAIN, #85 (USA ONLY) (OPTION)
    JET-MAIN, #85 (USA ONLY) (OPTION)
  • 92063A
    92063-1393 JET-MAIN, #78 (USA ONLY) (OPTION)
    JET-MAIN, #78 (USA ONLY) (OPTION)
  • 92063B
    92063-1395 JET-MAIN, #75 (USA ONLY) (OPTION)
    JET-MAIN, #75 (USA ONLY) (OPTION)
  • 92063C
    92063-1396 JET-MAIN, #80 (USA ONLY)
    JET-MAIN, #80 (USA ONLY)
  • 92063D
    92063-1397 JET-MAIN, #82 (USA ONLY) (OPTION)
    JET-MAIN, #82 (USA ONLY) (OPTION)
  • 92144
    92144-1875 SPRING, THROTTLE (USA ONLY)
    SPRING, THROTTLE (USA ONLY)
  • 92145
    92145-0004 SPRING (USA ONLY)
    SPRING (USA ONLY)
  • 92145A
    92145-1481 SPRING, HOSE PROTECTER (USA ONLY)
    SPRING, HOSE PROTECTER (USA ONLY)
  • 92153
    92153-1309 BOLT, FLANGED-SMALL, 6X28 (USA ONLY)
    BOLT, FLANGED-SMALL, 6X28 (USA ONLY)
  • 92170
    92170-1872 CLAMP (USA ONLY)
    CLAMP (USA ONLY)
  • 92191
    92191-1700 TUBE, FUEL (USA ONLY)
    TUBE, FUEL (USA ONLY)
  • 92191A
    92191-1735 TUBE, 3.5X6.5X418 (USA ONLY)
    TUBE, 3.5X6.5X418 (USA ONLY)
  • 92200
    92200-1270 WASHER (USA ONLY)
    WASHER (USA ONLY)
