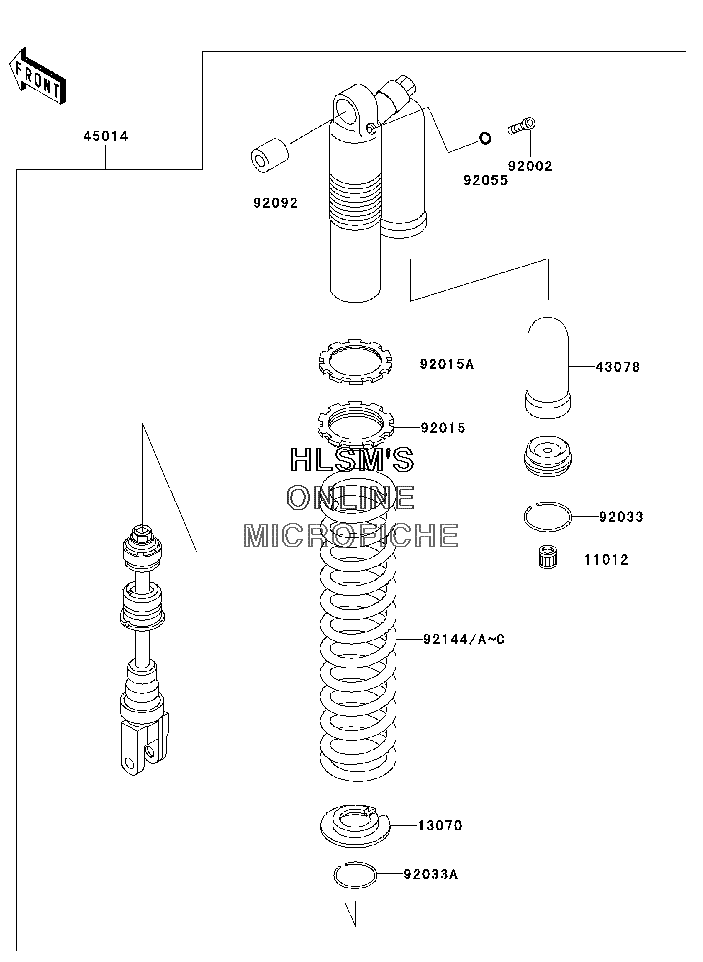

SUSPENSION - SHOCK ABSORBER для Kawasaki KDX 200 - 2006 года выпуска`
-
№АртикулНазвание
-
1101211012-1391 CAP, VALVE AIRCAP, VALVE AIR
-
1307013070-1165 GUIDE, SPRINGGUIDE, SPRING
-
4307843078-1094 RESERVOIR, SHOCKABSORBERRESERVOIR, SHOCKABSORBER
-
4501445014-5021 SHOCKABSORBERSHOCKABSORBER
-
9200292002-1955 BOLT, DRAINBOLT, DRAIN
-
9201592015-1703 NUT, SPRING ADJUSTNUT, SPRING ADJUST
-
92015A92015-1704 NUT, SPRING ADJUST LOCKNUT, SPRING ADJUST LOCK
-
9203392033-1209 RING, SNAPRING, SNAP
-
92033A92033-1228 RING, SNAP, SHOCKABSORBERRING, SNAP, SHOCKABSORBER
-
9205592055-1383 O-RINGO-RING
-
9209292092-1062 BUSHING, RUBBER, SHOCKABSORBERBUSHING, RUBBER, SHOCKABSORBER
-
9214492144-1830-8V SPRING, SHOCKABSORBER, K=5.0, SILSPRING, SHOCKABSORBER, K=5.0, SIL
-
92144A92144-1837-8V SPRING, SHOCKABSORBER, K=4.8, SIL (OPT)SPRING, SHOCKABSORBER, K=4.8, SIL (OPT)
-
92144B92144-1838-8V SPRING, SHOCKABSORBER, K=5.2, SIL (OPT)SPRING, SHOCKABSORBER, K=5.2, SIL (OPT)
-
92144C92144-1839-8V SPRING, SHOCKABSORBER, K=5.4, SIL (OPT)SPRING, SHOCKABSORBER, K=5.4, SIL (OPT)
