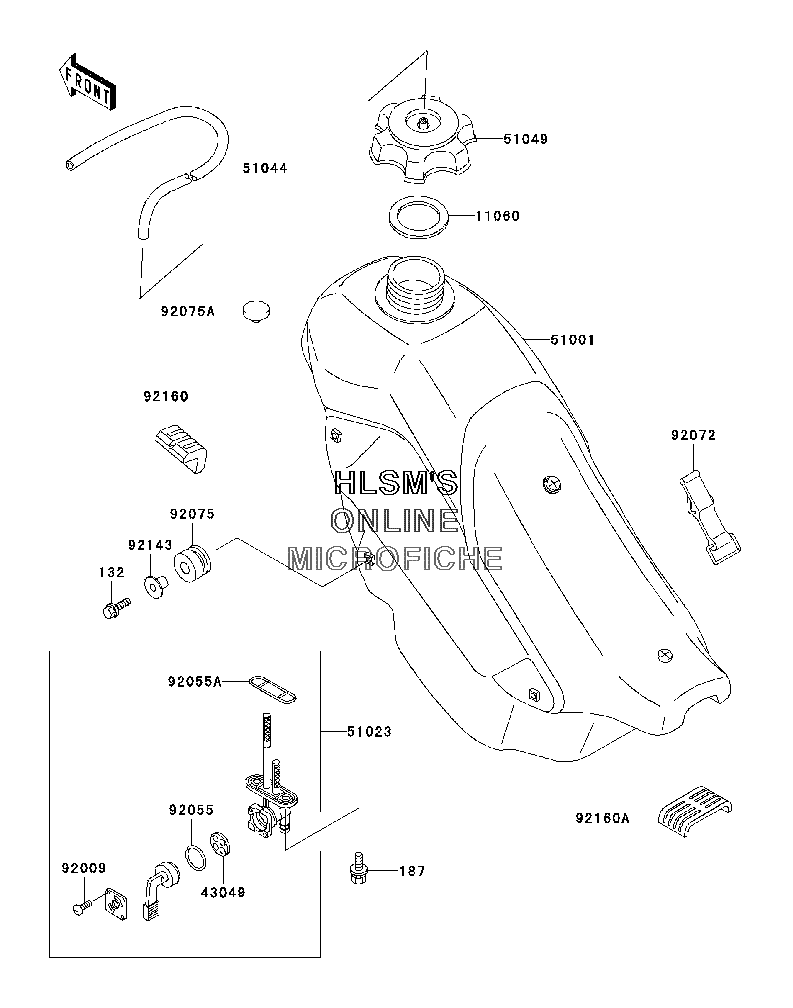

FUEL TANK для Kawasaki KDX 200 - 2006 года выпуска

  • №
    Артикул
    Название
  • 132
    132G0620 BOLT, FLANGED, SMALL, 6X20
    BOLT, FLANGED, SMALL, 6X20
  • 187
    187B0616 BOLT, UPSET, WSP, 6X16
    BOLT, UPSET, WSP, 6X16
  • 11060
    11060-1340 GASKET, FUEL TANK CAP
    GASKET, FUEL TANK CAP
  • 43049
    43049-1102 PACKING, VALVE
    PACKING, VALVE
  • 51001
    51001-1668-6Z TANK, COMP, FUEL (F.BLACK)
    TANK, COMP, FUEL (F.BLACK)
  • 51023
    51023-1359 TAP, ASSY, FUEL
    TAP, ASSY, FUEL
  • 51044
    51044-1185 TUBE, ASSY
    TUBE, ASSY
  • 51049
    51049-1108 CAP, TANK, FUEL
    CAP, TANK, FUEL
  • 92009
    92009-1123 SCREW, 3X5
    SCREW, 3X5
  • 92055
    92055-1111 O-RING, FUEL TAP LEVER
    O-RING, FUEL TAP LEVER
  • 92055A
    92055-1348 O-RING, FUEL TAP PACKING
    O-RING, FUEL TAP PACKING
  • 92072
    92072-1229 BAND, FUEL TANK
    BAND, FUEL TANK
  • 92075
    92075-1123 DAMPER, RUBBER
    DAMPER, RUBBER
  • 92075A
    92075-281 DAMPER
    DAMPER
  • 92143
    92143-1353 COLLAR
    COLLAR
  • 92160
    92160-1328 DAMPER, FUEL TANK
    DAMPER, FUEL TANK
  • 92160A
    92160-1397 DAMPER, FUEL TANK, REAR
    DAMPER, FUEL TANK, REAR
