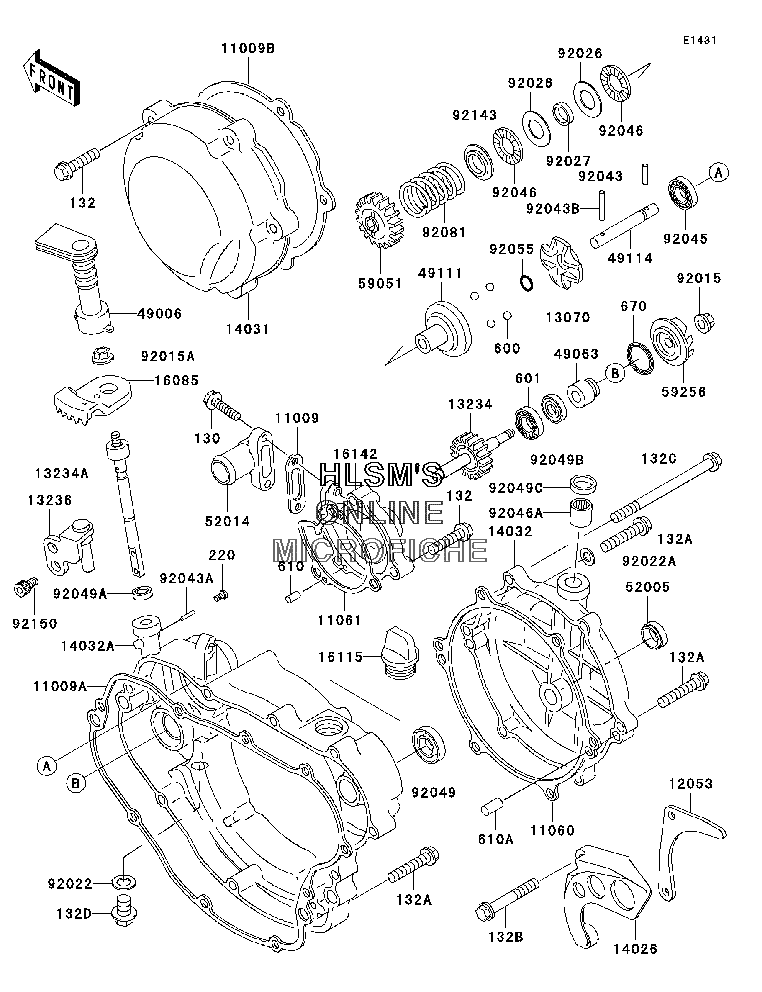

ENGINE COVER для Kawasaki KDX 200 - 2006 года выпуска

  • №
    Артикул
    Название
  • 11009
    11009-1952 GASKET, ELBOW
    GASKET, ELBOW
  • 11009A
    11009-1996 GASKET, CLUTCH COVER
    GASKET, CLUTCH COVER
  • 11009B
    11009-1997 GASKET, GENERATOR COVER
    GASKET, GENERATOR COVER
  • 11060
    11060-1630 GASKET, CLUTCH COVER
    GASKET, CLUTCH COVER
  • 11061
    11061-0123 GASKET, WATER PUMP COVER
    GASKET, WATER PUMP COVER
  • 12053
    12053-1228 GUIDE, CHAIN
    GUIDE, CHAIN
  • 13070
    13070-1122 GUIDE
    GUIDE
  • 13234
    13234-1091 SHAFT, COMP, PUMP
    SHAFT, COMP, PUMP
  • 13234A
    13234-1101 SHAFT, COMP, GOVERNOR
    SHAFT, COMP, GOVERNOR
  • 13236
    13236-1260 LEVER, COMP, GOVERNOR
    LEVER, COMP, GOVERNOR
  • 14026
    14026-1159 COVER, CHAIN
    COVER, CHAIN
  • 14031
    14031-1231 COVER, GENERATOR
    COVER, GENERATOR
  • 14032
    14032-1382 COVER, CLUTCH, OUT
    COVER, CLUTCH, OUT
  • 14032A
    14032-1418 COVER, CLUTCH
    COVER, CLUTCH
  • 16085
    16085-1273 GEAR
    GEAR
  • 16115
    16115-018 CAP, OIL FILLER
    CAP, OIL FILLER
  • 16142
    16142-1090 COVER, PUMP
    COVER, PUMP
  • 49006
    49006-1291 BOOT, GOVERNOR SHAFT
    BOOT, GOVERNOR SHAFT
  • 49063
    49063-1055 SEAL, MECHANICAL, WATER
    SEAL, MECHANICAL, WATER
  • 49111
    49111-1051 HOLDER, GOVERNOR WEIGHT
    HOLDER, GOVERNOR WEIGHT
  • 49114
    49114-1058 SHAFT, GOVERNOR
    SHAFT, GOVERNOR
  • 52005
    52005-1055 GAUGE, OIL LEVEL
    GAUGE, OIL LEVEL
  • 52014
    52014-1067 ELBOW
    ELBOW
  • 59051
    59051-1189 GEAR, SPUR, GOVERNOR (18 TEETH)
    GEAR, SPUR, GOVERNOR (18 TEETH)
  • 59256
    59256-1063 IMPELLER
    IMPELLER
  • 92015
    92015-1365 NUT, 6MM
    NUT, 6MM
  • 92015A
    92015-1572 NUT, LEFT HANDED, 6MM
    NUT, LEFT HANDED, 6MM
  • 92022
    92022-1488 WASHER, 8.2X14X1.0
    WASHER, 8.2X14X1.0
  • 92022A
    92022-304 WASHER, 6.2X11X1
    WASHER, 6.2X11X1
  • 92026
    92026-1238 SPACER, 15X28X1
    SPACER, 15X28X1
  • 92027
    92027-1839 COLLAR, 15.2X17X4
    COLLAR, 15.2X17X4
  • 92043
    92043-1256 PIN, 3X12.8
    PIN, 3X12.8
  • 92043A
    92043-1293 PIN, 2X9.8
    PIN, 2X9.8
  • 92043B
    92043-1319 PIN, 3X19.8
    PIN, 3X19.8
  • 92045
    92045-1305 BEARING, BALL, 608MC3
    BEARING, BALL, 608MC3
  • 92046
    92046-1052 BEARING, NEEDLE, AXK1102
    BEARING, NEEDLE, AXK1102
  • 92046A
    92046-1230 BEARING, NEEDLE
    BEARING, NEEDLE
  • 92049
    92049-013 SEAL, OIL, SB18307
    SEAL, OIL, SB18307
  • 92049A
    92049-1207 SEAL, OIL, SDO8144
    SEAL, OIL, SDO8144
  • 92049B
    92049-1259 SEAL, OIL, SC12 28.555
    SEAL, OIL, SC12 28.555
  • 130
    130Z0520 BOLT, FLANGED, 5X20
    BOLT, FLANGED, 5X20
  • 132
    132Y0625 BOLT, FLANGED, SMALL, 6X25
    BOLT, FLANGED, SMALL, 6X25
  • 132A
    132Y0630 BOLT, FLANGED, SMALL, 6X30
    BOLT, FLANGED, SMALL, 6X30
  • 132B
    132Y0640 BOLT, FLANGED, SMALL, 6X40
    BOLT, FLANGED, SMALL, 6X40
  • 132C
    132Y0680 BOLT, FLANGED, SMALL, 6X80
    BOLT, FLANGED, SMALL, 6X80
  • 132D
    132Y0810 BOLT, FLANGED, SMALL, 8X10
    BOLT, FLANGED, SMALL, 8X10
  • 220
    220B0306 SCREW, PAN, CROS, 3X6
    SCREW, PAN, CROS, 3X6
  • 600
    600A1000 BALL, STEEL, 5/16"
    BALL, STEEL, 5/16"
  • 601
    601B6201U BEARING, BALL, #6201LUC3/2A
    BEARING, BALL, #6201LUC3/2A
  • 610
    610A0408 ROLLER, 4X8
    ROLLER, 4X8
  • 610A
    610A0612 ROLLER, 6X12
    ROLLER, 6X12
  • 670
    670B1506 O-RING, 6MM
    O-RING, 6MM
  • 92049C
    92049-1262 SEAL, OIL, AG0353, F0
    SEAL, OIL, AG0353, F0
  • 92055
    92055-1343 O-RING, 5.5X1.5
    O-RING, 5.5X1.5
  • 92081
    92081-1769 SPRING, GOVERNOR
    SPRING, GOVERNOR
  • 92143
    92143-1001 COLLAR
    COLLAR
  • 92150
    92150-1888 BOLT, SOCKET, 4X8
    BOLT, SOCKET, 4X8
