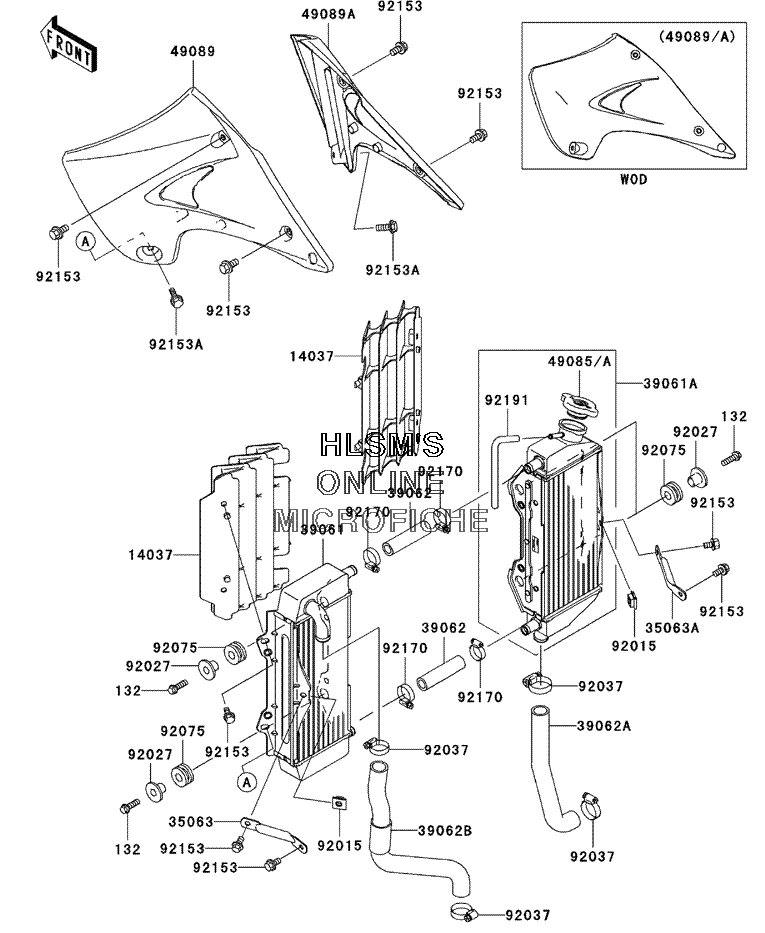

RADIATOR для Kawasaki KX 250 - 2005 года выпуска

  • №
    Артикул
    Название
  • 132
    132L0620 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
  • 14037
    14037-0020-RZ SCREEN (WHITE)
    SCREEN (WHITE)
  • 35063
    35063-1226 STAY (LEFT)
    STAY (LEFT)
  • 35063A
    35063-1227 STAY (RIGHT)
    STAY (RIGHT)
  • 39061
    39061-0024 RADIATOR, ASSY (LEFT)
    RADIATOR, ASSY (LEFT)
  • 39061A
    39061-0025 RADIATOR, ASSY (RIGHT)
    RADIATOR, ASSY (RIGHT)
  • 39062
    39062-0043 HOSE, COOLING, RADIATOR L, R
    HOSE, COOLING, RADIATOR L, R
  • 39062A
    39062-0060 HOSE, COOLING, RAD.RH, PUMP
    HOSE, COOLING, RAD.RH, PUMP
  • 39062B
    39062-0074 HOSE, COOLING, HEAD, RAD.LH
    HOSE, COOLING, HEAD, RAD.LH
  • 49085
    49085-1070 CAP, ASSY, PRESSURE, P1.1
    CAP, ASSY, PRESSURE, P1.1
  • 49085A
    49085-1073 CAP, ASSY, PRESSURE, P1.6 (OPTION)
    CAP, ASSY, PRESSURE, P1.6 (OPTION)
  • 49089
    49089-1150-290 SHROUD, ENGINE (LEFT) (L.GREEN)
    SHROUD, ENGINE (LEFT) (L.GREEN)
  • 49089A
    49089-1151-290 SHROUD, ENGINE (RIGHT) (L.GREEN)
    SHROUD, ENGINE (RIGHT) (L.GREEN)
  • 92015
    92015-1487 NUT
    NUT
  • 92027
    92027-194 COLLAR, L=11.1
    COLLAR, L=11.1
  • 92037
    92037-1589 CLAMP, COOLING HOSE
    CLAMP, COOLING HOSE
  • 92075
    92075-209 DAMPER
    DAMPER
  • 92153
    92153-0503 BOLT, 6X12
    BOLT, 6X12
  • 92153A
    92153-0864 BOLT, 6X20
    BOLT, 6X20
  • 92170
    92170-1283 CLAMP
    CLAMP
  • 92191
    92191-1211 TUBE, 6X9X700
    TUBE, 6X9X700
