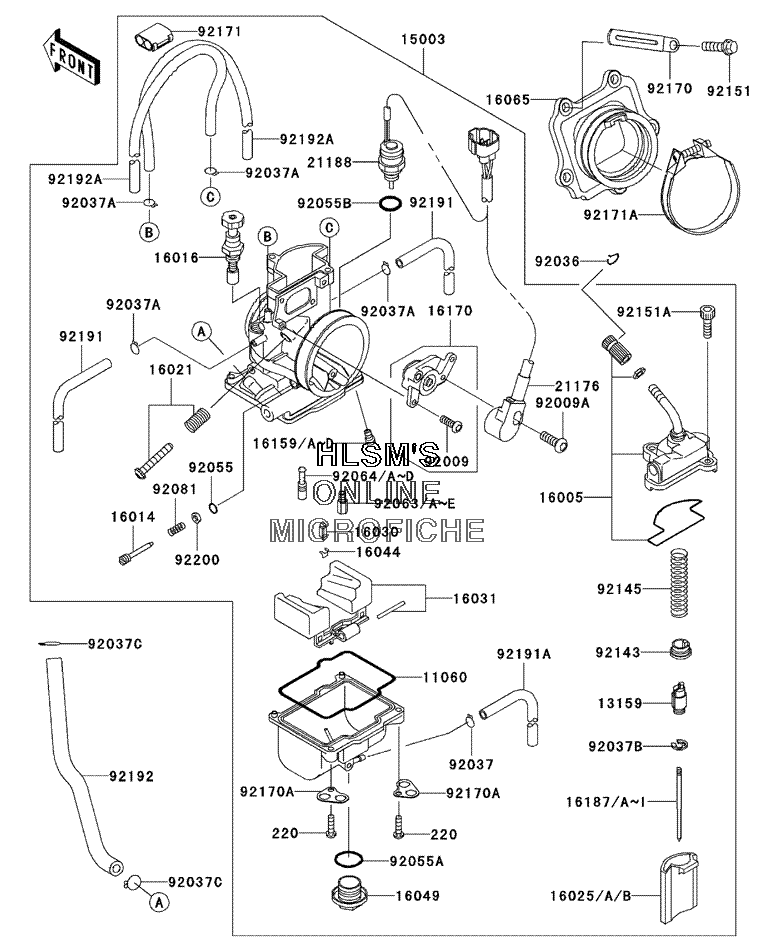

CARBURETOR для Kawasaki KX 250 - 2005 года выпуска

  • №
    Артикул
    Название
  • 11060
    11060-1254 GASKET, FLOAT CHAMBER
    GASKET, FLOAT CHAMBER
  • 13159
    13159-1063 CONNECTOR, THROTTLE CABLE
    CONNECTOR, THROTTLE CABLE
  • 15003
    15003-0045 CARBURETOR, ASSY
    CARBURETOR, ASSY
  • 16005
    16005-1083 TOP, CHAMBER
    TOP, CHAMBER
  • 16014
    16014-1058 SCREW, PILOT AIR
    SCREW, PILOT AIR
  • 16016
    16016-1085 PLUNGER
    PLUNGER
  • 16021
    16021-1198 SCREW, THROTTLE STOP
    SCREW, THROTTLE STOP
  • 16025
    16025-1215 VALVE, THROTTLE, #6 (OPTION)
    VALVE, THROTTLE, #6 (OPTION)
  • 16025A
    16025-1216 VALVE, THROTTLE, #7 (OPTION)
    VALVE, THROTTLE, #7 (OPTION)
  • 16025B
    16025-1217 VALVE, THROTTLE, #8
    VALVE, THROTTLE, #8
  • 16030
    16030-1057 VALVE, FLOAT
    VALVE, FLOAT
  • 16031
    16031-1100 FLOAT
    FLOAT
  • 16044
    16044-007 CLAMP, FLOAT VALVE
    CLAMP, FLOAT VALVE
  • 16049
    16049-1051 COVER, MAIN JET
    COVER, MAIN JET
  • 16065
    16065-0023 HOLDER, CARBURETOR
    HOLDER, CARBURETOR
  • 16159
    16159-1053 JET, POWER, #50 (OPTION)
    JET, POWER, #50 (OPTION)
  • 16159A
    16159-1054 JET, POWER, #55
    JET, POWER, #55
  • 16159B
    16159-1055 JET, POWER, #52 (OPTION)
    JET, POWER, #52 (OPTION)
  • 16159C
    16159-1056 JET, POWER, #58 (OPTION)
    JET, POWER, #58 (OPTION)
  • 16159D
    16159-1057 JET, POWER, #60 (OPTION)
    JET, POWER, #60 (OPTION)
  • 16170
    16170-0001 LINK, ASSY
    LINK, ASSY
  • 16187
    16187-0157 NEEDLE, JET, NFTF (OPTION)
    NEEDLE, JET, NFTF (OPTION)
  • 16187A
    16187-0158 NEEDLE, JET, NFTG
    NEEDLE, JET, NFTG
  • 16187B
    16187-0159 NEEDLE, JET, NFTH (OPTION)
    NEEDLE, JET, NFTH (OPTION)
  • 16187C
    16187-0160 NEEDLE, JET, NFTW (OPTION)
    NEEDLE, JET, NFTW (OPTION)
  • 16187D
    16187-0162 NEEDLE, JET, NFUF (OPTION)
    NEEDLE, JET, NFUF (OPTION)
  • 16187E
    16187-0163 NEEDLE, JET, NFUG (OPTION)
    NEEDLE, JET, NFUG (OPTION)
  • 16187F
    16187-0164 NEEDLE, JET, NFUH (OPTION)
    NEEDLE, JET, NFUH (OPTION)
  • 16187G
    16187-0165 NEEDLE, JET, NFUW (OPTION)
    NEEDLE, JET, NFUW (OPTION)
  • 16187H
    16187-0167 NEEDLE, JET, NFTE (OPTION)
    NEEDLE, JET, NFTE (OPTION)
  • 16187I
    16187-0168 NEEDLE, JET, NFUE (OPTION)
    NEEDLE, JET, NFUE (OPTION)
  • 21176
    21176-1114 SENSOR, THROTTLE
    SENSOR, THROTTLE
  • 21188
    21188-0002 SOLENOID
    SOLENOID
  • 92009
    92009-1889 SCREW
    SCREW
  • 92009A
    92009-1981 SCREW, THROTTLE SENSOR
    SCREW, THROTTLE SENSOR
  • 92036
    92036-018 RING, SNAP
    RING, SNAP
  • 92037
    92037-1142 CLAMP, TUBE
    CLAMP, TUBE
  • 92037A
    92037-1396 CLAMP, TUBE
    CLAMP, TUBE
  • 92037B
    92037-1401 CLAMP, JET NEEDLE
    CLAMP, JET NEEDLE
  • 92037C
    92037-147 CLAMP, TUBE
    CLAMP, TUBE
  • 92055
    92055-1002 O-RING, PILOT ADJUST
    O-RING, PILOT ADJUST
  • 92055A
    92055-1167 O-RING, MAIN JET COVER
    O-RING, MAIN JET COVER
  • 92055B
    92055-1580 O-RING
    O-RING
  • 92063
    92063-1366 JET, MAIN, #155 (OPTION)
    JET, MAIN, #155 (OPTION)
  • 92063A
    92063-1367 JET, MAIN, #158 (OPTION)
    JET, MAIN, #158 (OPTION)
  • 92063B
    92063-1368 JET, MAIN, #160
    JET, MAIN, #160
  • 92063C
    92063-1369 JET, MAIN, #162 (OPTION)
    JET, MAIN, #162 (OPTION)
  • 92063D
    92063-1370 JET, MAIN, #165 (OPTION)
    JET, MAIN, #165 (OPTION)
  • 92063E
    92063-1372 JET, MAIN, #170 (OPTION)
    JET, MAIN, #170 (OPTION)
  • 92064
    92064-1130 JET, PILOT, #52 (OPTION)
    JET, PILOT, #52 (OPTION)
  • 92064A
    92064-1142 JET, PILOT, #45 (OPTION)
    JET, PILOT, #45 (OPTION)
  • 92064B
    92064-1143 JET, PILOT, #48 (OPTION)
    JET, PILOT, #48 (OPTION)
  • 92064C
    92064-1144 JET, PILOT, #50
    JET, PILOT, #50
  • 92064D
    92064-1145 JET, PILOT, #55 (OPTION)
    JET, PILOT, #55 (OPTION)
  • 92081
    92081-1555 SPRING, ADJUST SCREW
    SPRING, ADJUST SCREW
  • 92143
    92143-1201 COLLAR, THROTTLE VALVE
    COLLAR, THROTTLE VALVE
  • 92145
    92145-0012 SPRING, THROTTLE VALVE
    SPRING, THROTTLE VALVE
  • 92151
    92151-1252 BOLT, 6X20
    BOLT, 6X20
  • 92151A
    92151-1507 BOLT
    BOLT
  • 220
    220D0414 SCREW, PAN, CROS
    SCREW, PAN, CROS
  • 92170
    92170-1514 CLAMP
    CLAMP
  • 92170A
    92170-1582 CLAMP
    CLAMP
  • 92171
    92171-0246 CLAMP
    CLAMP
  • 92171A
    92171-1105 CLAMP
    CLAMP
  • 92191
    92191-1254 TUBE, 4X7X480
    TUBE, 4X7X480
  • 92191A
    92191-1256 TUBE, 3.5X6.5X330
    TUBE, 3.5X6.5X330
  • 92192
    92192-0129 TUBE, L=190.2
    TUBE, L=190.2
  • 92192A
    92192-0203 TUBE, 4X7X580
    TUBE, 4X7X580
  • 92200
    92200-1466 WASHER
    WASHER
