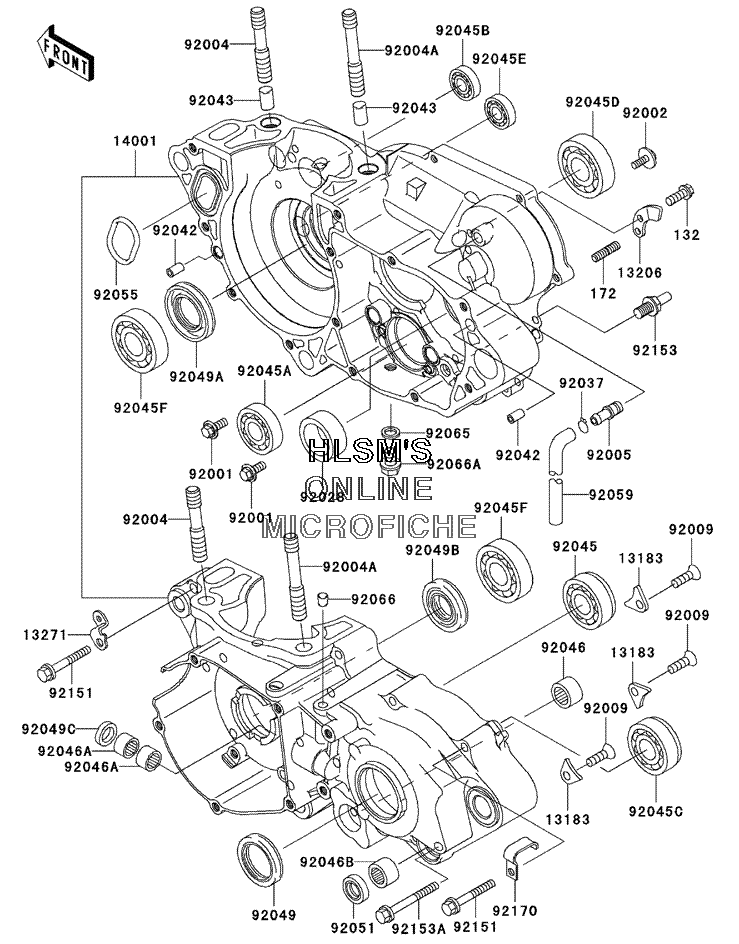

CRANKCASE для Kawasaki KX 250 - 2005 года выпуска

  • №
    Артикул
    Название
  • 13183
    13183-1182 PLATE
    PLATE
  • 13206
    13206-1062 GUIDE, KICK
    GUIDE, KICK
  • 13271
    13271-0532 PLATE
    PLATE
  • 14001
    14001-0021 SET, CRANKCASE
    SET, CRANKCASE
  • 92001
    92001-1829 BOLT, W/WASHER, 6X14
    BOLT, W/WASHER, 6X14
  • 92002
    92002-1659 BOLT, 6X16
    BOLT, 6X16
  • 92004
    92004-0018 STUD, 10X64
    STUD, 10X64
  • 92004A
    92004-0021 STUD, 10X74.5
    STUD, 10X74.5
  • 92005
    92005-1210 FITTING, BREATHER
    FITTING, BREATHER
  • 92009
    92009-1563 SCREW, 6X10
    SCREW, 6X10
  • 92028
    92028-131 BUSHING, 26X35X14
    BUSHING, 26X35X14
  • 92037
    92037-1610 CLAMP
    CLAMP
  • 92042
    92042-007 PIN, DOWEL, 6.3X8X14
    PIN, DOWEL, 6.3X8X14
  • 92043
    92043-1266 PIN, 11X14X12.3
    PIN, 11X14X12.3
  • 92045
    92045-0013 BEARING, BALL, 3TM, SX0391ZC3
    BEARING, BALL, 3TM, SX0391ZC3
  • 92045A
    92045-1058 BEARING, BALL, 6905Z
    BEARING, BALL, 6905Z
  • 92045B
    92045-1123 BEARING, BALL, #628
    BEARING, BALL, #628
  • 92045C
    92045-1240 BEARING, BALL, TMB205/56W, 5
    BEARING, BALL, TMB205/56W, 5
  • 92045D
    92045-1300 BEARING, BALL, 63/22/25X7
    BEARING, BALL, 63/22/25X7
  • 92045E
    92045-1345 BEARING, BALL, 626BUMC3
    BEARING, BALL, 626BUMC3
  • 92045F
    92045-1445 BEARING, BALL, CRANK MAIN
    BEARING, BALL, CRANK MAIN
  • 92046
    92046-037 BEARING, NEEDLE, 7E, HK1412
    BEARING, NEEDLE, 7E, HK1412
  • 92046A
    92046-1010 BEARING, NEEDLE, HK1210
    BEARING, NEEDLE, HK1210
  • 92046B
    92046-1148 BEARING, NEEDLE, HK1312
    BEARING, NEEDLE, HK1312
  • 92049
    92049-0030 SEAL, OIL, TC 30 40 7
    SEAL, OIL, TC 30 40 7
  • 92049A
    92049-0031 SEAL, OIL, TCJ 25 45 7
    SEAL, OIL, TCJ 25 45 7
  • 92049B
    92049-0032 SEAL, OIL, TCJ 20 40 7
    SEAL, OIL, TCJ 20 40 7
  • 92049C
    92049-1262 SEAL, OIL, AG0353, F0
    SEAL, OIL, AG0353, F0
  • 92051
    92051-005 SEAL, OIL, TB13225.5
    SEAL, OIL, TB13225.5
  • 92055
    92055-0059 O-RING, YP 26.7 41.8 2.7
    O-RING, YP 26.7 41.8 2.7
  • 92059
    92059-103 TUBE, 6X9X360
    TUBE, 6X9X360
  • 92065
    92065-058 GASKET, 10.5X16X1
    GASKET, 10.5X16X1
  • 92066
    92066-1012 PLUG, OIL LINE, 7.2X8
    PLUG, OIL LINE, 7.2X8
  • 92066A
    92066-1437 PLUG, DRAIN
    PLUG, DRAIN
  • 92151
    92151-1336 BOLT, 6X45
    BOLT, 6X45
  • 92153
    92153-0629 BOLT, RETURN
    BOLT, RETURN
  • 92153A
    92153-0862 BOLT, 6X75
    BOLT, 6X75
  • 92170
    92170-1555 CLAMP
    CLAMP
  • 132
    132G0616 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
  • 172
    172G0612 BOLT, STUD, 6X12
    BOLT, STUD, 6X12
