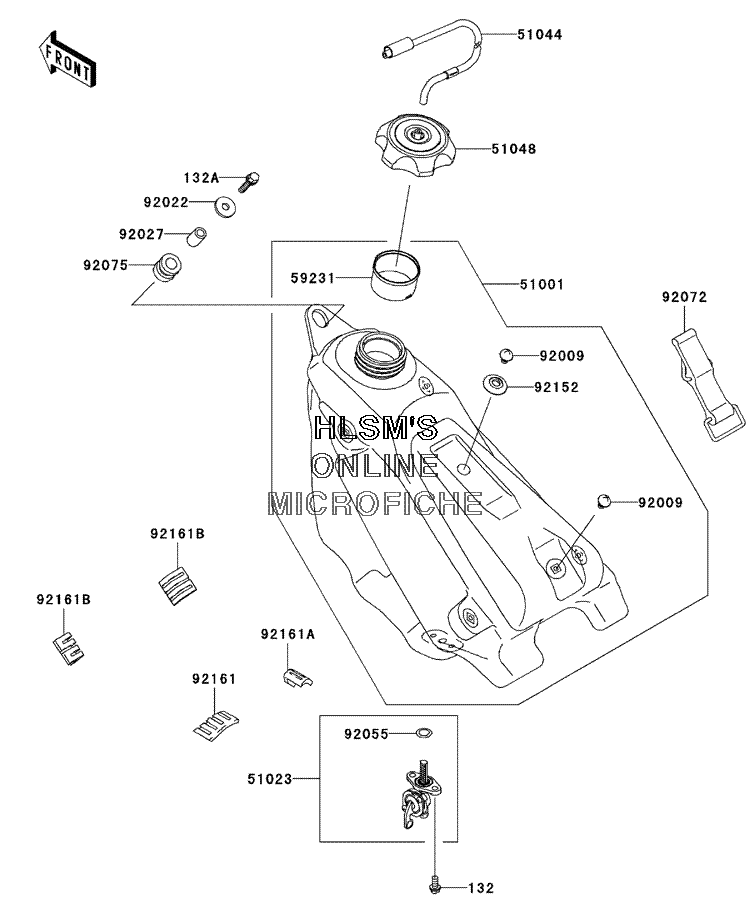

FUEL TANK для Kawasaki KX 250 - 2005 года выпуска
-
№АртикулНазвание
-
132132G0612 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132A132G0625 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
5100151001-0037-6Z TANK, COMP, FUEL (F.BLACK)TANK, COMP, FUEL (F.BLACK)
-
5102351023-0014 TAP, ASSY, FUELTAP, ASSY, FUEL
-
5104451044-0019 TUBE, ASSY, TANK CAPTUBE, ASSY, TANK CAP
-
5104851048-0009 CAP, ASSY, TANK, FUELCAP, ASSY, TANK, FUEL
-
5923159231-0016 FILLERFILLER
-
9200992009-1971 SCREW, 6MMSCREW, 6MM
-
9202292022-1690 WASHER, 6.5X24X2WASHER, 6.5X24X2
-
9202792027-1966 COLLAR, 6.8X10X14COLLAR, 6.8X10X14
-
9205592055-0078 O-RING, FUEL TAP PACKINGO-RING, FUEL TAP PACKING
-
9207292072-1229 BAND, FUEL TANKBAND, FUEL TANK
-
9207592075-1787 DAMPERDAMPER
-
9215292152-1346 COLLARCOLLAR
-
9216192161-1279 DAMPER, FUEL TANK, REARDAMPER, FUEL TANK, REAR
-
92161A92161-1280 DAMPER, FUEL TANK, REARDAMPER, FUEL TANK, REAR
-
92161B92161-1291 DAMPER, FUEL TANK, SIDEDAMPER, FUEL TANK, SIDE
