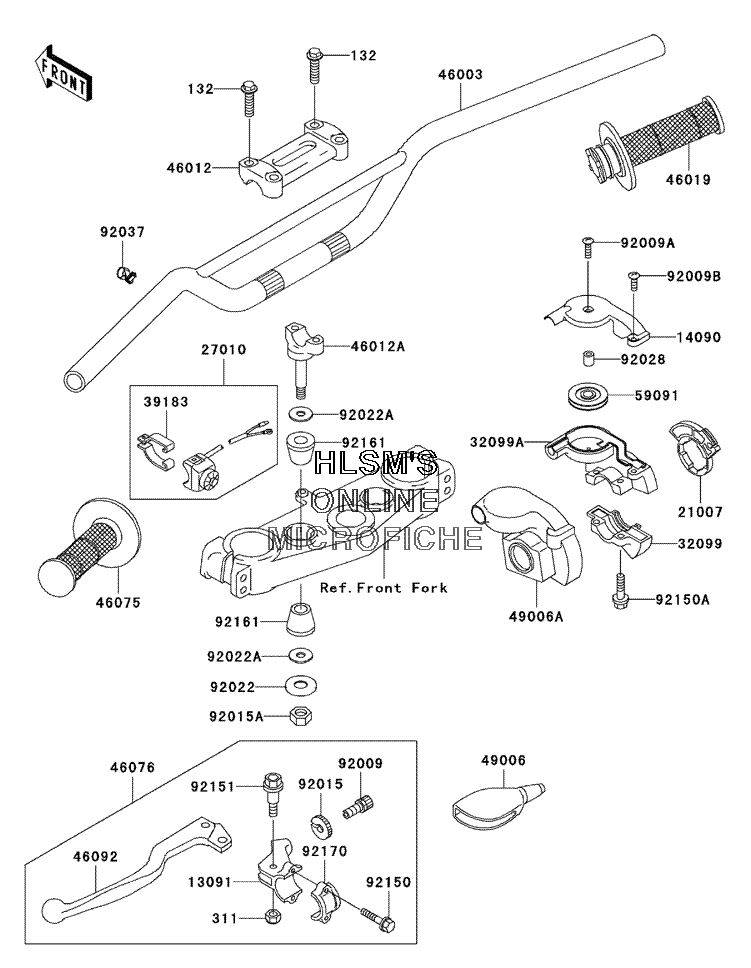

HANDLEBAR для Kawasaki KX 125 - 2005 года выпуска

  • №
    Артикул
    Название
  • 132
    132G0830 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
  • 311
    311B0500 NUT, HEX
    NUT, HEX
  • 13091
    13091-1728 HOLDER, CLUTCH LEVER
    HOLDER, CLUTCH LEVER
  • 14090
    14090-1161 COVER, THROTTLE CASE, UPPER
    COVER, THROTTLE CASE, UPPER
  • 21007
    21007-1242 ROTOR, THROTTLE
    ROTOR, THROTTLE
  • 27010
    27010-0022 SWITCH, ENGINE STOP
    SWITCH, ENGINE STOP
  • 32099
    32099-1138 CASE, THROTTLE, LOWER
    CASE, THROTTLE, LOWER
  • 32099A
    32099-1168 CASE, THROTTLE, UPPER
    CASE, THROTTLE, UPPER
  • 39183
    39183-1059 BAND, ASSY, ENGINE STOP SWITCH
    BAND, ASSY, ENGINE STOP SWITCH
  • 46003
    46003-0060-458 HANDLE (P.SILVER)
    HANDLE (P.SILVER)
  • 46012
    46012-0010-458 HOLDER, HANDLE, UPPER (P.SILVER)
    HOLDER, HANDLE, UPPER (P.SILVER)
  • 46012A
    46012-0016-458 HOLDER, HANDLE, LOWER (P.SILVER)
    HOLDER, HANDLE, LOWER (P.SILVER)
  • 46019
    46019-1125 GRIP, ASSY, THROTTLE
    GRIP, ASSY, THROTTLE
  • 46075
    46075-1213 GRIP (LEFT)
    GRIP (LEFT)
  • 46076
    46076-1203 LEVER, ASSY, GRIP, CLUTCH
    LEVER, ASSY, GRIP, CLUTCH
  • 46092
    46092-1165 LEVER, GRIP, CLUTCH
    LEVER, GRIP, CLUTCH
  • 49006
    49006-1017 BOOT, LEVER HOLDER
    BOOT, LEVER HOLDER
  • 49006A
    49006-1301 BOOT, THROTTLE
    BOOT, THROTTLE
  • 59091
    59091-1102 PULLEY, THROTTLE
    PULLEY, THROTTLE
  • 92009
    92009-1476 SCREW, CABLE ADJUST, 8MM
    SCREW, CABLE ADJUST, 8MM
  • 92009A
    92009-1674 SCREW
    SCREW
  • 92009B
    92009-1675 SCREW
    SCREW
  • 92015
    92015-1596 NUT, CABLE ADJUST LOCK, 8MM
    NUT, CABLE ADJUST LOCK, 8MM
  • 92015A
    92015-1962 NUT, LOCK, 10MM
    NUT, LOCK, 10MM
  • 92022
    92022-1088 WASHER, 10.2X28X2
    WASHER, 10.2X28X2
  • 92022A
    92022-1737 WASHER
    WASHER
  • 92028
    92028-1658 BUSHING, THROTTLE CASE
    BUSHING, THROTTLE CASE
  • 92037
    92037-1290 CLAMP, SPEED, L=43
    CLAMP, SPEED, L=43
  • 92150
    92150-1474 BOLT
    BOLT
  • 92150A
    92150-1559 BOLT
    BOLT
  • 92151
    92151-1103 BOLT, LEVER SET, 5MM
    BOLT, LEVER SET, 5MM
  • 92161
    92161-0113 DAMPER, HANDLE HOLDER
    DAMPER, HANDLE HOLDER
  • 92170
    92170-1226 CLAMP, LEVER HOLDER
    CLAMP, LEVER HOLDER
