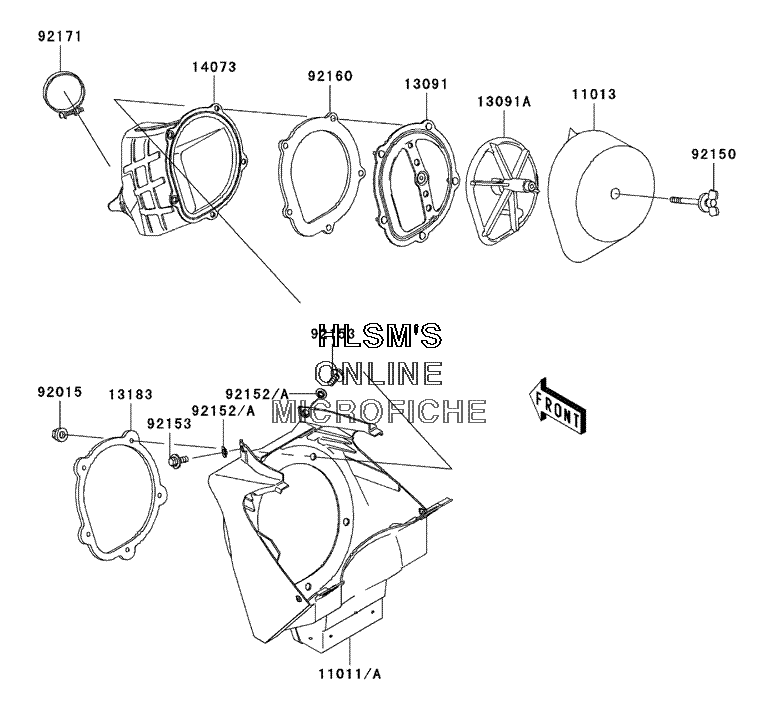

AIR CLEANER для Kawasaki KX 125 - 2005 года выпуска

  • №
    Артикул
    Название
  • 11011
    11011-0012 CASE, AIR FILTER (SERIAL JKAKXRMC 5A017213 AND BELOW)
    CASE, AIR FILTER (SERIAL JKAKXRMC 5A017213 AND BELOW)
  • 11011A
    11011-0048 CASE, AIR FILTER (SERIAL JKAKXRMC 5A017214 AND ABOVE)
    CASE, AIR FILTER (SERIAL JKAKXRMC 5A017214 AND ABOVE)
  • 11013
    11013-1264 ELEMENT, AIR FILTER
    ELEMENT, AIR FILTER
  • 13091
    13091-1664 HOLDER
    HOLDER
  • 13091A
    13091-1708 HOLDER, ELEMENT
    HOLDER, ELEMENT
  • 13183
    13183-1530 PLATE, DUCT FITTING
    PLATE, DUCT FITTING
  • 14073
    14073-0034 DUCT, AIR FILTER
    DUCT, AIR FILTER
  • 92015
    92015-1259 NUT, FLANGED, 5MM
    NUT, FLANGED, 5MM
  • 92150
    92150-1565 BOLT, WING
    BOLT, WING
  • 92152
    92152-0250 COLLAR (SERIAL JKAKXRMC 5A017213 AND BELOW)
    COLLAR (SERIAL JKAKXRMC 5A017213 AND BELOW)
  • 92152A
    92152-0275 COLLAR (SERIAL JKAKXRMC 5A017214 AND ABOVE)
    COLLAR (SERIAL JKAKXRMC 5A017214 AND ABOVE)
  • 92153
    92153-0863 BOLT, 6X16
    BOLT, 6X16
  • 92160
    92160-1196 DAMPER, DUCT SEAL
    DAMPER, DUCT SEAL
  • 92171
    92171-1066 CLAMP, AIR FILTER
    CLAMP, AIR FILTER
