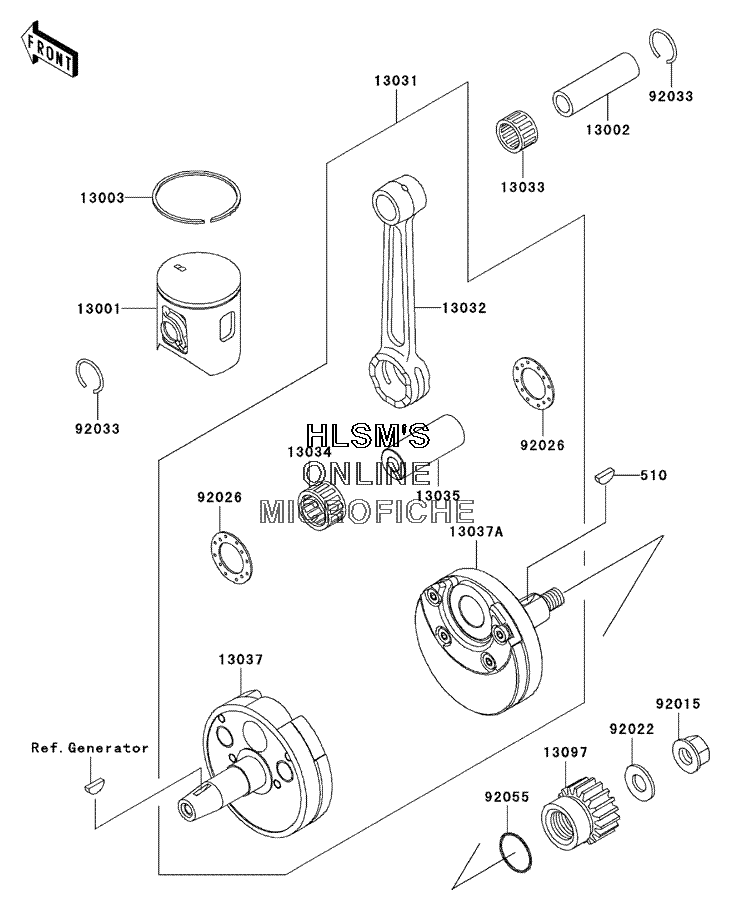

CRANKSHAFT - PISTON(S) для Kawasaki KX 125 - 2005 года выпуска
-
№АртикулНазвание
-
510510A5100 KEY, WOODRUFFKEY, WOODRUFF
-
1300113001-0009 PISTON, ENGINE, SIZE BPISTON, ENGINE, SIZE B
-
1300213002-1099 PIN, PISTONPIN, PISTON
-
1300313003-0020 RING, PISTON TOPRING, PISTON TOP
-
1303113031-0017 CRANKSHAFT, COMPCRANKSHAFT, COMP
-
1303213032-0010 ROD, CONNECTINGROD, CONNECTING
-
1303313033-1057 BEARING, SMALL ENDBEARING, SMALL END
-
1303413034-1099 BEARING, BIG END, B4BEARING, BIG END, B4
-
1303513035-1096 PIN, CRANKPIN, CRANK
-
1303713037-0017 CRANKSHAFT (LEFT)CRANKSHAFT (LEFT)
-
13037A13037-0018 CRANKSHAFT (RIGHT)CRANKSHAFT (RIGHT)
-
1309713097-0007 GEAR, PRIMARY SPURGEAR, PRIMARY SPUR
-
9201592015-1156 NUT, FLANGED, 12MMNUT, FLANGED, 12MM
-
9202292022-1831 WASHERWASHER
-
9202692026-1546 SPACERSPACER
-
9203392033-1335 RING, SNAPRING, SNAP
-
9205592055-086 O-RINGO-RING
