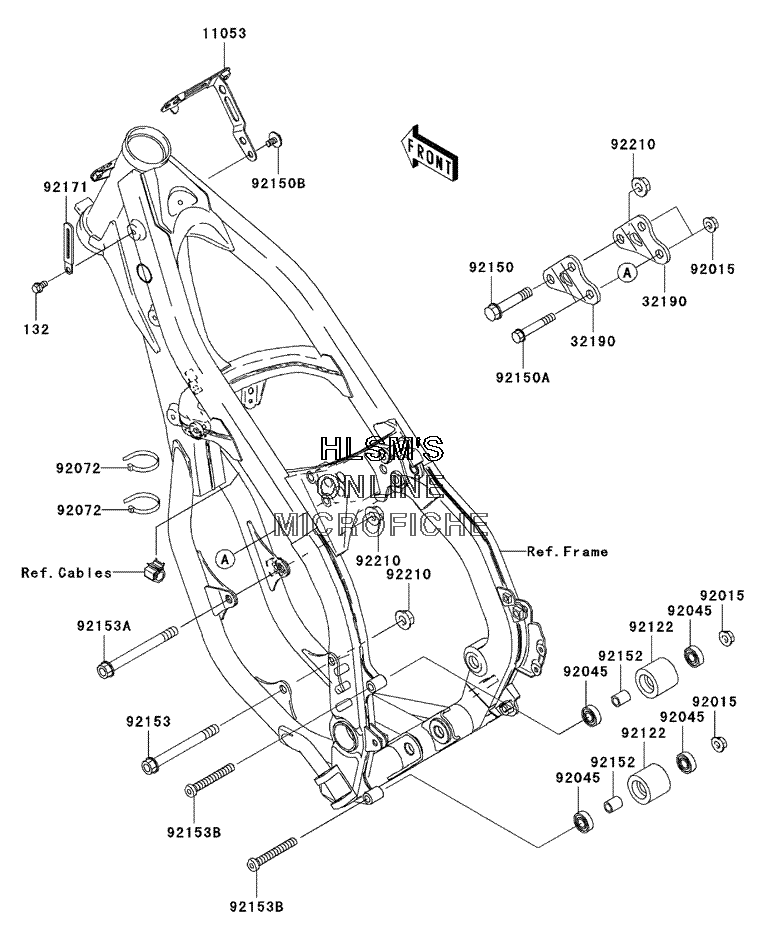

FRAME FITTING(S) для Kawasaki KX 125 - 2005 года выпуска

  • №
    Артикул
    Название
  • 132
    132L0610 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
  • 11053
    11053-0467 BRACKET, IGNITER
    BRACKET, IGNITER
  • 32190
    32190-1265 BRACKET, ENGINE
    BRACKET, ENGINE
  • 92015
    92015-1432 NUT, 8MM
    NUT, 8MM
  • 92045
    92045-1009 BEARING, BALL, 608LLU/2A
    BEARING, BALL, 608LLU/2A
  • 92072
    92072-1293 BAND, L=140
    BAND, L=140
  • 92122
    92122-0007 ROLLER, CHAIN GUIDE
    ROLLER, CHAIN GUIDE
  • 92150
    92150-1125 BOLT, FLANGED, 10X50
    BOLT, FLANGED, 10X50
  • 92150A
    92150-1214 BOLT, FLANGED, 8X50
    BOLT, FLANGED, 8X50
  • 92150B
    92150-1435 BOLT, 6X12
    BOLT, 6X12
  • 92152
    92152-0211 COLLAR, 8.5X12.5X15.5
    COLLAR, 8.5X12.5X15.5
  • 92153
    92153-0614 BOLT, FLANGED, 10X105
    BOLT, FLANGED, 10X105
  • 92153A
    92153-0615 BOLT, FLANGED, 10X110
    BOLT, FLANGED, 10X110
  • 92153B
    92153-1259 BOLT, SOCKET, 8X60
    BOLT, SOCKET, 8X60
  • 92171
    92171-1279 CLAMP
    CLAMP
  • 92210
    92210-1080 NUT, LOCK, FLANGED, 10MM
    NUT, LOCK, FLANGED, 10MM
