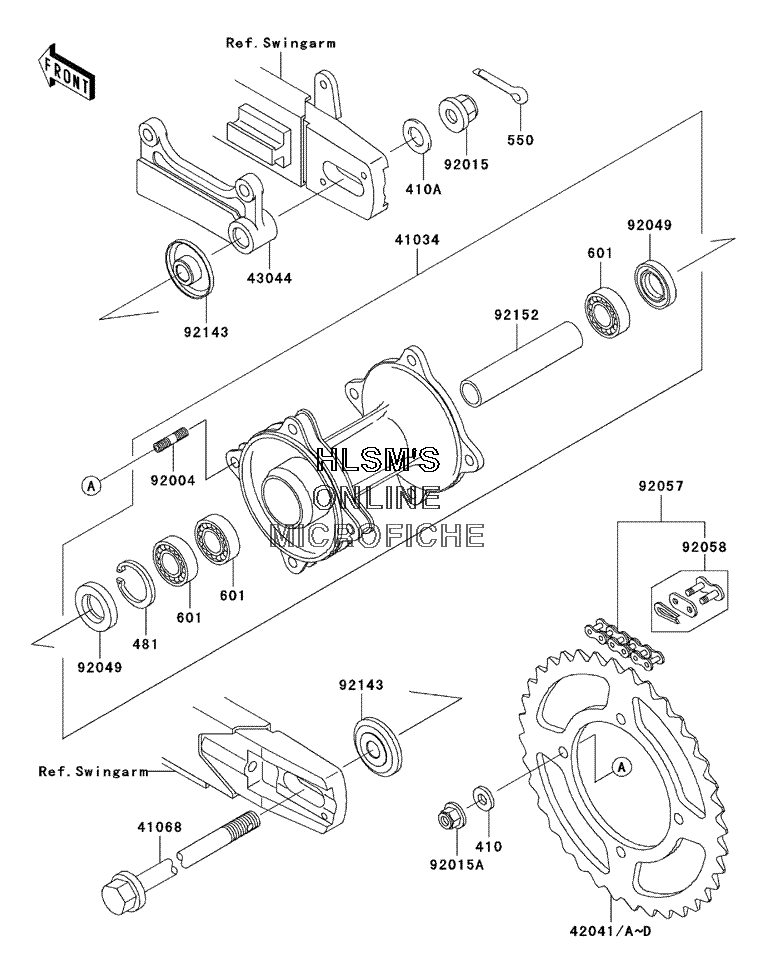

REAR HUB для Kawasaki KX 100 - 2005 года выпуска

  • №
    Артикул
    Название
  • 410
    410B0800 WASHER, PLAIN, SMALL, 8MM
    WASHER, PLAIN, SMALL, 8MM
  • 410A
    410B1400 WASHER, PLAIN, SMALL, 14MM
    WASHER, PLAIN, SMALL, 14MM
  • 481
    481J3500 CIRCLIP, TYPE, C, 35MM
    CIRCLIP, TYPE, C, 35MM
  • 550
    550D2520 PIN, COTTER, 2.5X20
    PIN, COTTER, 2.5X20
  • 601
    601B6202UU BEARING, BALL
    BEARING, BALL
  • 41034
    41034-1323 DRUM, ASSY, REAR BRAKE
    DRUM, ASSY, REAR BRAKE
  • 41068
    41068-1401 AXLE, REAR
    AXLE, REAR
  • 42041
    42041-1207 SPROCKET, HUB (49 TEETH) (OPT)
    SPROCKET, HUB (49 TEETH) (OPT)
  • 42041A
    42041-1228 SPROCKET, HUB (50 TEETH) (OPT)
    SPROCKET, HUB (50 TEETH) (OPT)
  • 42041B
    42041-1229 SPROCKET, HUB (51 TEETH)
    SPROCKET, HUB (51 TEETH)
  • 42041C
    42041-1245 SPROCKET, HUB (52 TEETH) (OPT)
    SPROCKET, HUB (52 TEETH) (OPT)
  • 42041D
    42041-1246 SPROCKET, HUB (53 TEETH) (OPT)
    SPROCKET, HUB (53 TEETH) (OPT)
  • 43044
    43044-1122 HOLDER, COMP, CALIPER
    HOLDER, COMP, CALIPER
  • 92004
    92004-1183 STUD, 8X16
    STUD, 8X16
  • 92015
    92015-1401 NUT, FLANGED, 14MM
    NUT, FLANGED, 14MM
  • 92015A
    92015-1432 NUT, 8MM
    NUT, 8MM
  • 92049
    92049-1469 SEAL, OIL
    SEAL, OIL
  • 92057
    92057-1497 CHAIN, DRIVE, DID420DS2X124L
    CHAIN, DRIVE, DID420DS2X124L
  • 92058
    92058-1086 JOINT, CHAIN, DRIVE
    JOINT, CHAIN, DRIVE
  • 92143
    92143-1938 COLLAR, REAR AXLE, L=12.5
    COLLAR, REAR AXLE, L=12.5
  • 92152
    92152-1090 COLLAR, REAR BRAKE DRUM, L=95
    COLLAR, REAR BRAKE DRUM, L=95
