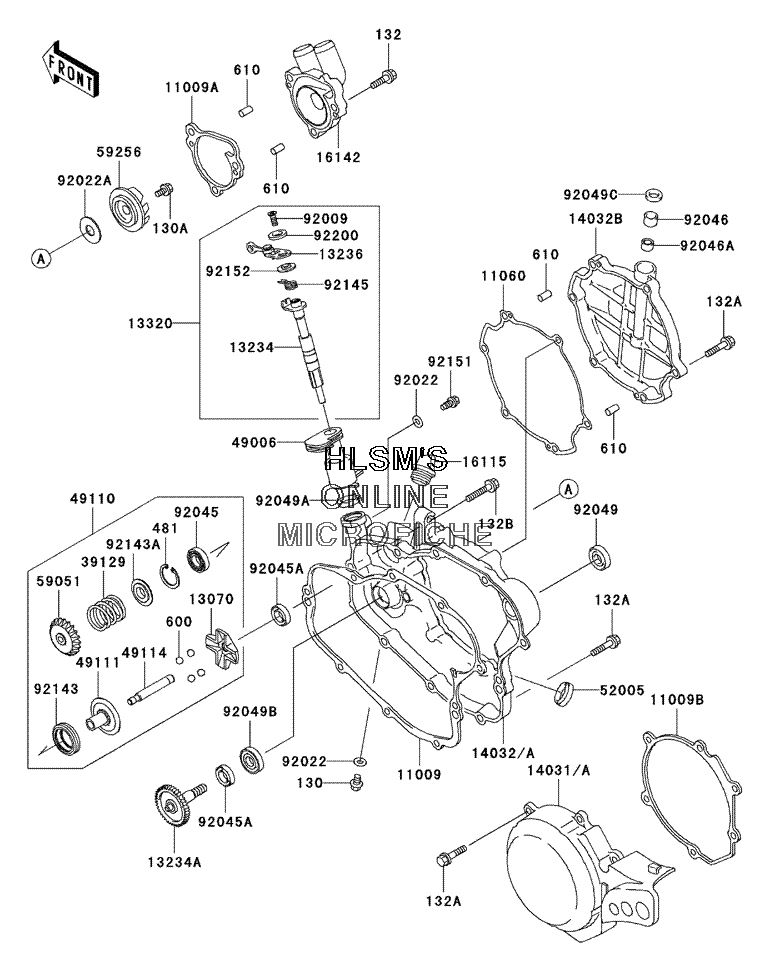

ENGINE COVER для Kawasaki KX 100 - 2005 года выпуска`
-
№АртикулНазвание
-
130130B0608 BOLT, FLANGED, 6X8BOLT, FLANGED, 6X8
-
1100911009-1971 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
11009A11009-1972 GASKET, PUMP COVERGASKET, PUMP COVER
-
11009B11009-1973 GASKET, GENERATOR COVERGASKET, GENERATOR COVER
-
1106011060-1795 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
1307013070-1309 GUIDE, GOVERNORGUIDE, GOVERNOR
-
1323413234-0008 SHAFT, COMPSHAFT, COMP
-
13234A13234-1103 SHAFT, COMP, WATER PUMPSHAFT, COMP, WATER PUMP
-
1323613236-0023 LEVER, COMPLEVER, COMP
-
1332013320-0002 LEVER, ASSYLEVER, ASSY
-
1403114031-0029 COVER, GENERATORCOVER, GENERATOR
-
14032A14032-0041 COVER, CLUTCH, INSIDECOVER, CLUTCH, INSIDE
-
14032B14032-1463 COVER, CLUTCH, OUTSIDECOVER, CLUTCH, OUTSIDE
-
1611516115-018 CAP, OIL FILLERCAP, OIL FILLER
-
1614216142-1144 COVER, PUMP, WATERCOVER, PUMP, WATER
-
3912939129-1022 SPRING, GOVERNORSPRING, GOVERNOR
-
4900649006-1313 BOOT, GOVERNORBOOT, GOVERNOR
-
4911049110-0001 GOVERNOR, ASSYGOVERNOR, ASSY
-
4911149111-1064 HOLDER, GOVERNOR WEIGHTHOLDER, GOVERNOR WEIGHT
-
4911449114-1106 SHAFT, GOVERNORSHAFT, GOVERNOR
-
5200552005-1055 GAUGE, OIL LEVELGAUGE, OIL LEVEL
-
5905159051-1412 GEAR, SPURGEAR, SPUR
-
5925659256-1064 IMPELLERIMPELLER
-
9200992009-1958 SCREW, 6X14SCREW, 6X14
-
9202292022-077 WASHER, 6.1X12X1WASHER, 6.1X12X1
-
92022A92022-1380 WASHER, 5.2X13X1WASHER, 5.2X13X1
-
9204592045-0010 BEARING, BALLBEARING, BALL
-
92045A92045-1305 BEARING, BALL, 608MC3BEARING, BALL, 608MC3
-
9204692046-1160 BEARING, NEEDLE, HK1010BEARING, NEEDLE, HK1010
-
92046A92046-1217 BEARING, NEEDLE, 6BTM109BEARING, NEEDLE, 6BTM109
-
9204992049-002 SEAL, OIL, SB16244SEAL, OIL, SB16244
-
92049A92049-1262 SEAL, OILSEAL, OIL
-
92049B92049-1366 SEAL, OIL, MHSD8X18X10J, 1SEAL, OIL, MHSD8X18X10J, 1
-
92049C92049-1414 SEAL, OIL, BG1408F0SEAL, OIL, BG1408F0
-
9214392143-1932 COLLARCOLLAR
-
92143A92143-1933 COLLARCOLLAR
-
9214592145-0089 SPRINGSPRING
-
9215192151-1180 BOLTBOLT
-
9215292152-0085 COLLAR, LEVERCOLLAR, LEVER
-
9220092200-0040 WASHER, LEVERWASHER, LEVER
-
130A130P0510 BOLT, FLANGEDBOLT, FLANGED
-
132132G0620 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132A132G0625 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132B132G0630 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
481481J2400 CIRCLIPCIRCLIP
-
600600A1000 BALL, STEEL, 5/16"BALL, STEEL, 5/16"
-
610610A0408 ROLLER, 4X8ROLLER, 4X8
