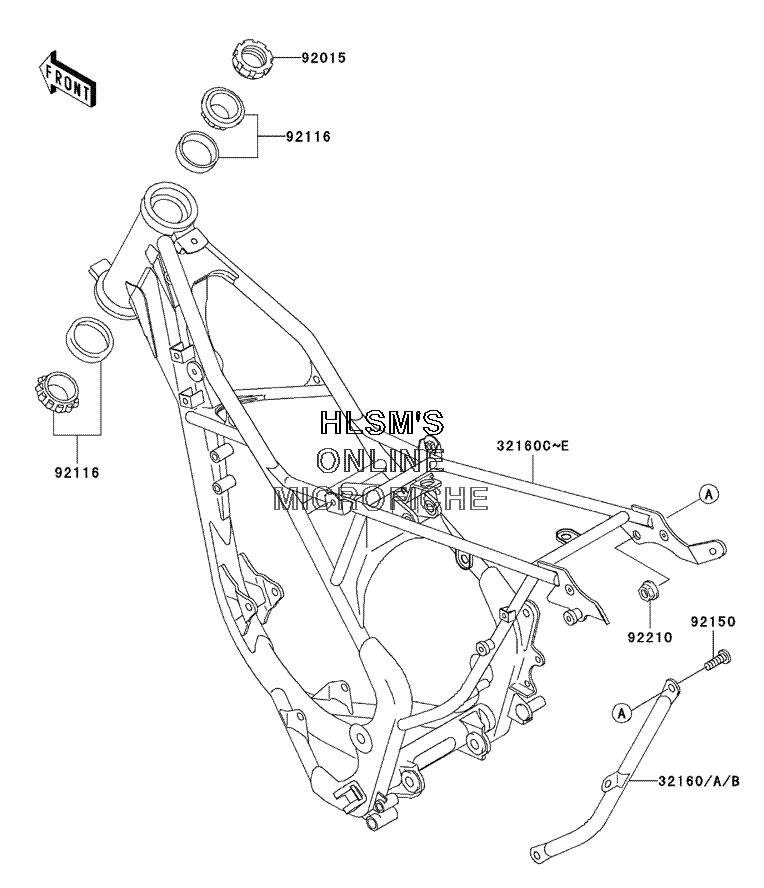

FRAME для Kawasaki KX 100 - 2005 года выпуска
-
№АртикулНазвание
-
32160B32160-1486-458 FRAME, COMP, DOWNTUBE (RIGHT) (SILVER)FRAME, COMP, DOWNTUBE (RIGHT) (SILVER)
-
32160E32160-1673-458 FRAME, COMP, MAIN (P.SILVER)FRAME, COMP, MAIN (P.SILVER)
-
9201592015-1684 NUT, STEERING STEM, 25MMNUT, STEERING STEM, 25MM
-
9211692116-1065 BEARING, ROLLER, H1, CAP32005JRRSBEARING, ROLLER, H1, CAP32005JRRS
-
9215092150-1221 BOLT, SOCKET, 10X23BOLT, SOCKET, 10X23
-
9221092210-1080 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
