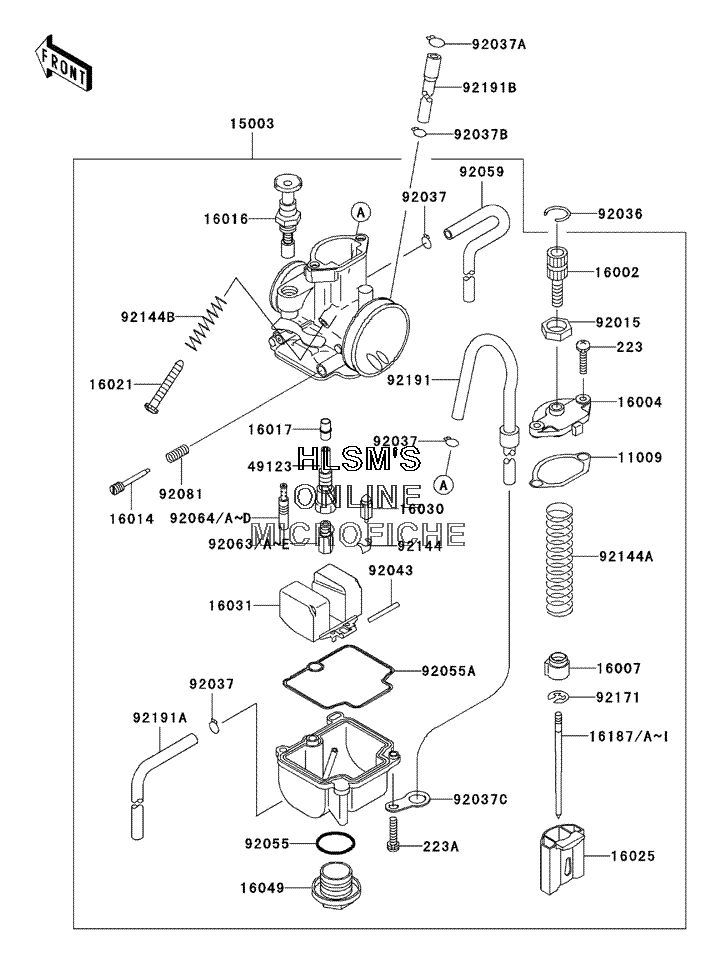

CARBURETOR для Kawasaki KX 100 - 2005 года выпуска

  • №
    Артикул
    Название
  • 11009
    11009-1759 GASKET, MIXING CHAMBER
    GASKET, MIXING CHAMBER
  • 15003
    15003-1643 CARBURETOR, ASSY
    CARBURETOR, ASSY
  • 16002
    16002-1056 ADJUSTER, CABLE
    ADJUSTER, CABLE
  • 16004
    16004-1065 CAP, CHAMBER, MIXING
    CAP, CHAMBER, MIXING
  • 16007
    16007-1155 SEAT, SPRING, THROTTLE VALVE
    SEAT, SPRING, THROTTLE VALVE
  • 16014
    16014-1058 SCREW, PILOT AIR
    SCREW, PILOT AIR
  • 16016
    16016-1075 PLUNGER, STARTER
    PLUNGER, STARTER
  • 16017
    16017-1431 JET, NEEDLE
    JET, NEEDLE
  • 16021
    16021-1161 SCREW, THROTTLE STOP
    SCREW, THROTTLE STOP
  • 16025
    16025-1220 VALVE, THROTTLE, CA3.5
    VALVE, THROTTLE, CA3.5
  • 16030
    16030-1064 VALVE, FLOAT
    VALVE, FLOAT
  • 16031
    16031-1065 FLOAT
    FLOAT
  • 16049
    16049-1051 COVER, MAIN JET
    COVER, MAIN JET
  • 16187
    16187-1177 NEEDLE, JET, NAPD (OPT)
    NEEDLE, JET, NAPD (OPT)
  • 16187A
    16187-1178 NEEDLE, JET, NAPE (OPT)
    NEEDLE, JET, NAPE (OPT)
  • 16187B
    16187-1179 NEEDLE, JET, NAPF
    NEEDLE, JET, NAPF
  • 16187C
    16187-1180 NEEDLE, JET, NAPG (OPT)
    NEEDLE, JET, NAPG (OPT)
  • 16187D
    16187-1181 NEEDLE, JET, NAPH (OPT)
    NEEDLE, JET, NAPH (OPT)
  • 16187E
    16187-1183 NEEDLE, JET, NAQD (OPT)
    NEEDLE, JET, NAQD (OPT)
  • 16187F
    16187-1184 NEEDLE, JET, NAQE (OPT)
    NEEDLE, JET, NAQE (OPT)
  • 16187G
    16187-1185 NEEDLE, JET, NAQF (OPT)
    NEEDLE, JET, NAQF (OPT)
  • 16187H
    16187-1186 NEEDLE, JET, NAQG (OPT)
    NEEDLE, JET, NAQG (OPT)
  • 16187I
    16187-1187 NEEDLE, JET, NAQH (OPT)
    NEEDLE, JET, NAQH (OPT)
  • 49123
    49123-1054 HOLDER, MAIN JET
    HOLDER, MAIN JET
  • 92015
    92015-1574 NUT, CABLE ADJUST LOCK
    NUT, CABLE ADJUST LOCK
  • 92036
    92036-018 RING, SNAP
    RING, SNAP
  • 92037
    92037-1396 CLAMP, TUBE
    CLAMP, TUBE
  • 92037A
    92037-147 CLAMP, TUBE
    CLAMP, TUBE
  • 92037B
    92037-1712 CLAMP
    CLAMP
  • 92037C
    92037-1969 CLAMP, HOSE
    CLAMP, HOSE
  • 92043
    92043-1207 PIN, FLOAT
    PIN, FLOAT
  • 92055
    92055-1167 O-RING, MAIN JET COVER
    O-RING, MAIN JET COVER
  • 223
    223C0414 SCREW, PAN, WS, CROS
    SCREW, PAN, WS, CROS
  • 223A
    223C0416 SCREW, PAN, WS, CROS
    SCREW, PAN, WS, CROS
  • 92055A
    92055-1389 O-RING, FLOAT CHAMBER
    O-RING, FLOAT CHAMBER
  • 92059
    92059-1941 TUBE, 4X7X360
    TUBE, 4X7X360
  • 92063
    92063-1337 JET, MAIN, #132 (OPT)
    JET, MAIN, #132 (OPT)
  • 92063A
    92063-1338 JET, MAIN, #135 (OPT)
    JET, MAIN, #135 (OPT)
  • 92063B
    92063-1359 JET, MAIN, #138
    JET, MAIN, #138
  • 92063C
    92063-1360 JET, MAIN, #140 (OPT)
    JET, MAIN, #140 (OPT)
  • 92063D
    92063-1361 JET, MAIN, #142 (OPT)
    JET, MAIN, #142 (OPT)
  • 92063E
    92063-1363 JET, MAIN, #148 (OPT)
    JET, MAIN, #148 (OPT)
  • 92064
    92064-1140 JET, PILOT, #40 (OPT)
    JET, PILOT, #40 (OPT)
  • 92064A
    92064-1141 JET, PILOT, #42 (OPT)
    JET, PILOT, #42 (OPT)
  • 92064B
    92064-1142 JET, PILOT, #45
    JET, PILOT, #45
  • 92064C
    92064-1143 JET, PILOT, #48 (OPT)
    JET, PILOT, #48 (OPT)
  • 92064D
    92064-1144 JET, PILOT, #50 (OPT)
    JET, PILOT, #50 (OPT)
  • 92081
    92081-1555 SPRING, ADJUST SCREW
    SPRING, ADJUST SCREW
  • 92144
    92144-1178 SPRING, FLOAT VALVE
    SPRING, FLOAT VALVE
  • 92144A
    92144-1566 SPRING, THROTTLE VALVE
    SPRING, THROTTLE VALVE
  • 92144B
    92144-1782 SPRING, THROTTLE STOP SCREW
    SPRING, THROTTLE STOP SCREW
  • 92171
    92171-1323 CLAMP
    CLAMP
  • 92191
    92191-1243 TUBE, 4X7X560
    TUBE, 4X7X560
  • 92191A
    92191-1591 TUBE, 4X7X420
    TUBE, 4X7X420
  • 92191B
    92191-1610 TUBE
    TUBE
