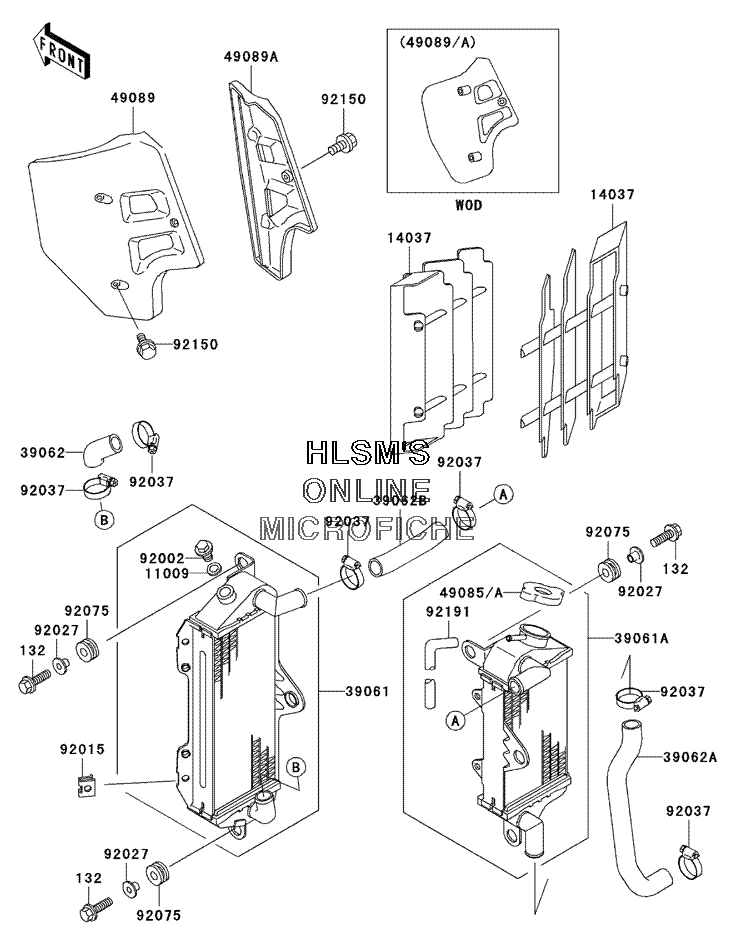

RADIATOR для Kawasaki KX 500 - 2004 года выпуска`
-
№АртикулНазвание
-
132132G0620 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
1100911009-1152 GASKET, DRAIN BOLTGASKET, DRAIN BOLT
-
1403714037-1099-RZ SCREEN (WHITE)SCREEN (WHITE)
-
3906139061-1235 RADIATOR, ASSY. (LEFT)RADIATOR, ASSY. (LEFT)
-
39061A39061-1236 RADIATOR, ASSY. (RIGHT)RADIATOR, ASSY. (RIGHT)
-
3906239062-1138 HOSE, COOLING, RADIATOR (LEFT)HOSE, COOLING, RADIATOR (LEFT)
-
39062A39062-1209 HOSE, COOLING, RADIATOR, PUMP (RIGHT)HOSE, COOLING, RADIATOR, PUMP (RIGHT)
-
39062B39062-1274 HOSE, COOLING, RADIATOR LH (RIGHT)HOSE, COOLING, RADIATOR LH (RIGHT)
-
4908549085-1070 CAP, ASSY., PRESSURE, P1.1CAP, ASSY., PRESSURE, P1.1
-
49085A49085-1073 CAP, ASSY., PRESSURE, P1.6 (OPT)CAP, ASSY., PRESSURE, P1.6 (OPT)
-
4908949089-1087-6W SHROUD, ENGINE (LEFT) (L.GREEN)SHROUD, ENGINE (LEFT) (L.GREEN)
-
49089A49089-1088-6W SHROUD, ENGINE (RIGHT) (L.GREEN)SHROUD, ENGINE (RIGHT) (L.GREEN)
-
9200292002-1682 BOLT, RADIATOR DRAINBOLT, RADIATOR DRAIN
-
9201592015-1487 NUTNUT
-
9202792027-194 COLLAR, L=11.1COLLAR, L=11.1
-
9203792037-1589 CLAMP, COOLING HOSECLAMP, COOLING HOSE
-
9207592075-209 DAMPERDAMPER
-
9215092150-1340 BOLT, 6X14BOLT, 6X14
-
9219192191-1211 TUBE, 6X9X700TUBE, 6X9X700
