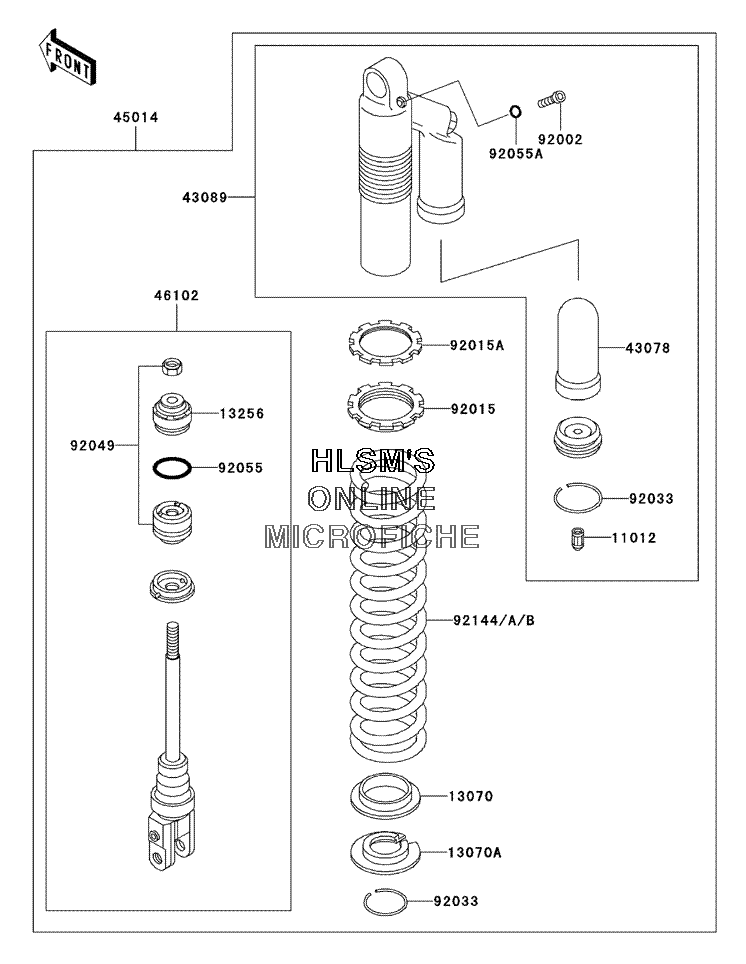

SUSPENSION - SHOCK ABSORBER для Kawasaki KX 500 - 2004 года выпуска

  • №
    Артикул
    Название
  • 11012
    11012-1552 CAP, AIR VALVE
    CAP, AIR VALVE
  • 13070
    13070-1161 GUIDE, SPRING
    GUIDE, SPRING
  • 13070A
    13070-1165 GUIDE, SPRING
    GUIDE, SPRING
  • 13256
    13256-1057 PISTON, SHOCKABSORBER
    PISTON, SHOCKABSORBER
  • 43078
    43078-1094 RESERVOIR, SHOCKABSORBER
    RESERVOIR, SHOCKABSORBER
  • 43089
    43089-1160 CYLINDER, SHOCKABSORBER
    CYLINDER, SHOCKABSORBER
  • 45014
    45014-1652-8V SHOCKABSORBER (I.SILVER)
    SHOCKABSORBER (I.SILVER)
  • 46102
    46102-1405 ROD, SHOCKABSORBER
    ROD, SHOCKABSORBER
  • 92002
    92002-1955 BOLT, DRAIN
    BOLT, DRAIN
  • 92015
    92015-1703 NUT, SPRING ADJUST
    NUT, SPRING ADJUST
  • 92015A
    92015-1704 NUT, SPRING ADJUST LOCK
    NUT, SPRING ADJUST LOCK
  • 92033
    92033-1209 RING, SNAP
    RING, SNAP
  • 92049
    92049-1407 SEAL, OIL
    SEAL, OIL
  • 92055
    92055-1346 O-RING, ROD
    O-RING, ROD
  • 92055A
    92055-1383 O-RING
    O-RING
  • 92144
    92144-1505-8V SPRING, SHOCKABSORBER, K=5.3, SIL (OPT)
    SPRING, SHOCKABSORBER, K=5.3, SIL (OPT)
  • 92144A
    92144-1506-8V SPRING, SHOCKABSORBER, K=5.5, SIL
    SPRING, SHOCKABSORBER, K=5.5, SIL
  • 92144B
    92144-1929-8V SPRING, SHOCKABSORBER, K=5.7, SIL (OPT)
    SPRING, SHOCKABSORBER, K=5.7, SIL (OPT)
