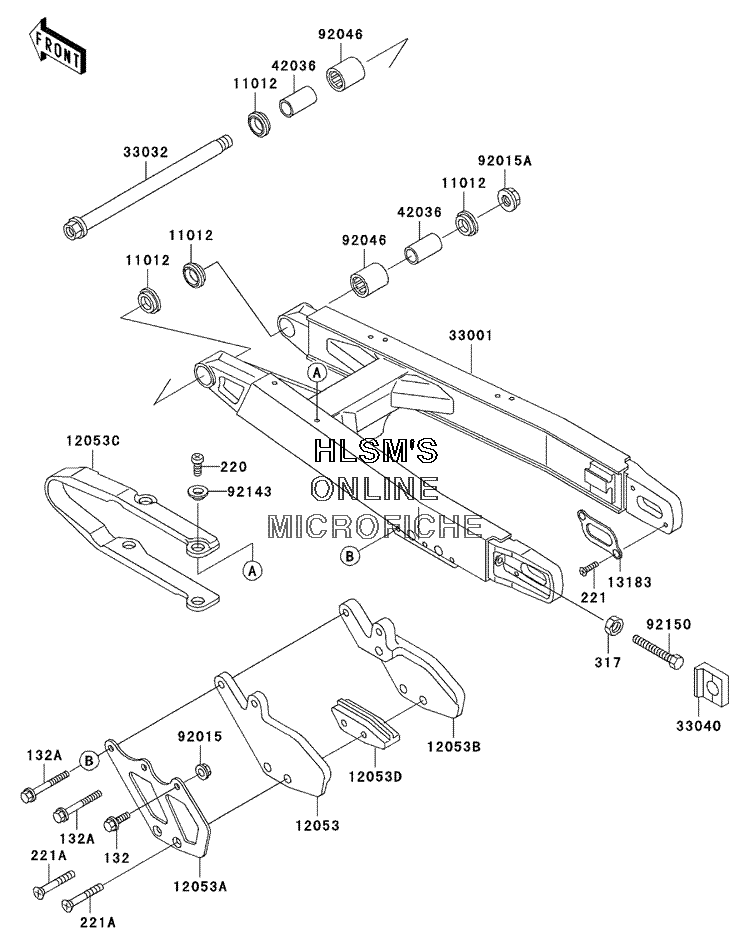

SUSPENSION - SWINGARM для Kawasaki KX 500 - 2004 года выпуска
-
№АртикулНазвание
-
132132G0616 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132A132G0635 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
220220B0608 SCREW, PAN, CROS, 6X8SCREW, PAN, CROS, 6X8
-
221221B0510 SCREW, CSK, CROSSCREW, CSK, CROS
-
221A221B0645 SCREW, CSK, CROS, 6X45SCREW, CSK, CROS, 6X45
-
317317G0800 NUT, HEX, SMALL, 8MMNUT, HEX, SMALL, 8MM
-
1101211012-1259 CAP, SWING ARMCAP, SWING ARM
-
1205312053-1234 GUIDE, CHAIN, REAR, INNERSIDEGUIDE, CHAIN, REAR, INNERSIDE
-
12053A12053-1235 GUIDE, CHAIN, REAR, OUTERSIDEGUIDE, CHAIN, REAR, OUTERSIDE
-
12053B12053-1236 GUIDE, CHAIN, REAR, OUTERSIDEGUIDE, CHAIN, REAR, OUTERSIDE
-
12053C12053-1240 GUIDE, CHAIN, FRONTGUIDE, CHAIN, FRONT
-
12053D12053-1270 GUIDE, CHAIN, DRIVE, REAR, INNERSIDEGUIDE, CHAIN, DRIVE, REAR, INNERSIDE
-
1318313183-1546 PLATEPLATE
-
3300133001-1496-CE ARM, COMP, SWING (SILVER)ARM, COMP, SWING (SILVER)
-
3303233032-1137 SHAFT, SWING ARMSHAFT, SWING ARM
-
3304033040-1106 ADJUSTER, CHAINADJUSTER, CHAIN
-
4203642036-1064 SLEEVE, SWING ARMSLEEVE, SWING ARM
-
9201592015-1078 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
92015A92015-1407 NUT, 14MMNUT, 14MM
-
9204692046-1128 BEARING, NEEDLE, TA2030ZBEARING, NEEDLE, TA2030Z
-
9214392143-1156 COLLARCOLLAR
-
9215092150-1385 BOLT, 8X55BOLT, 8X55
