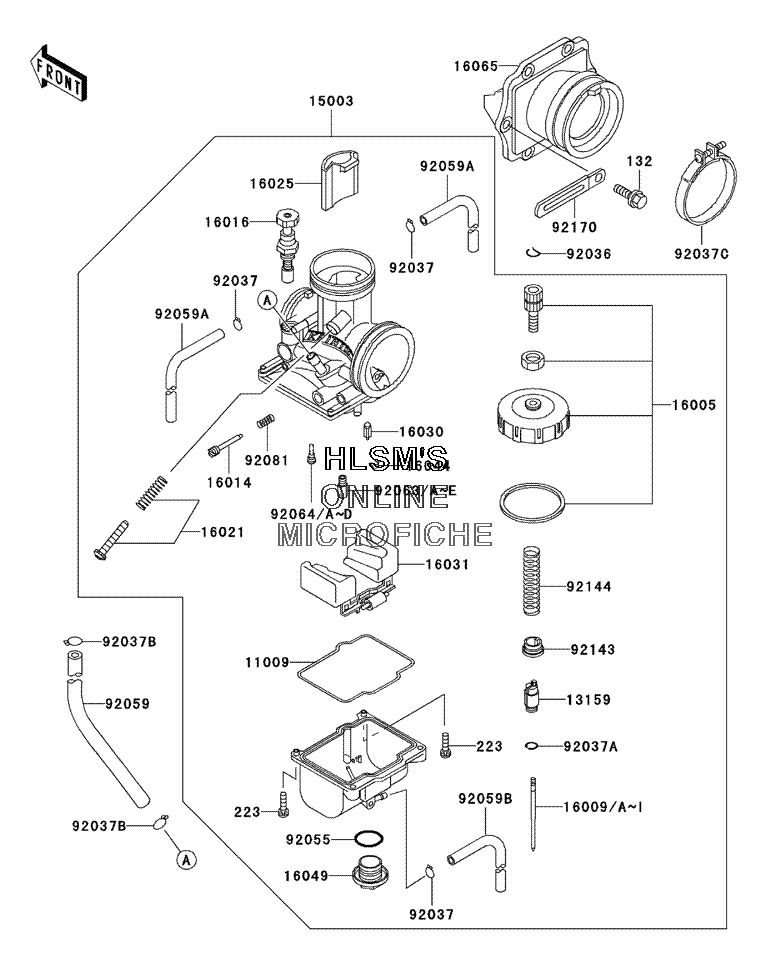

CARBURETOR для Kawasaki KX 500 - 2004 года выпуска

  • №
    Артикул
    Название
  • 11009
    11009-1716 GASKET, FLOAT CHAMBER
    GASKET, FLOAT CHAMBER
  • 13159
    13159-1063 CONNECTOR, THROTTLE CABLE
    CONNECTOR, THROTTLE CABLE
  • 15003
    15003-1250 CARBURETOR, ASSY.
    CARBURETOR, ASSY.
  • 16005
    16005-1068 TOP, CHAMBER
    TOP, CHAMBER
  • 16009
    16009-1578 NEEDLE, JET, N82K (OPT)
    NEEDLE, JET, N82K (OPT)
  • 16009A
    16009-1579 NEEDLE, JET, N82L (OPT)
    NEEDLE, JET, N82L (OPT)
  • 16009B
    16009-1580 NEEDLE, JET, N82M
    NEEDLE, JET, N82M
  • 16009C
    16009-1581 NEEDLE, JET, N82N (OPT)
    NEEDLE, JET, N82N (OPT)
  • 16009D
    16009-1582 NEEDLE, JET, N82P (OPT)
    NEEDLE, JET, N82P (OPT)
  • 16009E
    16009-1609 NEEDLE, JET, N89Z (OPT)
    NEEDLE, JET, N89Z (OPT)
  • 16009F
    16009-1610 NEEDLE, JET, N89A (OPT)
    NEEDLE, JET, N89A (OPT)
  • 16009G
    16009-1611 NEEDLE, JET, N89B (OPT)
    NEEDLE, JET, N89B (OPT)
  • 16009H
    16009-1612 NEEDLE, JET, N89C (OPT)
    NEEDLE, JET, N89C (OPT)
  • 16009I
    16009-1613 NEEDLE, JET, N89D (OPT)
    NEEDLE, JET, N89D (OPT)
  • 16014
    16014-1058 SCREW, PILOT AIR
    SCREW, PILOT AIR
  • 16016
    16016-1085 PLUNGER
    PLUNGER
  • 16021
    16021-1198 SCREW, THROTTLE STOP
    SCREW, THROTTLE STOP
  • 16025
    16025-1163 VALVE, THROTTLE, CA7
    VALVE, THROTTLE, CA7
  • 16030
    16030-1057 VALVE, FLOAT
    VALVE, FLOAT
  • 16031
    16031-1084 FLOAT
    FLOAT
  • 16044
    16044-007 CLAMP, FLOAT VALVE
    CLAMP, FLOAT VALVE
  • 16049
    16049-1051 COVER, MAIN JET
    COVER, MAIN JET
  • 16065
    16065-1180 HOLDER, CARBURETOR
    HOLDER, CARBURETOR
  • 92036
    92036-018 RING, SNAP
    RING, SNAP
  • 92037
    92037-1396 CLAMP, TUBE
    CLAMP, TUBE
  • 92037A
    92037-1401 CLAMP, JET NEEDLE
    CLAMP, JET NEEDLE
  • 92037B
    92037-147 CLAMP, TUBE
    CLAMP, TUBE
  • 92037C
    92037-1486 CLAMP, 55MM
    CLAMP, 55MM
  • 92055
    92055-1167 O-RING, MAIN JET COVER
    O-RING, MAIN JET COVER
  • 92059
    92059-1888 TUBE
    TUBE
  • 92059A
    92059-1898 TUBE, 4X7X480
    TUBE, 4X7X480
  • 92059B
    92059-1899 TUBE, 3.5X6.5X390
    TUBE, 3.5X6.5X390
  • 132
    132G0620 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
  • 223
    223C0416 SCREW, PAN, WS, CROS
    SCREW, PAN, WS, CROS
  • 92063
    92063-1369 JET, MAIN, #162 (OPT)
    JET, MAIN, #162 (OPT)
  • 92063A
    92063-1370 JET, MAIN, #165 (OPT)
    JET, MAIN, #165 (OPT)
  • 92063B
    92063-1371 JET, MAIN, #168
    JET, MAIN, #168
  • 92063C
    92063-1372 JET, MAIN, #170 (OPT)
    JET, MAIN, #170 (OPT)
  • 92063D
    92063-1373 JET, MAIN, #172 (OPT)
    JET, MAIN, #172 (OPT)
  • 92063E
    92063-1375 JET, MAIN, #178 (OPT)
    JET, MAIN, #178 (OPT)
  • 92064
    92064-1130 JET, PILOT, #52 (OPT)
    JET, PILOT, #52 (OPT)
  • 92064A
    92064-1145 JET, PILOT, #55 (OPT)
    JET, PILOT, #55 (OPT)
  • 92064B
    92064-1146 JET, PILOT, #58
    JET, PILOT, #58
  • 92064C
    92064-1147 JET, PILOT, #60 (OPT)
    JET, PILOT, #60 (OPT)
  • 92064D
    92064-1148 JET, PILOT, #62 (OPT)
    JET, PILOT, #62 (OPT)
  • 92081
    92081-1555 SPRING, ADJUST SCREW
    SPRING, ADJUST SCREW
  • 92143
    92143-1201 COLLAR, THROTTLE VALVE
    COLLAR, THROTTLE VALVE
  • 92144
    92144-1494 SPRING, THROTTLE VALVE
    SPRING, THROTTLE VALVE
  • 92170
    92170-1514 CLAMP
    CLAMP
