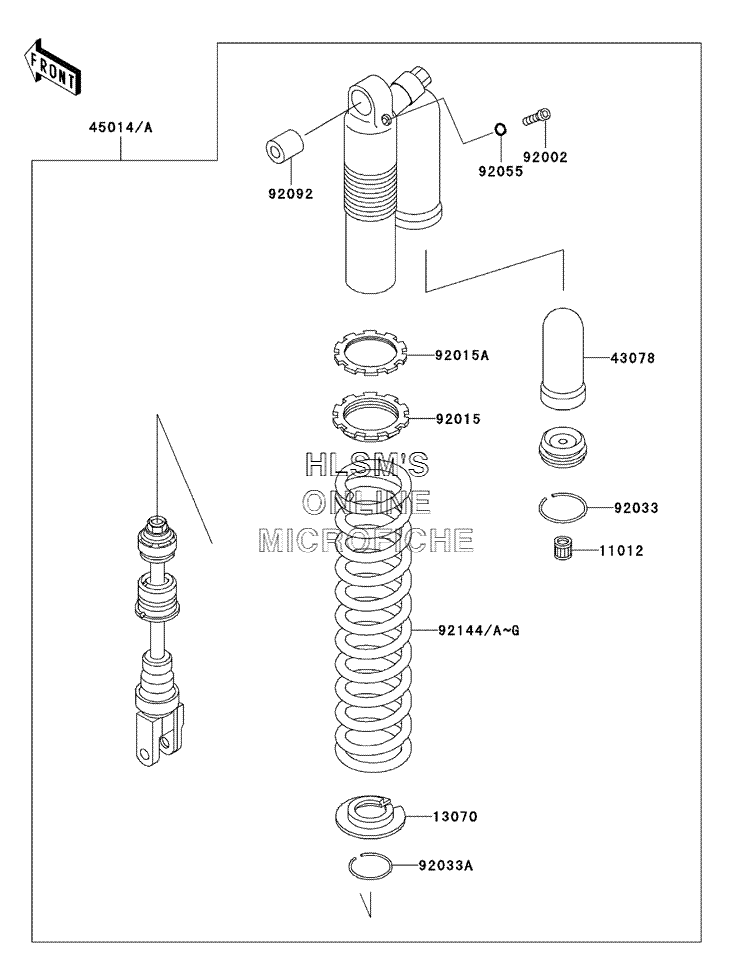

SUSPENSION - SHOCK ABSORBER для Kawasaki KDX 200 - 2004 года выпуска

  • №
    Артикул
    Название
  • 11012
    11012-1391 CAP, VALVE AIR
    CAP, VALVE AIR
  • 13070
    13070-1165 GUIDE, SPRING
    GUIDE, SPRING
  • 43078
    43078-1094 RESERVOIR, SHOCKABSORBER
    RESERVOIR, SHOCKABSORBER
  • 45014
    45014-1596-W1 SHOCKABSORBER (BLUE) NO.1
    SHOCKABSORBER (BLUE) NO.1
  • 92002
    92002-1955 BOLT, DRAIN
    BOLT, DRAIN
  • 92015
    92015-1703 NUT, SPRING ADJUST
    NUT, SPRING ADJUST
  • 92015A
    92015-1704 NUT, SPRING ADJUST LOCK
    NUT, SPRING ADJUST LOCK
  • 92033
    92033-1209 RING, SNAP
    RING, SNAP
  • 92033A
    92033-1228 RING, SNAP, SHOCKABSORBER
    RING, SNAP, SHOCKABSORBER
  • 92055
    92055-1383 O-RING
    O-RING
  • 92092
    92092-1062 BUSHING, RUBBER, SHOCKABSORBER
    BUSHING, RUBBER, SHOCKABSORBER
  • 92144
    92144-1830-W1 SPRING, SHOCKABSORBER, K=5.0, BLU
    SPRING, SHOCKABSORBER, K=5.0, BLU
  • 92144B
    92144-1837-W1 SPRING, SHOCKABSORBER, K=4.8, BLU (OPT)
    SPRING, SHOCKABSORBER, K=4.8, BLU (OPT)
  • 92144D
    92144-1838-W1 SPRING, SHOCKABSORBER, K=5.2, BLU (OPT)
    SPRING, SHOCKABSORBER, K=5.2, BLU (OPT)
  • 92144F
    92144-1839-W1 SPRING, SHOCKABSORBER, K=5.4, BLU (OPT)
    SPRING, SHOCKABSORBER, K=5.4, BLU (OPT)
