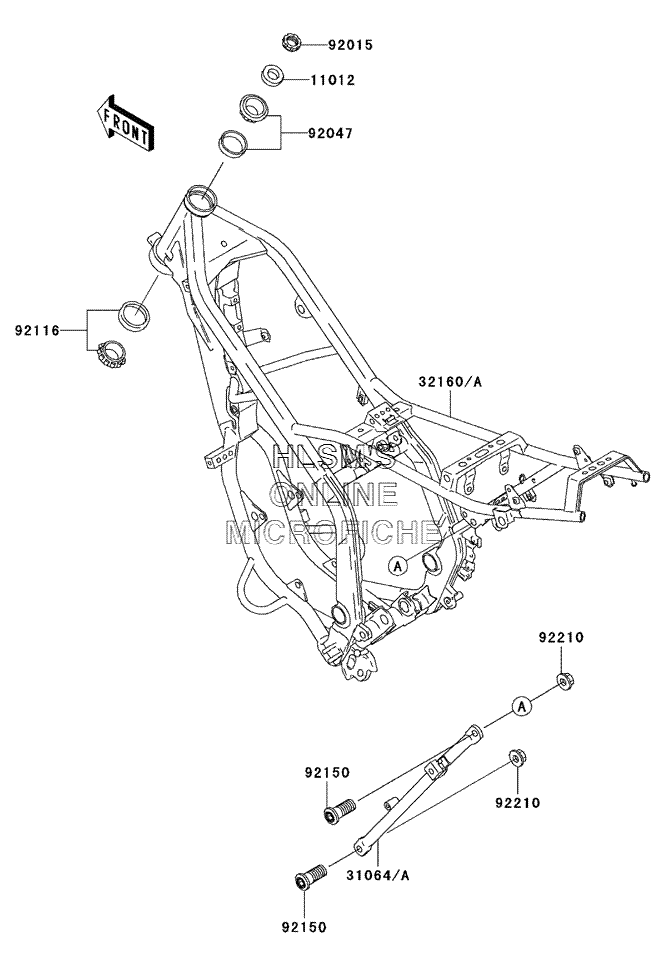

FRAME для Kawasaki KDX 200 - 2004 года выпуска
-
№АртикулНазвание
-
1101211012-1762 CAP, STEERING STEMCAP, STEERING STEM
-
3106431064-1163-GD PIPE, COMP, SUB FRAME (G.GRAY)PIPE, COMP, SUB FRAME (G.GRAY)
-
3216032160-1756-GD FRAME, COMP (G.GRAY)FRAME, COMP (G.GRAY)
-
9201592015-1546 NUT, 25MM, T=12NUT, 25MM, T=12
-
9204792047-017 RACE, ROLLER, 32005JR RSRACE, ROLLER, 32005JR RS
-
9211692116-1069 BEARING, ROLLER, HI, CAP32006JRRSBEARING, ROLLER, HI, CAP32006JRRS
-
9215092150-1221 BOLT, SOCKET, 10X23BOLT, SOCKET, 10X23
-
9221092210-1080 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
