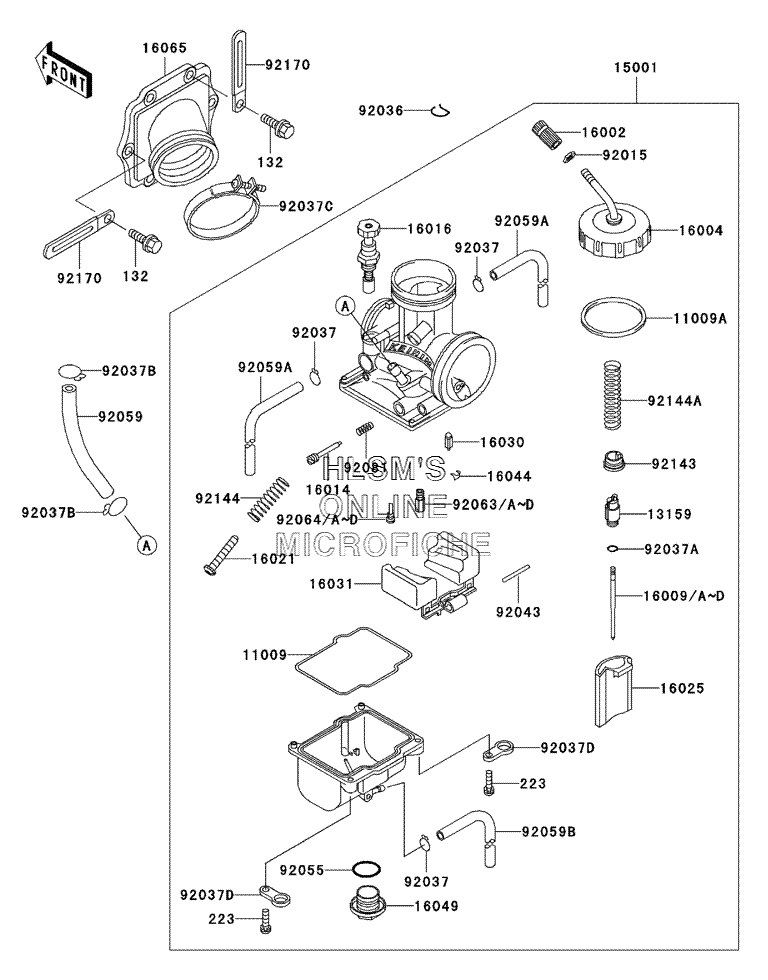

CARBURETOR для Kawasaki KDX 200 - 2004 года выпуска
-
№АртикулНазвание
-
1100911009-1716 GASKET, FLOAT CHAMBERGASKET, FLOAT CHAMBER
-
11009A11009-1717 GASKET, CHAMBER CAPGASKET, CHAMBER CAP
-
1315913159-1063 CONNECTOR, THROTTLE CABLECONNECTOR, THROTTLE CABLE
-
1500115001-1980 CARBURETOR, ASSYCARBURETOR, ASSY
-
1600216002-1057 ADJUSTER, CABLEADJUSTER, CABLE
-
1600416004-1070 CAP, CHAMBERCAP, CHAMBER
-
1600916009-1830 NEEDLE, JET, R1172K/2AFKN (OPT)NEEDLE, JET, R1172K/2AFKN (OPT)
-
16009A16009-1831 NEEDLE, JET, R1173K/2AFKP (OPT)NEEDLE, JET, R1173K/2AFKP (OPT)
-
16009B16009-1832 NEEDLE, JET, R1174K/2AFKQNEEDLE, JET, R1174K/2AFKQ
-
16009C16009-1833 NEEDLE, JET, R1175K/2AFKR (OPT)NEEDLE, JET, R1175K/2AFKR (OPT)
-
16009D16009-1834 NEEDLE, JET, R1176K/2AFKS (OPT)NEEDLE, JET, R1176K/2AFKS (OPT)
-
1601416014-1058 SCREW, PILOT AIRSCREW, PILOT AIR
-
1601616016-1085 PLUNGERPLUNGER
-
1602116021-1161 SCREW, THROTTLE STOPSCREW, THROTTLE STOP
-
1602516025-1172 VALVE, THROTTLE, CA5VALVE, THROTTLE, CA5
-
1603016030-1057 VALVE, FLOATVALVE, FLOAT
-
1603116031-1067 FLOATFLOAT
-
1604416044-007 CLAMP, FLOAT VALVECLAMP, FLOAT VALVE
-
1604916049-1051 COVER, MAIN JETCOVER, MAIN JET
-
1606516065-1298 HOLDER, CARBURETORHOLDER, CARBURETOR
-
9201592015-1772 NUT, CABLE ADJUST LOCKNUT, CABLE ADJUST LOCK
-
9203692036-018 RING, SNAPRING, SNAP
-
9203792037-1396 CLAMP, TUBECLAMP, TUBE
-
92037A92037-1401 CLAMP, JET NEEDLECLAMP, JET NEEDLE
-
92037B92037-147 CLAMP, TUBECLAMP, TUBE
-
92037C92037-1843 CLAMPCLAMP
-
92037D92037-1969 CLAMP, HOSECLAMP, HOSE
-
9204392043-1207 PIN, FLOATPIN, FLOAT
-
9205592055-1167 O-RING, MAIN JET COVERO-RING, MAIN JET COVER
-
9205992059-1888 TUBETUBE
-
92059A92059-1896 TUBE, 4X7X420TUBE, 4X7X420
-
92059B92059-1897 TUBE, 3.5X6.5X330TUBE, 3.5X6.5X330
-
9206392063-1366 JET, MAIN, #155 (OPT)JET, MAIN, #155 (OPT)
-
92063A92063-1367 JET, MAIN, #158 (OPT)JET, MAIN, #158 (OPT)
-
92063B92063-1368 JET, MAIN, #160JET, MAIN, #160
-
132132Y0620 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
223223C0416 SCREW, PAN, WS, CROSSCREW, PAN, WS, CROS
-
92063C92063-1369 JET, MAIN, #162 (OPT)JET, MAIN, #162 (OPT)
-
92063D92063-1370 JET, MAIN, #165 (OPT)JET, MAIN, #165 (OPT)
-
9206492064-1130 JET, PILOT, #52 (OPT)JET, PILOT, #52 (OPT)
-
92064A92064-1141 JET, PILOT, #42 (OPT)JET, PILOT, #42 (OPT)
-
92064B92064-1142 JET, PILOT, #45 (OPT)JET, PILOT, #45 (OPT)
-
92064C92064-1143 JET, PILOT, #48JET, PILOT, #48
-
92064D92064-1144 JET, PILOT, #50 (OPT)JET, PILOT, #50 (OPT)
-
9208192081-1555 SPRING, ADJUST SCREWSPRING, ADJUST SCREW
-
9214392143-1201 COLLAR, THROTTLE VALVECOLLAR, THROTTLE VALVE
-
9214492144-1257 SPRING, THROTTLE STOP SCREWSPRING, THROTTLE STOP SCREW
-
92144A92144-1284 SPRING, THROTTLE VALVESPRING, THROTTLE VALVE
-
9217092170-1514 CLAMPCLAMP
