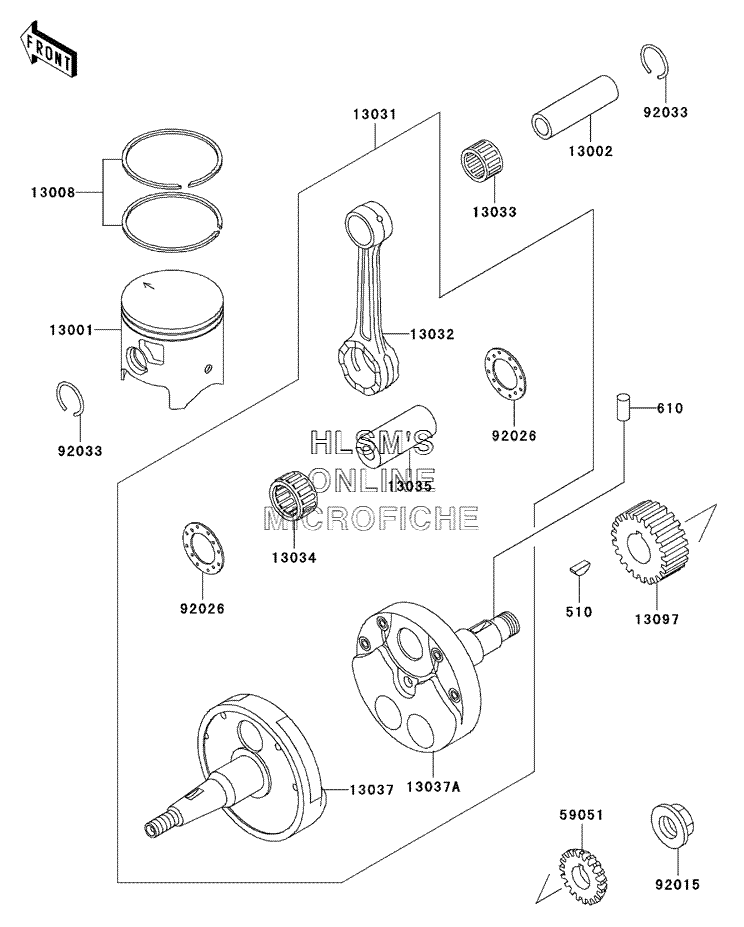

CRANKSHAFT - PISTON(S) для Kawasaki KDX 200 - 2004 года выпуска

  • №
    Артикул
    Название
  • 510
    510A5100 KEY, WOODRUFF
    KEY, WOODRUFF
  • 610
    610A0408 ROLLER, 4X8
    ROLLER, 4X8
  • 13001
    13001-1317 PISTON, ENGINE
    PISTON, ENGINE
  • 13002
    13002-1053 PIN, PISTON
    PIN, PISTON
  • 13008
    13008-1116 RING, SET, PISTON
    RING, SET, PISTON
  • 13031
    13031-1382 CRANKSHAFT, COMP
    CRANKSHAFT, COMP
  • 13032
    13032-1210 ROD, CONNECTING
    ROD, CONNECTING
  • 13033
    13033-1056 BEARING, SMALL END
    BEARING, SMALL END
  • 13034
    13034-1081 BEARING, BIG END, B4
    BEARING, BIG END, B4
  • 13035
    13035-1010 PIN, CRANK
    PIN, CRANK
  • 13037
    13037-1488 CRANKSHAFT (LEFT)
    CRANKSHAFT (LEFT)
  • 13037A
    13037-1490 CRANKSHAFT (RIGHT)
    CRANKSHAFT (RIGHT)
  • 13097
    13097-1320 GEAR, PRIMARY SPUR (22 TEETH)
    GEAR, PRIMARY SPUR (22 TEETH)
  • 59051
    59051-1207 GEAR, SPUR, WATER PUMP
    GEAR, SPUR, WATER PUMP
  • 92015
    92015-1581 NUT, 16MM
    NUT, 16MM
  • 92026
    92026-011 SPACER, 22.5X37X1.0
    SPACER, 22.5X37X1.0
  • 92033
    92033-1242 RING, SNAP, PISTON PIN
    RING, SNAP, PISTON PIN
