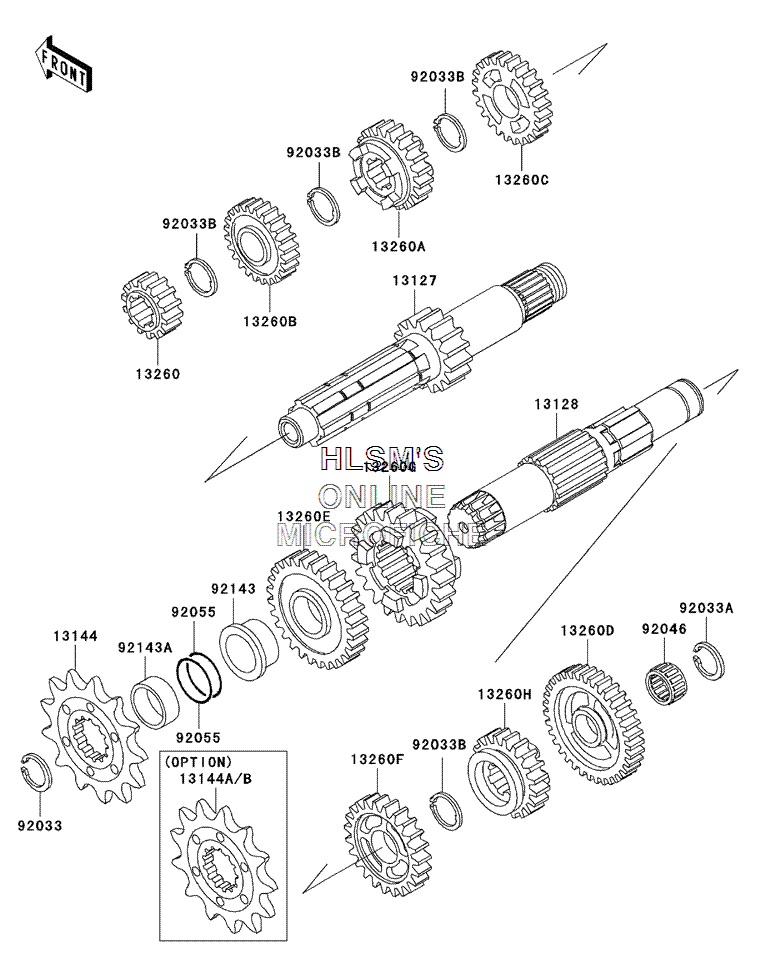

TRANSMISSION для Kawasaki KX 250 - 2002 года выпуска

  • №
    Артикул
    Название
  • 13127
    13127-1267 SHAFT, TRANSMISSION INPUT (15 TEETH)
    SHAFT, TRANSMISSION INPUT (15 TEETH)
  • 13128
    13128-1232 SHAFT, TRANSMISSION OUTPUT
    SHAFT, TRANSMISSION OUTPUT
  • 13144
    13144-1294 SPROCKET, OUTPUT (13 TEETH)
    SPROCKET, OUTPUT (13 TEETH)
  • 13144A
    13144-1295 SPROCKET, OUTPUT (14 TEETH) (OPT)
    SPROCKET, OUTPUT (14 TEETH) (OPT)
  • 13144B
    13144-1296 SPROCKET, OUTPUT (15 TEETH) (OPT)
    SPROCKET, OUTPUT (15 TEETH) (OPT)
  • 13260
    13260-1926 GEAR, INPUT 2ND (17 TEETH)
    GEAR, INPUT 2ND (17 TEETH)
  • 13260A
    13260-1927 GEAR, INPUT 3RD (19 TEETH)
    GEAR, INPUT 3RD (19 TEETH)
  • 13260B
    13260-1928 GEAR, INPUT 4TH (21 TEETH)
    GEAR, INPUT 4TH (21 TEETH)
  • 13260C
    13260-1929 GEAR, INPUT TOP (23 TEETH)
    GEAR, INPUT TOP (23 TEETH)
  • 13260D
    13260-1930 GEAR, OUTPUT LOW (27 TEETH)
    GEAR, OUTPUT LOW (27 TEETH)
  • 13260E
    13260-1931 GEAR, OUTPUT 2ND (25 TEETH)
    GEAR, OUTPUT 2ND (25 TEETH)
  • 13260F
    13260-1932 GEAR, OUTPUT 3RD (23 TEETH)
    GEAR, OUTPUT 3RD (23 TEETH)
  • 13260G
    13260-1933 GEAR, OUTPUT 4TH (21 TEETH)
    GEAR, OUTPUT 4TH (21 TEETH)
  • 13260H
    13260-1934 GEAR, OUTPUT TOP (20 TEETH)
    GEAR, OUTPUT TOP (20 TEETH)
  • 92033
    92033-026 RING, SNAP, 24MM
    RING, SNAP, 24MM
  • 92033A
    92033-029 RING, SNAP, 18MM
    RING, SNAP, 18MM
  • 92033B
    92033-1089 RING, SNAP, 25MM
    RING, SNAP, 25MM
  • 92046
    92046-1170 BEARING, NEEDLE, KT202614
    BEARING, NEEDLE, KT202614
  • 92055
    92055-035 O-RING
    O-RING
  • 92143
    92143-1361 COLLAR
    COLLAR
  • 92143A
    92143-1441 COLLAR, SPROCKET
    COLLAR, SPROCKET
